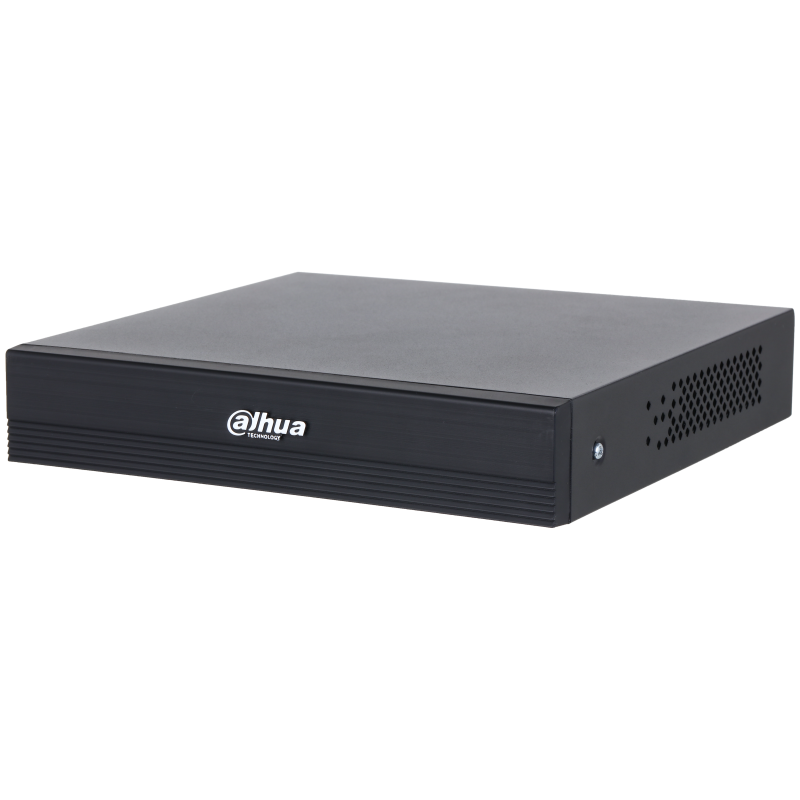

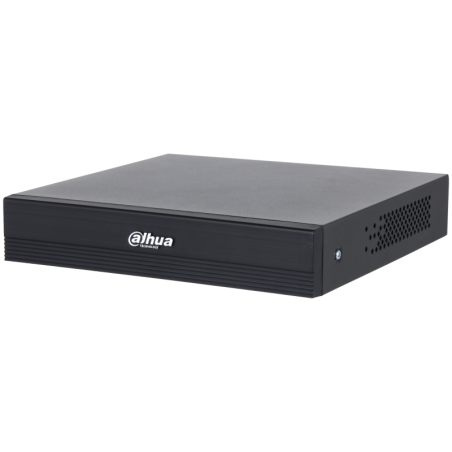

8-channel XVR recorder Dahua XVR1B08H-I/T
€155.04
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | Cooper-I |
| Color | Black |
| Processor | Built-in |
| Operating system | Embedded LINUX |
| Analog camera input | 8 channels, BNC |
| IP camera input | 4+8 channels |
| Supports HDCVI cameras | 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps |
| AHD cameras | 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps |
| TVI cameras | 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps |
| Max. camera resolution | 5 MP |
| Storage | 1 SATA port, up to 16TB |
Video
| Video compression | H.265/H.264 |
| Smart Codec | AI, Smart H.265+/ Smart H.264+ |
| Streaming capability | 2 streams |
| Bandwidth | 64 Mbps incoming |
| Bitrate | 32 kbps–6144 kbps |
| Encoding Capacity | Main stream: 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1fps-12 fps) 5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: D1/CIF@(1 fps–15 fps) |
| Recording mode | Main, motion detection; smart; alarm |
| Recording playback | 1/4/9 |
| Playback features | Instant playback, general playback, event playback, tag playback, smart playback |
| Backup | USB device / network |
Perimeter protection
| AI features | SMD Plus (human/vehicle detection) |
| SMD Plus by camera | 12 channels |
| SMD by recorder | 8 channels |
Smart features
| Motion detection | yes |
| Smart motion detection | yes |
Certification
| Certifications | CE-LVD: IEC 62368-1:2014; CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014; FCC: 47 CFR Part 15, Subpart B |
| Third-party compatible | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
Additional ports
| Audio input | 1-channel RCA, 8-channel BNC (Coaxial Audio) |
| Audio output | 1 (RCA port) |
| Video port | 1 x HDMI, 1 x VGA |
| USB | 2 rear USB 2.0 ports |
| Video port resolution | HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen video output | With IP extension mode off: 1/4/8/9; With IP extension mode on: 1/4/8/9/16 |
| Two-way audio | Yes |
| Audio compression | G.711a; G.711u; PCM |
| Audio sample rate | 8KHz, 16 bit per channel |
| Audio bitrate | 64 Kbps per channel |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Compatibility | ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Web browser live view | Chrome; IE; Safari; Edge; Firefox |
Power supply
| Power supply | 12 VDC, 1.5 A |
| Power consumption | < 7W (without HDD) |
Operating conditions
| Operating temperature | -10°C to +45°C |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Storage temperature | -20°C to +60°C |
Construction
| Dimensions | 197 mm × 204.3 mm × 41.5 mm |
| Net weight | 0.59 kg |
| Gross weight | 1.14 kg |
