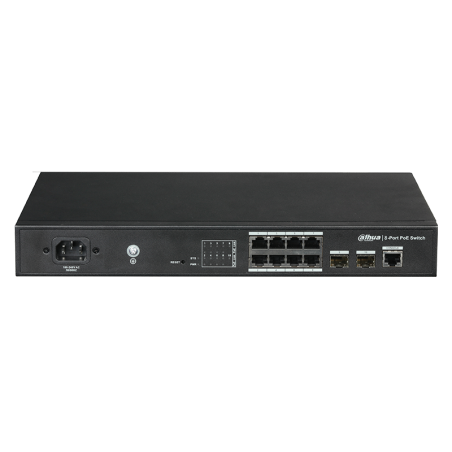

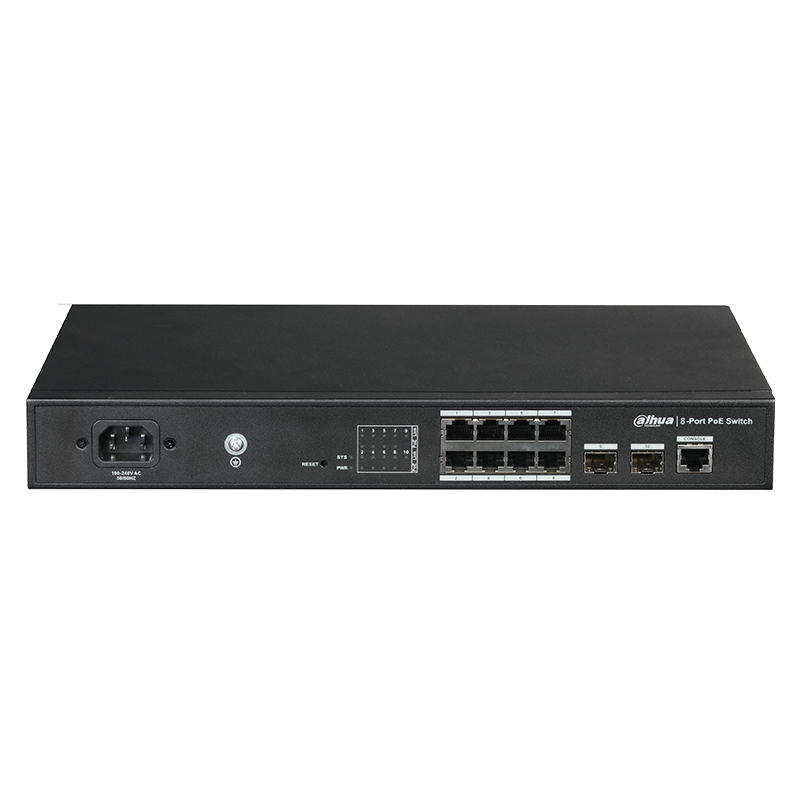

Switch Dahua PFS4210-8GT-150
€289.68
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General specifications
| Managed | yes |
| PoE | yes |
| Number of ports | 8 |
| Mounting type | Communication cabinet or free-standing |
| Usage type | Standard environment |
Detailed specifications
| Ethernet ports | 8*10/100/1000Mbps Base-T (PoE), 2*100/1000Mbps Base-X |
| PoE consumption | All ports up to ≤30W, Total ≤150W |
| PoE pin assignment | 1, 2 (V+), 3, 6 (V-) |
| PoE protocols | IEEE802.3af (PoE), IEEE802.3at (PoE+) |
| Switching capacity | 20Gbps |
| Packet forwarding rate | 14.88Mpps |
| Packet buffer memory | 4Mb |
| MAC table | 8000 |
| Flow control | Half-duplex, Full duplex |
| Power supply | AC100~240V, 50/60Hz |
| Optional second power supply for redundancy | no |
| Operating temperature | 0°C to 45°C |
| Operating humidity | 5% ~ 95% |
| Lightning protection | Common mode 2KV, Differential mode 1KV |
| Weight (net) | 2.5 kg |
| Dimensions (W x L x H) | 340mm x 200mm x 44mm |
Additional features
| System access | User/Password: admin/admin IP address: 192.168.1.110/24 |
| VLAN support | 802.1Q Standard VLAN |
| Spanning Tree protocols | STP,RSTP,MSTP |
| Port aggregation | Static link aggregation, LACP protocol |
| Port mirroring | Many-to-one |
| DHCP support | DHCP server and client, DHCP snooping |
| Security features | User management, SSH, HTTPS, SNMP v1/v2/v3, RMON, ACL, IP source guard, ARP inspection, 802.1x, Loop protection |
| System support | Configuration file upload and download; Package upload updates; System log |
| QoS/Quality of Service | QoS based on CoS/DPL/PCP/DEI; Each port supports up to 8 egress queues; Port sharing; Port marking; DSCP protocol priorities; NTP support |
| Control | WEB (http and https); SNMP V1/V2C/V3; RS232 over RJ45 with console cable, 115.2Kbps, 8,N,1 |
| PoE management | Real-time PoE port consumption; PoE statistics |
