- New

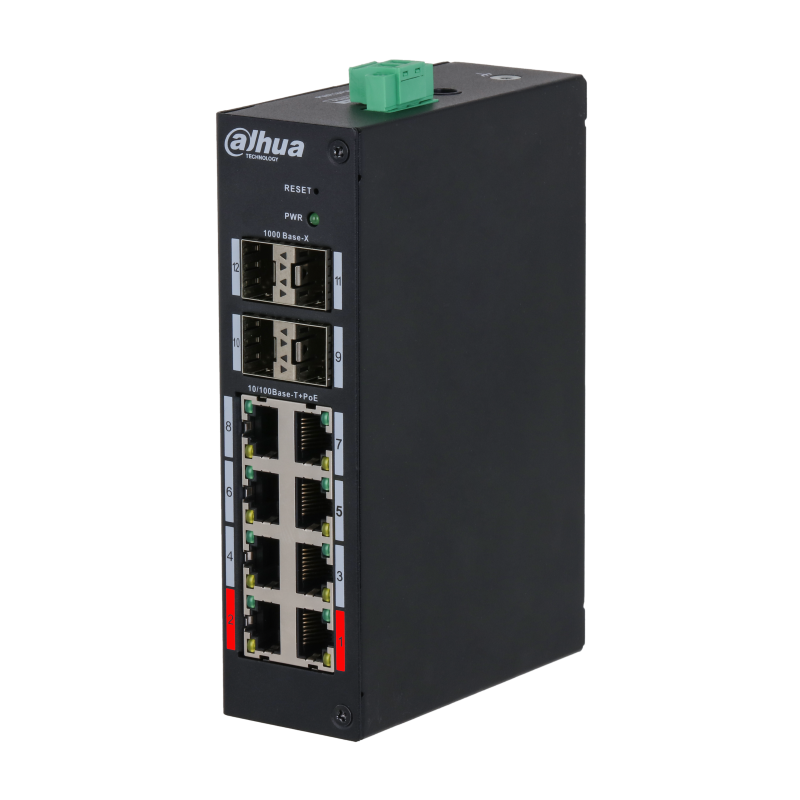

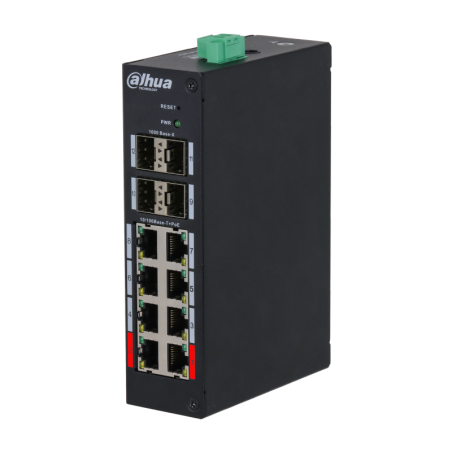

Switch Dahua HS4412-8ET-120
€213.18
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General specifications
| Managed | yes |
| Layer | Layer 2 |
| Gigabit | no |
| PoE | yes |
| Hi-PoE | Ports 1 and 2: 90W (orange ports) |
| Number of ports | 8 |
| Mounting type | DIN rail or free-standing |
| Usage type | With extra protection |
Detailed specifications
| Ethernet ports | 8 × RJ45 10/100Mbps, 4 × SFP 1000Mbps (Uplink) |
| Optical ports | 4*1000 Mbps |
| PoE consumption | Ports 1 and 2 ≤90W, Ports 3 to 8 ≤30W, Total ≤120W |
| PoE pin assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| PoE protocols | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| Compliant with standards | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3az |
| Switching capacity | 9.6G |
| Packet forwarding rate | 7.1424 Mpps |
| Packet buffer memory | 4.1Mb |
| MAC table | 8000 |
| Flow control | Supports IEEE802.3X-based flow control |
| Power supply | DC 48~57V |
| Operating temperature | -30°C ~ 65°C |
| Operating humidity | 10% ~ 95% (non-condensing) |
| Electrostatic protection | Air discharge - 8KV; Contact discharge - 6KV |
| Lightning protection | Common mode 4KV, Differential mode 2KV |
| Dimensions (W x L x H) | 152.9mm × 110.4mm × 42mm |
Additional features
| VLAN support | Yes |
| Spanning Tree protocols | STP/RSTP/ERPS |
| Port aggregation | Link aggregation |
| DHCP support | DHCP client |
| PoE management | Power consumption management |
