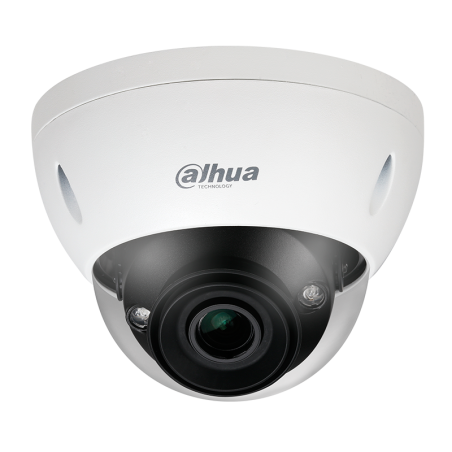

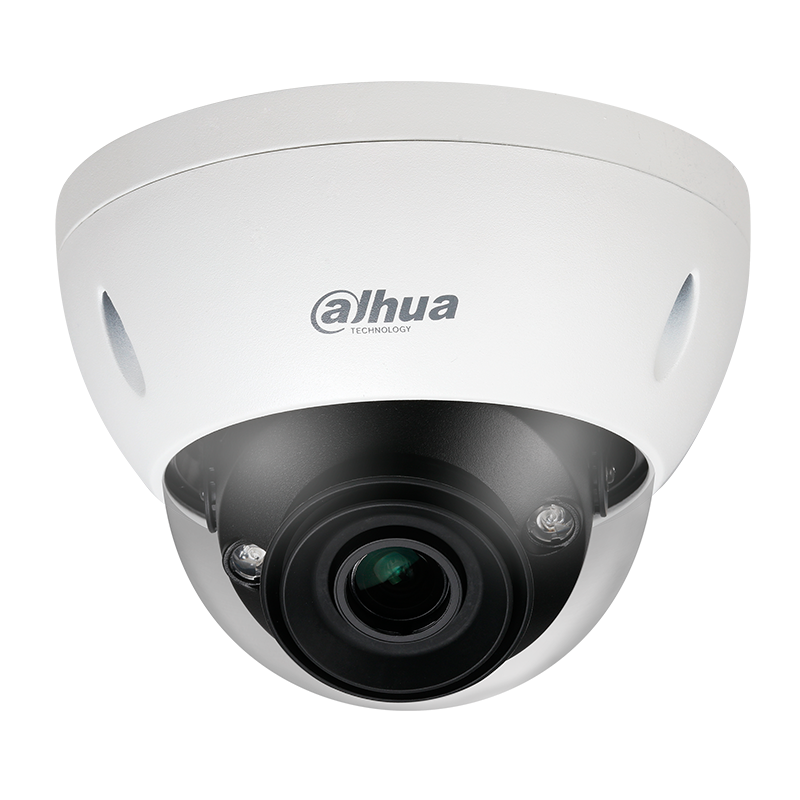

IP camera Dahua IPC-HDBW5541E-ZE-27135

Name: IP camera Dahua IPC-HDBW5541E-ZE-27135
Brand: Dahua
SKU: BIT-1720021
Price: 445.74 EUR
Availability: InStock

€445.74

Tax included

Quantity

Last items in stock

Secure payments

SSL-secured connection, cash on delivery payment.

Fast delivery

Delivery nationwide – arranged after the order.

Returns

14-day right of withdrawal under consumer protection law.

Description
Product Details

General

Type	Dome
Series	WizMind
Color	White
Image sensor	1/2.7” 5 Megapixel Progressive CMOS
RAM/ROM	1 GB/128 MB
Resolution	5M (2592×1944)
Effective pixels	5
Scanning system	Progressive
Electronic shutter speed	Auto/ Manual 1/3 s–1/100000 s
Minimum illumination	0.005Lux@F1.5
Day/night modes	Yes
IR illumination up to	40
IR On/Off Control	Manual/Auto
IR LEDs	3
Storage	FTP; Micro SD card (up to 256 GB); NAS; SFTP

Camera

Housing movement

0°-355° (pan); 0°-65° (tilt); 0°-355° (rotation)

Lens

Lens	Varifocal
Focal length	2.7 mm to 13.5 mm
Zoom	16x digital
Mounting type	Built-in
Max. aperture	F1.5
Field of view	100°–28° (H) (2592 × 1944); 104°–29° (H) (2688 × 1520)
Minimum focus distance	0.8 m

Video

Frames per second	20 fps@2592 × 1944, 50/60 fps@1080P (1920 × 1080)
Recording	Main stream: 2592 × 1944 (1 fps–20 fps); 2560 × 1440 (1 fps–25/30 fps); 1920 × 1080 (1 fps–50/60 fps); Sub stream: D1 (1 fps–20/30 fps); D1 (1 fps–50 fps); Third stream: 1080P (1 fps–17 fps)
Video compression	H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart Codec	Smart H.265+/ Smart H.264+
Streaming capability	3 streams
Bitrate	H.264: 32 Kbps–8192 Kbps; H.265: 19 Kbps–8192 Kbps
Bitrate control	CBR/VBR
BLC	BLC / HLC / WDR (120dB)
WDR	120dB
White balance	Auto/natural/street light/outdoor/manual
Gain Control	Auto / manual
Noise reduction	3D DNR
Smart illumination	Yes
Image rotation	0°/90°/180°/270°
Mirror image	On/off
Privacy masks	On/off (4 zones, rectangle)
Region of interest	yes
Electronic image stabilization	yes
Optical defog	yes
Low-light visibility technology	Starlight

Perimeter protection

Performance	Line crossing; Intrusion (human and vehicle); Loitering and fast moving detection; parking detection in a defined perimeter and crowd gathering;
AI features	SMD Plus (human/vehicle detection), Heat map, Abandoned/missing object, Intrusion, Line crossing, Face detection, People counting, Defog (electronic fog removal)

Metadata

Face

Supports 6 facial attributes: age, gender, expression (happy, surprised, calm, angry, sad, disgusted, confused, scared), glasses, face mask, mustache and beard

Smart features

Motion detection	yes
Intelligent video surveillance	Line crossing; Intrusion
Advanced smart features	Face recognition; Detection of areas with the longest people dwell time (Heat Map)
People counting	Supports line crossing; Queue people counting; 4 independent access zones; 4 independently counted zones
Trigger events	Motion detection, tampering, scene change, network disconnection, IP address conflict, illegal access, storage anomaly

Certification

Certifications

CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Additional ports

Audio compression	G.711a, G.711Mu, G.726, AAC, G.723
SD card	yes
SD card capacity	Micro SD up to 256 GB

Network features

Mobile app	Android, iOS
Compatible accessories	PFA138, PFA101, PFB210W, PFA152-E, PFB201C, PFB300C

Power supply

Power supply	DC 12V (±30%), AC 24V (±30%), PoE (802.3af) (Class 0)
Power consumption	< 12.4W

Operating conditions

Operating temperature	-30°C to +60°C
Operating humidity	< 95% RH
Storage temperature	-30°C to +60°C
Protection rating	IP67
Vandal resistance rating	IK10
