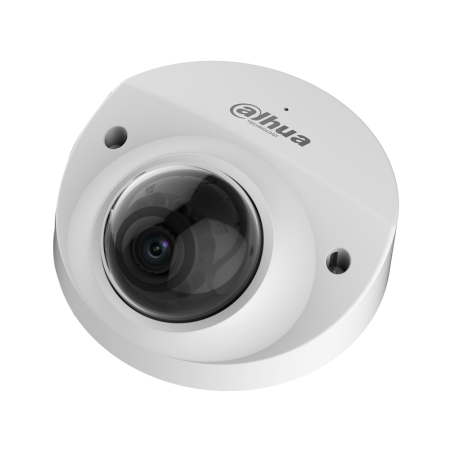

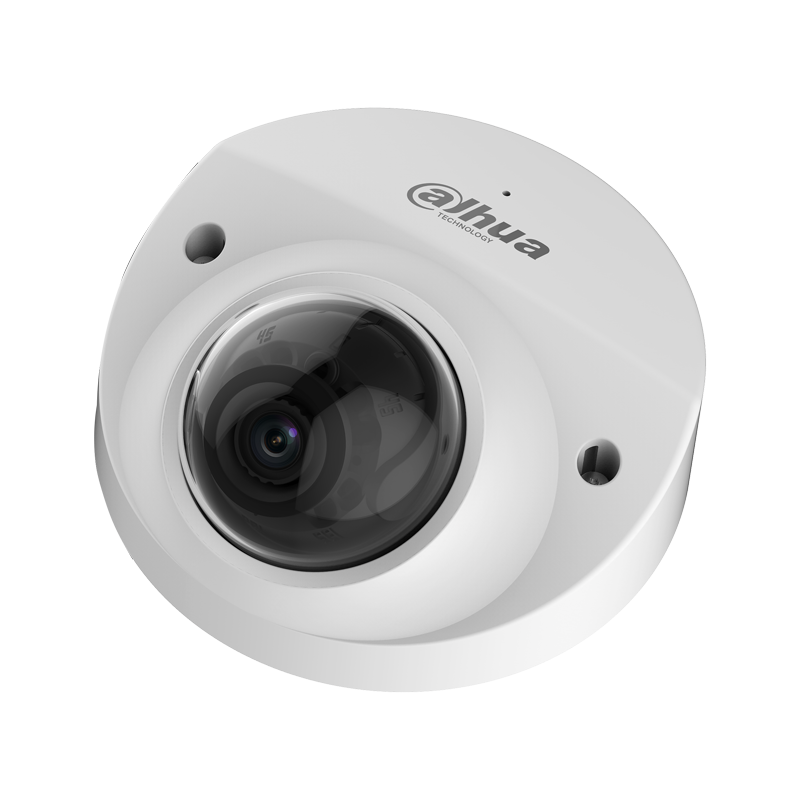

IP camera Dahua IPC-HDBW3541F-AS-M-DAE-0280B

€220.32
Tax included
Quantity

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

TypeDome
SeriesWizSense
ColorWhite
Image sensor1/2.7” 5 Megapixel Progressive CMOS
RAM/ROM512 MB/128 MB
Resolution5M (2592 × 1944)
Effective pixels5
Scanning systemProgressive
Electronic shutter speedAuto/ Manual 1/3 s–1/100000 s
Minimum illumination0.005 Lux@F1.6 (Color, 30IRE) 0.0005 Lux@F1.6 (B/W, 30IRE) 0 Lux (Illuminator on)
Day/night modesAuto (ICR) / Color / B&W
IR illumination up to30
IR On/Off ControlManual/Auto
IR LEDs8
StorageFTP; Micro SD card (up to 256 GB); NAS; SFTP

Camera

IRE30, 0Lux IR on
Signal-to-noise ratio> 56dB
Housing movementPan: -30°–30°; Tilt: 0°–80°; Rotation: 0° to 360°

Lens

LensFixed
Focal length2.8 mm
Mounting typeM12
Max. apertureF1.6
Field of view98° (H)
Iris TypeFixed aperture
Minimum focus distance0.9 m

Video

Frames per secondMain stream (2592 × 1944@1–20 fps) (2688 × 1520@1–25/30 fps) sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps) third stream (1280 × 720@1–25/30 fps)
Video compressionH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart CodecSmart H.265+/ Smart H.264+
Streaming capability3 streams
Bandwidth64 Mbps incoming
BitrateH.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps
Bitrate controlCBR/VBR
BLCBLC / HLC / WDR / SSA
WDR120dB
White balanceAuto/natural/street light/outdoor/manual/custom
Gain ControlAuto / manual
Scene Self-adaptationYes
Noise reduction3D DNR
Smart illuminationYes
Image rotation0°/90°/180°/270° (90°/270° supported at 1080p resolution or lower)
Mirror imageYes
Privacy masksOn/off (4 zones, rectangle)
Region of interestyes
Low-light visibility technologyStarlight

Perimeter protection

PerformanceLine crossing, intrusion (both functions support classification and accurate detection of vehicles and humans)
AI (Artificial Intelligence) searchSmart search – works together with Smart NVR for more specialized search
AI featuresIntrusion, Perimeter protection, Privacy masking, ROI (Region of interest), SMD Plus (human/vehicle detection), Line crossing

Smart features

Motion detectionyes
Intelligent video surveillanceLine crossing, Intrusion
Smart motion detectionyes
Alarm signalNo SD card; SD card full; SD card error; SD card service life low; Network disconnection; IP conflict; Illegal access; Voltage detection; Security exceptions; Motion detection; Video tampering; Scene ch

Certification

CertificationsCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Additional ports

Audio compressionG.711a; G.711Mu; G726
Built-in microphoneyes
SD cardyes
SD card capacityMicro SD up to 256 GB

Network features

Ethernet1 RJ-45 Ports (10/100 Mbps)
Mobile appAndroid, iOS
Network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
CompatibilityONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
Max. number of users20
Web browser live viewChrome; IE9 or later; Firefox
Management softwareSmart PSS, DSS, DMSS
Compatible accessoriesPFA139, PFB204W, PFA152-E, PFA106, PFB220C

Power supply

Power supply12V DC/PoE (802.3af)
Power consumption< 5.7 W

Operating conditions

Operating temperature-40°C to +60°C
Operating humidity< 95% RH
Storage temperature-40°C to +60°C
Protection ratingIP67
Vandal resistance ratingIK10

Construction

MaterialMetal
DimensionsØ108.9 mm × 55 mm
Net weight0.38 kg
Gross weight0.52 kg
Dahua
BIT-1720081_1
4 Items

Specific References

ean13
6939554923579
