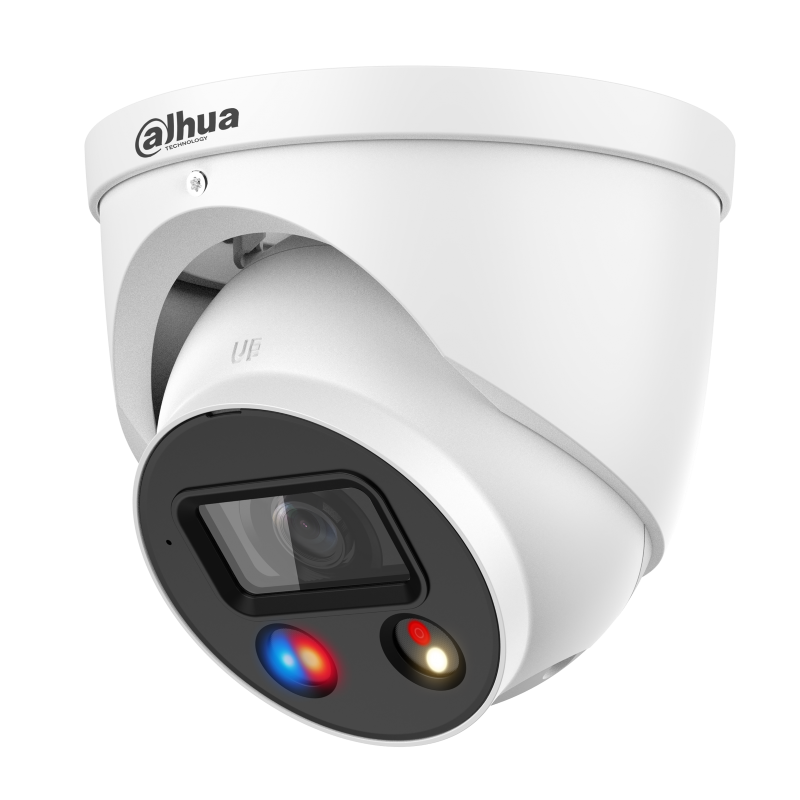

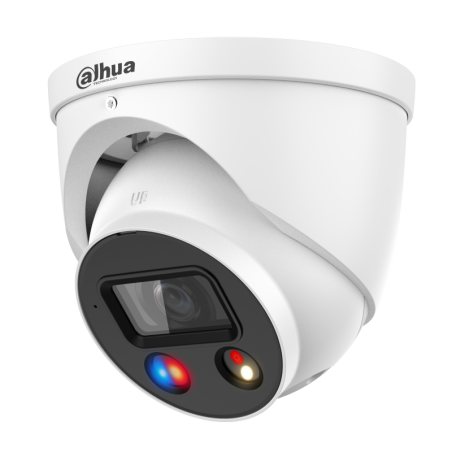

IP camera Dahua IPC-HDW3549H-AS-PV-0280B-S5

€343.74
Tax included
Quantity
Out of stock

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

TypeEyeball
SeriesWizSense
ColorWhite
Image sensor1/2.7” 5 Megapixel Progressive CMOS
RAM/ROM1 GB/256 MB
Resolution5M (2960 × 1688)
Effective pixels5
Scanning systemProgressive
Electronic shutter speedAuto/ Manual 1/3 s–1/100000 s
Minimum illumination0.003 lux@F1.0 (Color, 30 IRE) 0.0003 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on)
Day/night modesAuto (ICR) / Color / B&W
IR illumination up to30
IR On/Off ControlManual/Auto
IR LEDs1
Fill light (white light) distance up to3 m
Fill light on/offAuto/manual
Number of fill LED lights1
StorageFTP; Micro SD card (up to 256 GB); NAS; SFTP

Camera

IRE30, 0Lux IR on
Signal-to-noise ratio> 56dB
Housing movement0° - 360° (pan), 0° - 78° (tilt) and 0° - 360° (rotation)

Lens

LensFixed
Focal length2.8 mm
Mounting typeM12
Max. apertureF1.0
Field of view97° (H)
Iris TypeFixed aperture
Minimum focus distance1.5 m

Video

Frames per secondMain stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps)
Video compressionH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart CodecAI H.265; AI H.264, Smart H.265+/ Smart H.264+
Streaming capability3 streams
Bandwidth64 Mbps incoming
BitrateH.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps
Bitrate controlCBR/VBR
BLCBLC / HLC / WDR / SSA
WDR120dB
White balanceAuto/natural/street light/outdoor/manual/custom
Gain ControlAuto
Scene Self-adaptationYes
Noise reduction3D NR
Smart illuminationYes
Image rotation0°/90°/180°/270° (90°/270° supported at 2688 × 1520 resolution or lower)
Mirror imageYes
Privacy masks4 zones
Region of interestyes
Software defogyes

Perimeter protection

AI featuresAcuPick, Defog (electronic fog removal), Intrusion, Perimeter protection, Privacy masking, ROI (Region of interest), Smart Dual Illuminators, TiOC (red and blue light alarm), Line crossing, SMD Plus (human/vehicle detection)

Smart features

Motion detectionyes
Smart motion detectionyes
Alarm signalNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; audio detection; voltage detection; SMD; off

Certification

CertificationsCE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B

Additional ports

Audio input1 (RCA port)
Audio output1 (RCA port)
Alarm input1 input: 5mA 3V–5V DC
Alarm output1 output: 300mA 12V DC
Audio compressionPCM; G.711a; G.711Mu; G.726; G.723
Built-in microphoneyes
Built-in speakeryes
SD cardyes
SD card capacityMicro SD up to 256 GB

Network features

Ethernet1 RJ-45 Ports (10/100 Mbps)
Mobile appAndroid, iOS
Network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
CompatibilityONVIF (Profile S; Profile G;Profile T); CGI
Max. number of users20
Web browser live viewChrome; IE9 or later; Firefox
Management softwareSmart PSS Lite; DSS; DMSS
Compatible accessoriesPFA137, PFB205W-E, PFA109, PFA152-E, PFB220C

Power supply

Power supply12V DC/PoE
Power consumptionMax. 8.3 W (12 VDC); 8.8 W (PoE)

Operating conditions

Operating temperature-40°C to +60°C
Operating humidity< 95% RH
Protection ratingIP67

Construction

MaterialMetal
DimensionsØ122.0 mm × 110.9 mm
Net weight0.75 kg
Gross weight0.92 kg
Dahua
BIT-1720080_6

Specific References

ean13
6923172526069
