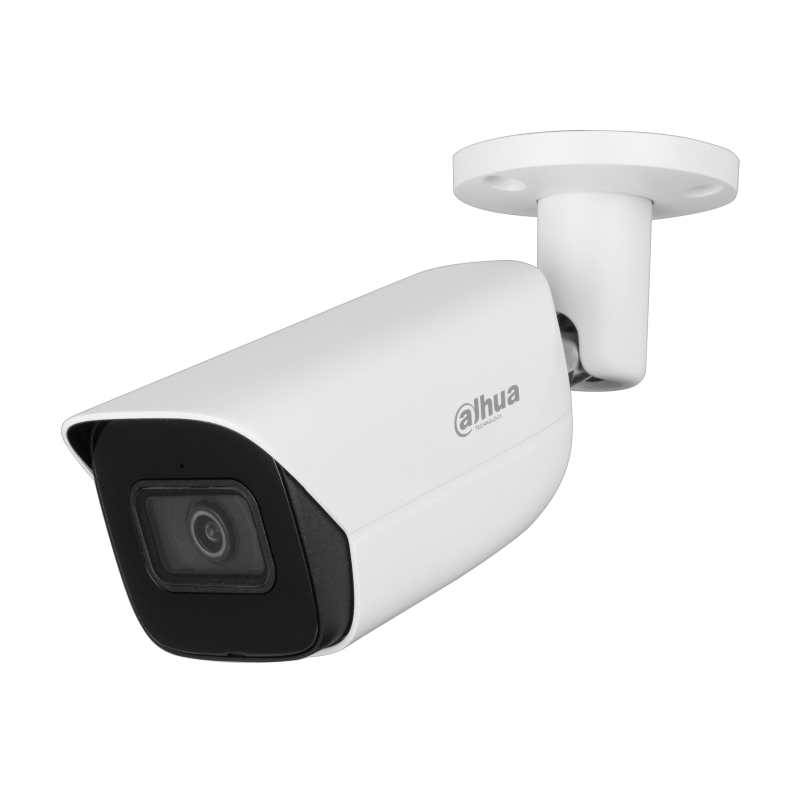

IP camera Dahua IPC-HFW5541E-ASE-0360B-S3
€252.96
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Bullet |
| Series | WizMind |
| Color | White |
| Image sensor | 1/2.7” 5 Megapixel Progressive CMOS |
| RAM/ROM | 1 GB/4 GB |
| Resolution | 5M (2960 × 1668) |
| Effective pixels | 5 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.0009 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 50 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 1 |
| Storage | FTP; SFTP; Micro SD card (512 GB); NAS |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 56dB |
| Housing movement | 0° - 360° (pan), 0° - 90° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 3.6 mm |
| Mounting type | M12 |
| Max. aperture | F1.6 |
| Field of view | 92° (H) |
| Iris Type | Fixed aperture |
| Minimum focus distance | 1.7 m |
Video
| Frames per second | Main stream: 2960 × 1668@(1–25/30 fps) Sub stream: D@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | AI H.265; AI H.264, Smart H.265+/ Smart H.264+ |
| Streaming capability | 4 streams |
| Bandwidth | 80 Mbps incoming |
| Bitrate | H.264: 32 kbps–16384 kbps H.265: 12 kbps–11776 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR / SSA |
| WDR | 120dB |
| White balance | Auto/natural/street light/outdoor/manual/custom |
| Gain Control | Auto |
| Scene Self-adaptation | Yes |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Image rotation | 0°/90°/180°/270° (90°/270° supported at 2688 × 1520 resolution or lower) |
| Mirror image | Yes |
| Privacy masks | 8 zones |
| Region of interest | yes |
| Software defog | yes |
Perimeter protection
| Performance | Line crossing, intrusion, fast moving through zone (all three functions support classification and accurate detection of vehicles and humans); loitering detection, crowd gathering and parking detection in a defined perimeter. |
| AI (Artificial Intelligence) search | Smart search – works together with Smart NVR for more specialized search |
| AI features | Abandoned/missing object, Quick Pick, Defog (electronic fog removal), Face detection, Heat map, Intrusion, Metadata, People counting, Perimeter protection, Privacy masking, ROI (Region of interest), Smart Sound Detection, SMD Plus (human/vehicle detection), Line crossing |
Metadata
| Face | Gender, age, expression, glasses, face mask and beard. |
| Motor vehicle | Vehicle model, color, logo, plate color, decorations, seat belt, phone call |
| Human body | Gender, top/bottom type and color, bag, hat and umbrella |
| Non-motor vehicle | Type, color, number of people, top type and color, hat. |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing; Intrusion; Abandoned/missing objects |
| Smart motion detection | yes |
| Advanced smart features | Face detection, People counting, Heat map |
| Alarm signal | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; fast moving; abandoned object; missing object; detection |
Certification
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
Additional ports
| Audio input | 1 (RCA port) |
| Audio output | 1 (RCA port) |
| Alarm input | 1 input: 5mA 3V–5V DC |
| Alarm output | 1 output: 300mA 12V DC |
| Audio compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Built-in microphone | yes |
| SD card | yes |
| SD card capacity | Micro SD up to 512 GB |
Network features
| Ethernet | Pv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Mobile app | Android, iOS |
| Network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Compatibility | ONVIF (Profile S/Profile G/Profile T); CGI |
| Max. number of users | 20 |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Management software | SmartPSS Lite; DSS; DMSS |
| Compatible accessories | PFA130-E, PFA152-E |
Power supply
| Power supply | 12 VDC/PoE (802.3af)/ePoE |
| Power consumption | Max. 6.2 W (12 VDC); 8.3 W (PoE) |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
Construction
| Material | Metal |
| Dimensions | 192.7 mm x 70.5 mm x 66.4 mm |
| Net weight | 0.59 kg |
| Gross weight | 0.78 kg |
