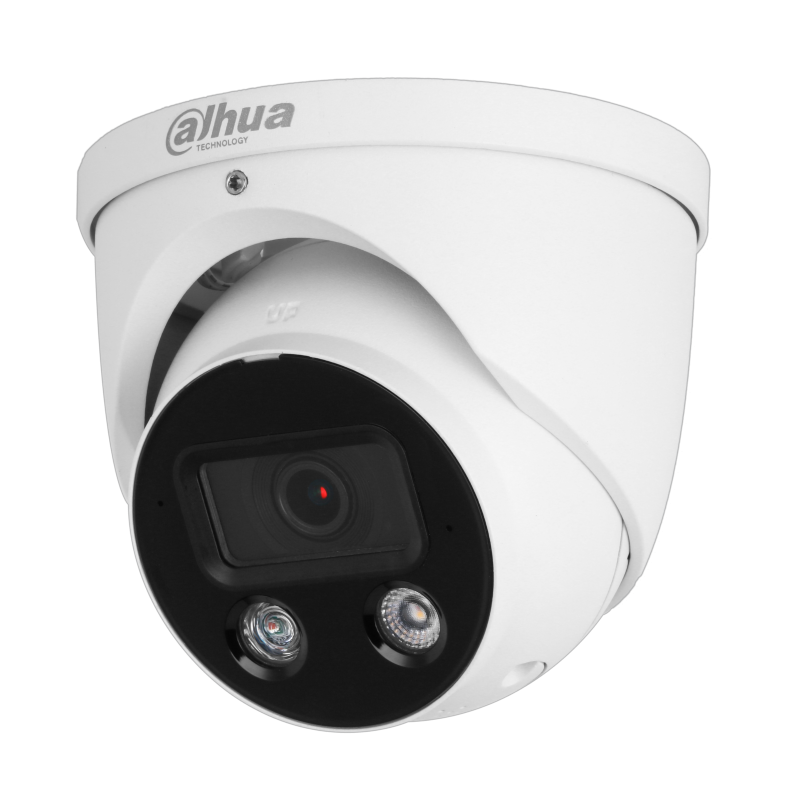

IP camera Dahua IPC-HDW3549H-AS-PV-0280B-S4

Name: IP camera Dahua IPC-HDW3549H-AS-PV-0280B-S4
Brand: Dahua
SKU: BIT-1720080_4
Price: 273.36 EUR
Availability: InStock

€273.36

Tax included

Quantity

Last items in stock

Secure payments

SSL-secured connection, cash on delivery payment.

Fast delivery

Delivery nationwide – arranged after the order.

Returns

14-day right of withdrawal under consumer protection law.

Description
Product Details

General

Type	Eyeball
Series	WizSense
Color	White
Image sensor	1/2.7” 5 Megapixel Progressive CMOS
RAM/ROM	512 MB/128 MB
Resolution	5M (2960 × 1668)
Effective pixels	5
Scanning system	Progressive
Electronic shutter speed	Auto/ Manual 1/3 s–1/100000 s
Minimum illumination	0.003 lux@F1.0 (Color, 30 IRE) 0.0003 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on)
Day/night modes	Auto (ICR) / Color / B&W
IR illumination up to	30
IR On/Off Control	Manual/Auto
IR LEDs	1
Fill light (white light) distance up to	30 m
Fill light on/off	Auto/manual
Number of fill LED lights	1
Storage	FTP; Micro SD card (up to 256 GB); NAS; SFTP

Camera

IRE	30, 0Lux IR on
Signal-to-noise ratio	> 56dB
Housing movement	0°-360° (pan); 0°-78° (tilt); 0°-360° (rotation)

Lens

Lens	Fixed
Focal length	2.8 mm
Mounting type	M12
Max. aperture	F1.0
Field of view	97° (H)
Iris Type	Fixed aperture
Minimum focus distance	1.5 m

Video

Frames per second	Main stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps)
Video compression	H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart Codec	AI H.265; AI H.264, Smart H.265+/ Smart H.264+
Streaming capability	3 streams
Bandwidth	72 Mbps incoming
Bitrate	H.264: 32kbps–8192 kbps H.265:12kbps–8192 kbps
Bitrate control	CBR/VBR
BLC	BLC / HLC / WDR
WDR	120dB
White balance	Auto/natural/street light/outdoor/manual/custom
Gain Control	Auto / manual
Scene Self-adaptation	Yes
Noise reduction	3D NR
Smart illumination	Yes
Image rotation	0°/90°/180°/270° (90°/270° supported at 2688 × 1520 resolution or lower)
Mirror image	Yes
Privacy masks	8 zones
Region of interest	yes
Software defog	yes

Perimeter protection

Performance	Line crossing; intrusion (supports classification and accurate detection of vehicles and humans)
AI (Artificial Intelligence) search	Smart search – works together with Smart NVR for more specialized search
AI features	Quick Pick, Defog (electronic fog removal), Intrusion, Perimeter protection, Privacy masking, ROI (Region of interest), Smart Dual Illuminators, SMD Plus (human/vehicle detection), TiOC (red and blue light alarm), Line crossing

Smart features

Motion detection	yes
Intelligent video surveillance	Line crossing; Intrusion
Smart motion detection	yes
Alarm signal	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; audio detection; voltage detection; SMD; off

Certification

Certifications

CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Additional ports

Audio input	1 (RCA port)
Audio output	1 (RCA port)
Alarm input	1 input: 5mA 3V–5V DC
Alarm output	1 output: 300mA 12V DC
Audio compression	PCM; G.711a; G.711Mu; G.726; G.723
Built-in microphone	yes
Built-in speaker	yes
SD card	yes
SD card capacity	Micro SD up to 256 GB

Network features

Ethernet	1 RJ-45 Ports (10/100 Mbps)
Mobile app	Android, iOS
Network protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Compatibility	ONVIF (Profile S;Profile G;Profile T); CGI
Max. number of users	20
Web browser live view	Chrome; IE9 or later; Firefox
Management software	Smart PSS, DSS, DMSS
Compatible accessories	PFA137, PFB205W-E, PFA109, PFA152-E, PFB220C
