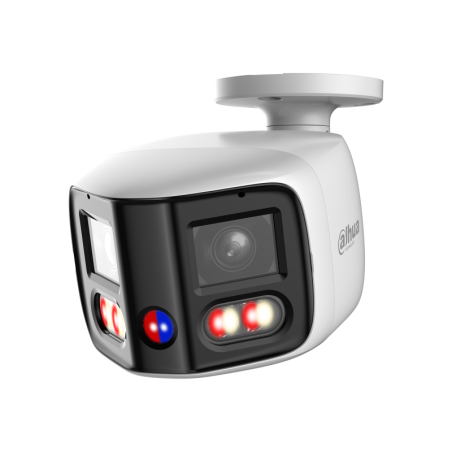

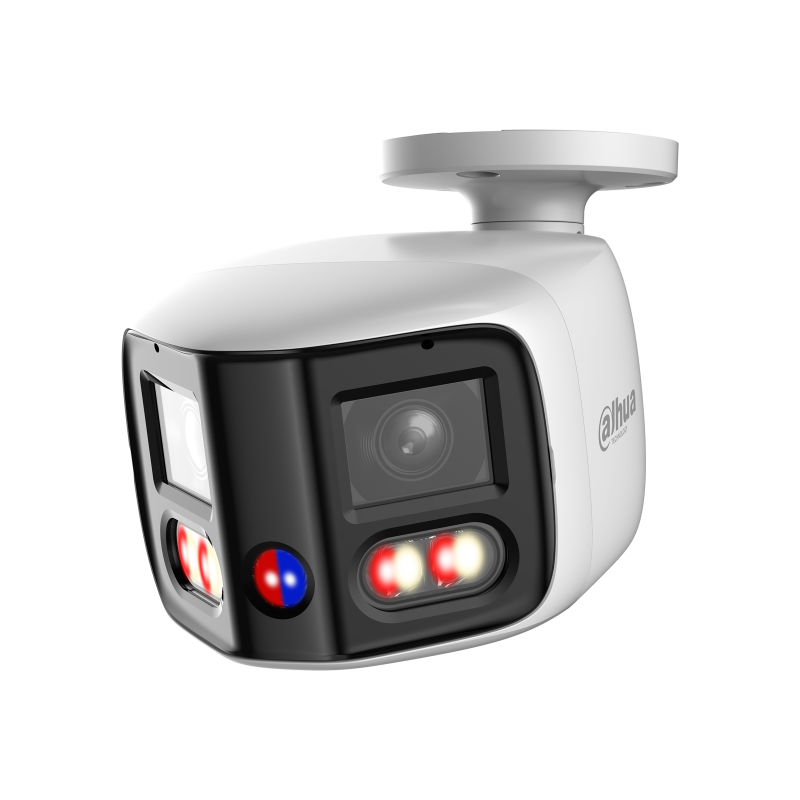

IP camera Dahua IPC-PFW3859S-A180-E2-AS-PV-0280B

€369.24
Tax included
Quantity
Out of stock

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

TypeBullet
SeriesWizSense
ColorWhite
Image sensor2 x 1/2.7" 4 Megapixels Progressive CMOS
RAM/ROM1 GB/256 MB
Resolution4K (4320 × 1944)
Effective pixels8
Scanning systemProgressive
Electronic shutter speedAuto/ Manual 1/3 s–1/100000 s
Minimum illumination0.003 lux@F1.4 (Color, 30 IRE) 0.0003 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on)
Day/night modesAuto (ICR) / Color / B&W
IR illumination up to30
IR On/Off ControlManual/Auto
IR LEDs4
Fill light (white light) distance up to30 m
Fill light on/offAuto/manual
Number of fill LED lights4
StorageFTP; SFTP; Micro SD card (512 GB); NAS

Camera

IRE30, 0Lux IR on
Signal-to-noise ratio> 56dB
Housing movement0° - 360° (pan), -20° - 90° (tilt) and 0° - 360° (rotation)

Lens

LensFixed
Focal length2.8 mm
Mounting typeM12
Max. apertureF1.4
Field of view180° (H)
Focus controlFixed
Minimum focus distance0.8 m

Video

Frames per secondMain stream: 4320 × 1944@(1–20 fps) Sub stream: 1200 × 536@(1–20 fps) Third stream: 1920 × 860@(1–20 fps)
Video compressionH.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)
Smart CodecAI H.265; AI H.264
Streaming capability2 streams
Bandwidth64 Mbps incoming
BitrateH.264: 6 kbps–16384 kbps; H.265: 6 kbps–16384 kbps
Bitrate controlCBR/VBR/ABR
BLCBLC / HLC / WDR / SSA
WDR120dB
White balanceAuto/natural/street light/outdoor/manual/custom
Gain ControlAuto / manual
Scene Self-adaptationYes
Noise reduction3D NR
Smart illuminationYes
Privacy masks8 zones
Region of interestyes
Software defogyes

Perimeter protection

AI featuresSmart Dual Illuminators, Privacy masking, ROI (Region of interest), Intrusion, Line crossing, Perimeter protection, SMD Plus (human/vehicle detection), AcuPick, Face detection, Scene Changing, TiOC (red and blue light alarm)

Smart features

Motion detectionyes
Intelligent video surveillanceLine crossing, Intrusion
Smart motion detectionyes
Alarm signalNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; loitering detection; parking detection; recognition

Certification

CertificationsCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Additional ports

Audio input1 (RCA port)
Audio output1 (RCA port)
Alarm input1 input: wet contact, 5 mA 3–5 VDC or dry contact
Alarm output1 output: dry contact 1000mA 30V DC/500mA 50V AC
Audio compressionPCM; G.711a; G.711Mu; G.726; G.723
Built-in microphoneyes
Built-in speakeryes
SD cardyes
SD card capacityMicro SD up to 512 GB

Network features

Ethernet1 RJ-45 Ports (10/100 Mbps)
Mobile appAndroid, iOS
Network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration
CompatibilityONVIF (Profile S & Profile G & Profile T & Profile M); CGI
Max. number of users20
Web browser live viewChrome; IE9 or later; Firefox
Management softwareSmart PSS Lite; DSS; DMSS; DoLynk Care
Compatible accessoriesG3416GW, PFA130-E, PFA151

Power supply

Power supply12 VDC (±30%); PoE+ (802.3at)
Power consumptionMax. 13.3 W (12 VDC); 16.1 W (PoE)

Operating conditions

Operating temperature-40°C to +60°C
Operating humidity< 95% RH (non-condensing)
Storage temperature-40°C to +60°C
Protection ratingIP67

Construction

MaterialMetal
Dimensions183.1 mm × 99.0 mm × 78.0 mm
Net weight0.695 kg
Gross weight0.87 kg
