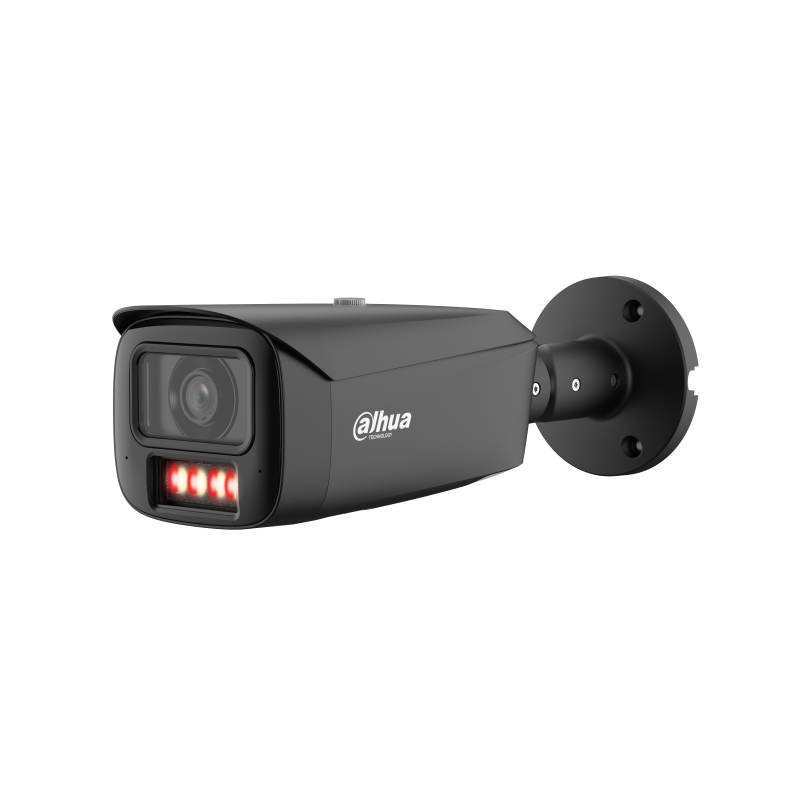

IP camera Dahua IPC-HFW5659T1-ASE-PV-0360B-PRO - black
€516.12
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Bullet |
| Series | WizMind |
| Color | Black |
| Image sensor | 1/1.8” 6 Megapixel Progressive CMOS |
| RAM/ROM | 2 GB/4 GB |
| Resolution | 6M (3072 × 2048) |
| Effective pixels | 6 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.0002 lux@F1.0 (Color, 30 IRE) 0.0001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 80 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 4 |
| Fill light (white light) distance up to | 60 m |
| Fill light on/off | Auto/manual |
| Number of fill LED lights | 4 |
| Storage | FTP; SFTP; Micro SD card (1 TB); NAS |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 56dB |
| Housing movement | 0° - 360° (pan), 0° - 90° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 3.6 mm |
| Mounting type | M12 |
| Max. aperture | F1.0 |
| Field of view | 93° (H) |
| Focus control | Fixed |
| Minimum focus distance | 4.4 m |
Video
| Frames per second | Main stream: 3072 × 2048@(1 fps–25/30 fps) Sub stream: 704 × 576@(1 fps –25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Fourth stream: 1280 × 720@(1 fps–25/30 fps) |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | AI H.265; AI H.264 |
| Streaming capability | 4 streams |
| Bandwidth | 80 Mbps incoming |
| Bitrate | H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR / SSA |
| WDR | 130dB |
| White balance | Auto/natural/street light/outdoor/manual/custom |
| Gain Control | Auto / manual |
| Scene Self-adaptation | Yes |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Image rotation | 0°/90°/180°/270° (90°/270° supported at 2688 × 1520 resolution or lower) |
| Mirror image | Yes |
| Privacy masks | 4 mosaics + 8 color sectors |
| Region of interest | yes |
| Software defog | yes |
| Low-light visibility technology | WizColor |
Perimeter protection
| AI features | Defog (electronic fog removal), ROI (Region of interest), Smart Dual Illuminators, Privacy masking, Intrusion, Line crossing, Perimeter protection, SMD Plus (human/vehicle detection), Parking space detection, AcuPick, Face detection, People counting, Heat map, Metadata |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing, Intrusion |
| Smart motion detection | yes |
| Alarm signal | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; fast moving; loitering detection; people gathering; detection |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
Additional ports
| Audio input | 1 (RCA port) |
| Audio output | 1 (RCA port) |
| Alarm input | 1 channel: wet contact, 5 mA 3–5 VDC |
| Alarm output | 1 output: 1000mA 30V DC/500mA 50V DC |
| RS485 | 1 |
| Two-way audio | Yes |
| Audio compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Built-in microphone | yes |
| Built-in speaker | yes |
| SD card | yes |
| SD card capacity | Micro SD up to 1 TB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Compatibility | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| Max. number of users | 20 |
| Web browser live view | Chrome; IE11; Firefox |
| Management software | DSS; DMSS; DoLynk Care |
| Compatible accessories | G3416GW, PFA130-E, PFA135, PFA152-E, PFA151 |
Power supply
| Power supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Power consumption | Max. 21.6 W (12 VDC); 24.2 W (PoE) |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
| Vandal resistance rating | IK10 |
Construction
| Material | Metal + plastic |
| Dimensions | 288.4 mm × 94.4 mm × 84.7 mm |
| Net weight | 1.09 kg |
| Gross weight | 1.39 kg |
