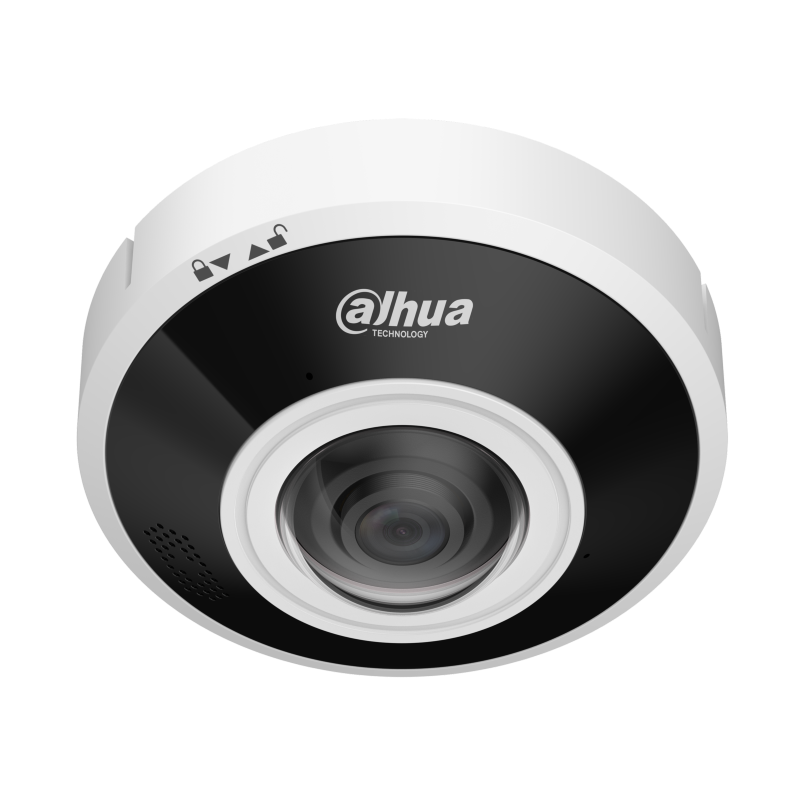

IP camera Dahua IPC-EBW5641-AS
€335.58
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Fisheye |
| Series | WizMind |
| Color | Black, White |
| Image sensor | 1/2.5” 6 Megapixel Progressive CMOS |
| RAM/ROM | 1 GB/4 GB |
| Resolution | 6M (2560 × 2560) |
| Effective pixels | 6 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 15 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 3 |
| Storage | FTP; SFTP; Micro SD card (512 GB); NAS |
Lens
| Lens | Fixed |
| Focal length | 1.68 mm |
| Mounting type | M12 |
| Max. aperture | F2.0 |
| Field of view | 185° (H) |
| Iris Type | Fixed aperture |
| Minimum focus distance | 0.3 m |
Video
| Frames per second | Max Resolution in O Mode by Default Main stream: 2560 × 2560@(1–25/30 fps) sub stream: 1440 × 1440@(1–25/30 fps) third stream: 1440 × 1440@(1–25/30 fps) Resolution of 2 Split Windows in 2P Mode: Sub stream: Panoramic View and Split Window: 1920 × 14 |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | AI H.265; AI H.264, Smart H.265+/ Smart H.264+ |
| Streaming capability | 3 streams |
| Bitrate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
| Bitrate control | CBR/VBR/ABR |
| BLC | BLC / HLC / WDR / SSA |
| WDR | 120dB |
| White balance | Auto/natural/street light/outdoor/manual/custom |
| Gain Control | Auto / manual |
| Scene Self-adaptation | Yes |
| Noise reduction | 3D NR |
| Image rotation | 0° / 180° |
| Mirror image | Yes |
| Privacy masks | 4 mosaics + 4 color sectors |
| Region of interest | yes |
Perimeter protection
| AI features | E-PTZ, Heat map, Intrusion, People counting, Perimeter protection, Privacy masking, ROI (Region of interest), Line crossing |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing, Intrusion |
| Alarm signal | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene change; line crossing; intrusion; audio detection; intensity change; |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
Additional ports
| Audio input | 1 (RCA port) |
| Audio output | 1 (RCA port) |
| Alarm input | 1 input: 5mA 3V–5V DC |
| Alarm output | 1 output: 300mA 12V DC |
| RS485 | 1 |
| Two-way audio | Yes |
| Audio compression | PCM; G.711a; G.711Mu; G.726 |
| Built-in microphone | yes |
| Built-in speaker | yes |
| SD card | yes |
| SD card capacity | Micro SD up to 512 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Compatibility | ONVIF (Profile S & Profile G & Profile T); CGI |
| Max. number of users | 20 |
| Web browser live view | Chrome; IE11; Firefox |
| Management software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Compatible accessories | PFB2204W, PFA137, PFA109, PFA150; PFB220C |
Power supply
| Power supply | 12 VDC, 1 A; PoE (802.3af) |
| Power consumption | Max. 8.1 W (12 VDC), 10.1 W (PoE) |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -30°C to +60°C |
| Protection rating | IP67 |
| Vandal resistance rating | IK10 |
Construction
| Material | Metal + plastic |
| Dimensions | Ø122 mm x 53.3 mm |
| Net weight | 0.46 kg |
| Gross weight | 0.75 kg |
