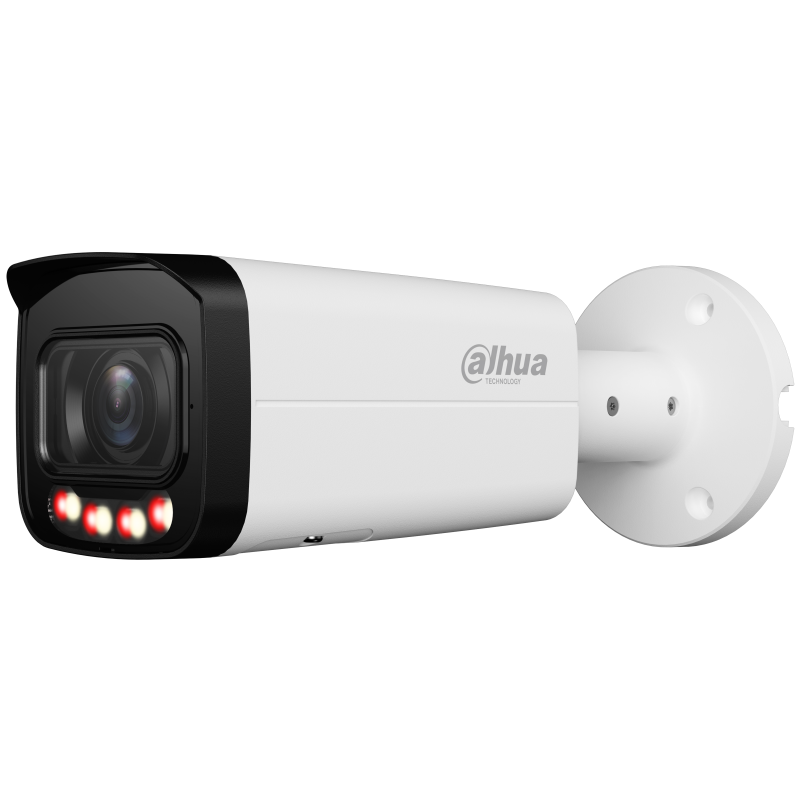

IP camera Dahua IPC-HFW2649T-ZAS-IL-27135

€286.62
Tax included
Quantity

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

TypeBullet
SeriesWizSense
ColorWhite
Image sensor1/2.7” 6 Megapixel Progressive CMOS
RAM/ROM256 MB/128 MB
Resolution6M (3288 × 1850)
Effective pixels6
Scanning systemProgressive
Electronic shutter speedAuto/ Manual 1/3 s–1/100000 s
Minimum illumination0.007 lux@F1.5 (Color, 30 IRE) 0.0007 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on)
Day/night modesAuto (ICR) / Color / B&W
IR illumination up to60
IR On/Off ControlManual/Auto
IR LEDs4
Fill light (white light) distance up to60 m
Fill light on/offAuto/manual
Number of fill LED lights4
StorageFTP; Micro SD card (up to 256 GB); NAS; SFTP

Camera

IRE30, 0Lux IR on
Signal-to-noise ratio> 56dB
Housing movement0° - 360° (pan), 0° - 90° (tilt) and 0° - 360° (rotation)

Lens

LensVarifocal
Focal length2.7 mm to 13.5 mm
Mounting typeØ14
Max. apertureF1.5
Field of view114° - 32°(H)
Iris TypeFixed aperture
Minimum focus distance0.8 m

Video

Frames per secondMain stream: 3288 × 1850@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Video compressionH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart CodecSmart H.265+/ Smart H.264+
Streaming capability2 streams
Bandwidth48 Mbps incoming
BitrateH.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps
Bitrate controlCBR/VBR
BLCBLC / HLC / WDR
WDR120dB
White balanceAuto/natural/street light/outdoor/manual/custom
Gain ControlAuto / manual
Noise reduction3D NR
Smart illuminationYes
Image rotation0°/90°/180°/270° (90°/270° supported at 2688 × 1520 resolution or lower)
Mirror imageYes
Privacy masks4 zones
Region of interestyes

Perimeter protection

AI featuresIntrusion, Perimeter protection, Privacy masking, ROI (Region of interest), Smart Dual Illuminators, SMD Plus (human/vehicle detection), Line crossing

Smart features

Motion detectionyes
Intelligent video surveillanceLine crossing; Intrusion
Smart motion detectionyes
Alarm signalNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; audio detection; voltage detection; SMD; off

Certification

CertificationsCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Additional ports

Audio input1 (RCA port)
Audio output1 (RCA port)
Alarm input1 input: 5mA 3V–5V DC
Alarm output1 output: 300mA 12V DC
Audio compressionG.711a; G.711Mu; G.726; PCM
Built-in microphoneyes
SD cardno

Network features

Ethernet1 RJ-45 Ports (10/100 Mbps)
Mobile appAndroid, iOS
Network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P
CompatibilityONVIF (Profile S & Profile G & Profile T); CGI
Max. number of users20
Web browser live viewChrome; IE9 or later; Firefox
Management softwareSmart PSS Lite; DSS; DMSS; DoLynk Care
Compatible accessoriesG3416GW, PFA130-E, PFA135, PFA152-E, PFA151

Power supply

Power supply12 VDC/PoE
Power consumptionMax. 10.2 W (12 VDC), 12.7 W (PoE)

Operating conditions

Operating temperature-30°C to +60°C
Operating humidity< 95% RH (non-condensing)
Storage temperature-30°C to +60°C
Protection ratingIP67
Vandal resistance ratingIK10

Construction

MaterialMetal
Dimensions238.5 mm × 90.7 mm × 90.7 mm
Net weight0.76 kg
Gross weight0.95 kg
Dahua
BIT-1720059_3
5 Items

Specific References

ean13
6939554902390
