- Out of stock

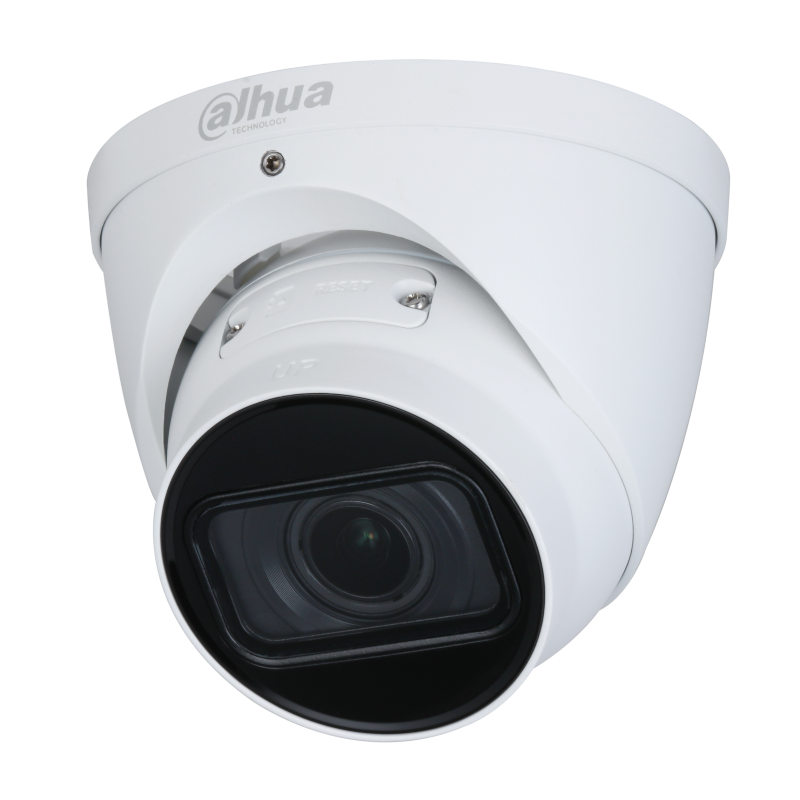

IP camera Dahua IPC-HDW1431T-ZS-2812-S4
€174.42
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Eyeball |
| Series | Entry |
| Color | White |
| Image sensor | 1/3” 4 Megapixel progressive CMOS |
| RAM/ROM | 128 MB/128 MB |
| Resolution | 4M (2688 × 1520) |
| Effective pixels | 4 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.03 Lux @ F1.7 |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 50 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 2 |
| Storage | FTP; Micro SD card (up to 256 GB); NAS; SFTP |
Camera
| Signal-to-noise ratio | > 56dB |
| Housing movement | 0° - 355° (pan), 0° - 78° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Varifocal |
| Focal length | 2.8 mm to 12 mm |
| Mounting type | Ø14 |
| Max. aperture | F1.7 |
| Field of view | 98° - 31°(H) |
| Focus control | Fixed |
| Minimum focus distance | 0.8 m |
Video
| Frames per second | Main Stream: 2688 × 1520 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) Sub Stream: 704 × 576 (1 fps–20/25 fps) 704 × 480 (1 fps–20/30 fps) |
| Video compression | H.265; H.264; H.264B; MJPEG (sub stream only) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 2 streams |
| Bitrate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR |
| WDR | 120dB |
| White balance | Auto/natural/street light/outdoor/manual/custom |
| Gain Control | Auto / manual |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Image rotation | 0°/90°/180°/270° (90°/270° supported at 2688 × 1520 resolution or lower) |
| Mirror image | Yes |
| Privacy masks | 4 zones |
| Region of interest | yes |
Perimeter protection
| AI features | ROI (Region of interest), Privacy masking |
Smart features
| Motion detection | yes |
| Alarm signal | Network disconnection; IP conflict; motion detection; video tampering; illegal access; voltage detection; security exception; defocus detection |
Certification
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
Additional ports
| SD card | yes |
| SD card capacity | Micro SD up to 256 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
| Compatibility | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| Max. number of users | 20 |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Management software | Smart PSS, DSS, DMSS |
| Compatible accessories | PFA136, PFA130-E, PFB203W, PFA106, PFB220C, PFA152-E |
Power supply
| Power supply | 12V DC/PoE (802.3af) |
| Power consumption | < 6.9W |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH |
| Protection rating | IP67 |
Construction
| Material | Metal + plastic |
| Dimensions | Ø122 mm × 108.3 mm |
| Net weight | 0.69 kg |
| Gross weight | 0.87 kg |
