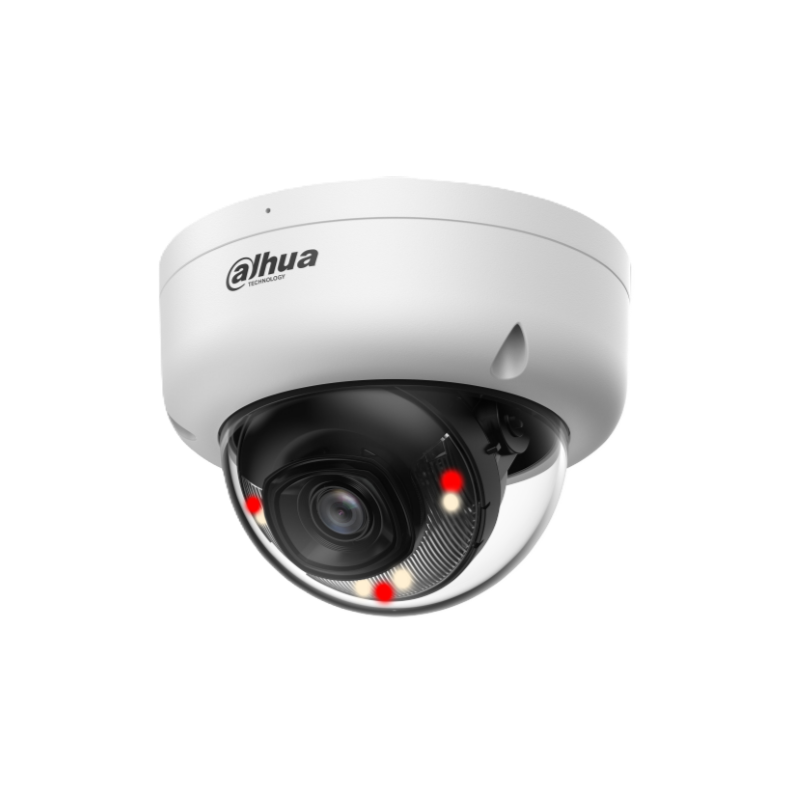

IP camera Dahua IPC-HDBW1239E1-A-IL-0280B-S6
€74.46
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Dome |
| Series | Entry |
| Color | White |
| Image sensor | 1/2.8” 2 Megapixel CMOS |
| RAM/ROM | 128 MB/128 MB |
| Resolution | 1080p (1920 × 1080) |
| Effective pixels | 2 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 30 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 3 |
| Fill light (white light) distance up to | 30 m |
| Fill light on/off | Auto/manual |
| Number of fill LED lights | 4 |
| Storage | FTP |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 56dB |
| Housing movement | 0° - 355° (pan); 0° - 65° (tilt); 0° - 355° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 2.8 mm |
| Mounting type | M16 |
| Max. aperture | F1.6 |
| Field of view | 104.5° (H) |
| Iris Type | Fixed aperture |
| Minimum focus distance | 0.7 m |
Video
| Frames per second | Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 2 streams |
| Bandwidth | 24 Mbps incoming |
| Bitrate | H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR |
| WDR | DWDR |
| White balance | Auto/natural/street light/outdoor/manual/custom |
| Gain Control | Auto / manual |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Image rotation | 0°/90°/180°/270° (90°/270° supported at 1920 × 1080 resolution or lower) |
| Mirror image | Yes |
| Privacy masks | 4 zones |
Perimeter protection
| AI features | Privacy masking, Smart Dual Illuminators, SMD (human detection) |
Smart features
| Motion detection | yes |
| Smart motion detection | yes |
| Alarm signal | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception |
Certification
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
Additional ports
| Audio compression | G.711a; G.711Mu; PCM; G.726 |
| Built-in microphone | yes |
| SD card | no |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P; Auto Registration |
| Compatibility | ONVIF (Profile S & Profile T); CGI |
| Max. number of users | 6 |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Management software | Smart PSS Lite; DSS; DMSS |
| Compatible accessories | PFA109, PFA136, PFA150, PFA151, PFA156, PFB203W, PFB220C, PFB305W |
Power supply
| Power supply | 12 VDC (±30%); PoE (802.3af) |
| Power consumption | Max. 6.8 W (12 VDC); 7.9 W (PoE) |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
| Vandal resistance rating | IK08 |
Construction
| Material | Metal + plastic |
| Dimensions | Ø109.9 mm x 81 mm |
| Net weight | 0.33 kg |
| Gross weight | 0.48 kg |
