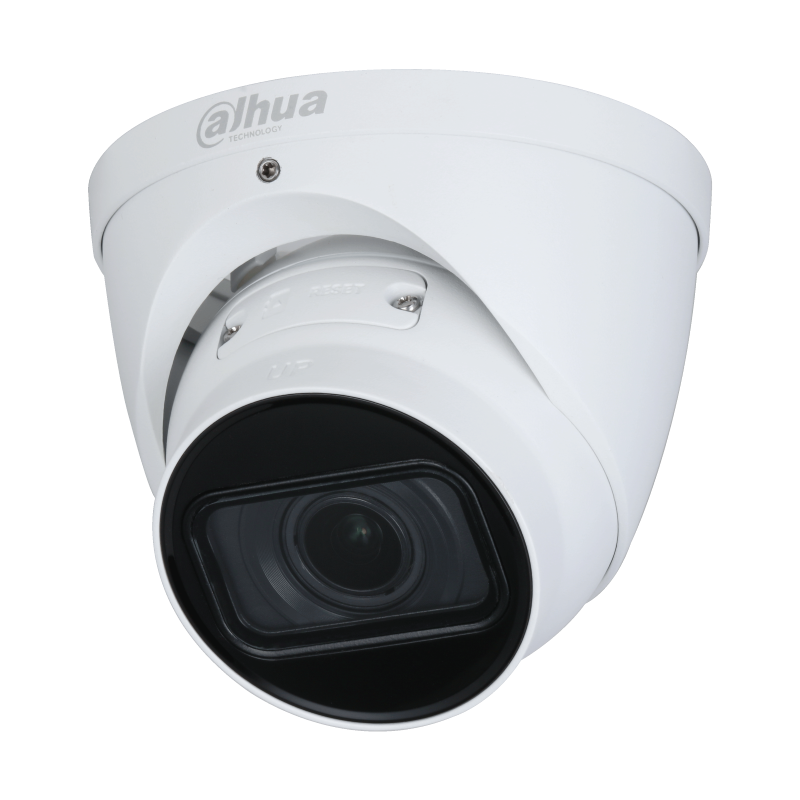

IP camera Dahua IPC-HDW1230T-ZS-2812-S5

€139.74
Tax included
Quantity
Last items in stock

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

TypeEyeball
SeriesEntry
ColorWhite
Image sensor1/2.8” 2 Megapixel Progressive CMOS
RAM/ROM128 MB/16 MB
Resolution1080p (1920 × 1080)
Effective pixels2
Scanning systemProgressive
Electronic shutter speedAuto/ Manual 1/3 s–1/100000 s
Minimum illumination0.005 Lux@F1.5 (Color, 30 IRE) 0.0005 Lux@F1.5 (B/W, 30 IRE) 0 Lux (Illuminator on)
Day/night modesAuto (ICR) / Color / B&W
IR illumination up to40
IR On/Off ControlManual/Auto
IR LEDs2
StorageFTP; Micro SD card (256G)

Camera

Signal-to-noise ratio> 56dB
Housing movement0° - 355° (pan), 0° - 78° (tilt) and 0° - 360° (rotation)

Lens

LensVarifocal
Focal length2.8 mm to 12 mm
Mounting typeØ14
Max. apertureF1.5
Field of view101°–33.5° (H)
Iris TypeFixed aperture
Minimum focus distance1.2 m

Video

Frames per secondMain stream:1920 × 1080@1–25/30 fps Sub stream: 704 × 576@1–25 fps/704 × 480@1–30 fps
Video compressionH.265; H.264; H.264B; MJPEG (sub stream only)
Smart CodecSmart H.265+/ Smart H.264+
Streaming capability2 streams
BitrateH.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Bitrate controlCBR/VBR
BLCBLC / HLC / WDR
WDRDWDR
White balanceAuto/natural/street light/outdoor/manual/custom
Gain ControlAuto / manual
Noise reduction3D NR
Smart illuminationYes
Image rotation0°/90°/180°/270° (supported at 1080p resolution or lower)
Mirror imageYes
Privacy masks4 zones
Region of interestyes

Perimeter protection

AI featuresPrivacy masking, ROI (Region of interest)

Smart features

Alarm signalNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception; defocus detection

Certification

CertificationsCE-LVD: EN60950-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Additional ports

SD cardyes
SD card capacityMicro SD up to 256 GB

Network features

Ethernet1 RJ-45 Ports (10/100 Mbps)
Mobile appAndroid, iOS
Network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; DDNS
CompatibilityONVIF (Profile S/Profile T); CGI; P2P; Milestone
Max. number of users6
Web browser live viewChrome; IE9 or later; Firefox
Management softwareSmart PSS; DSS; DMSS
Compatible accessoriesPFB205W, PFA130-E, PFA152-E, PFA106, PFB220C

Power supply

Power supply12V DC/PoE
Power consumptionMax. 3.9 W (12 V DC); 5 W (PoE)

Operating conditions

Operating temperature-30°C to +60°C
Operating humidity< 95% RH
Protection ratingIP67

Construction

MaterialMetal
DimensionsØ122 mm x 108.3 mm
Net weight0.68 kg
Gross weight0.87 kg
Dahua
BIT-1720173
2 Items

Specific References

ean13
6923172525000
