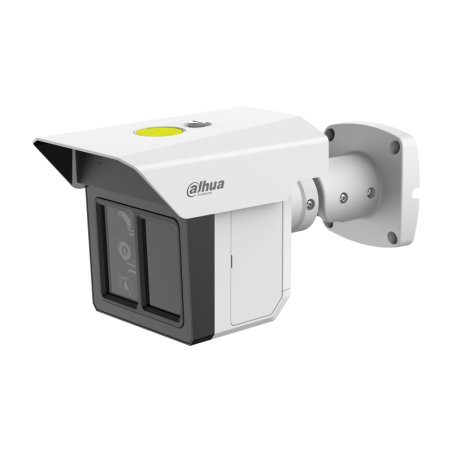

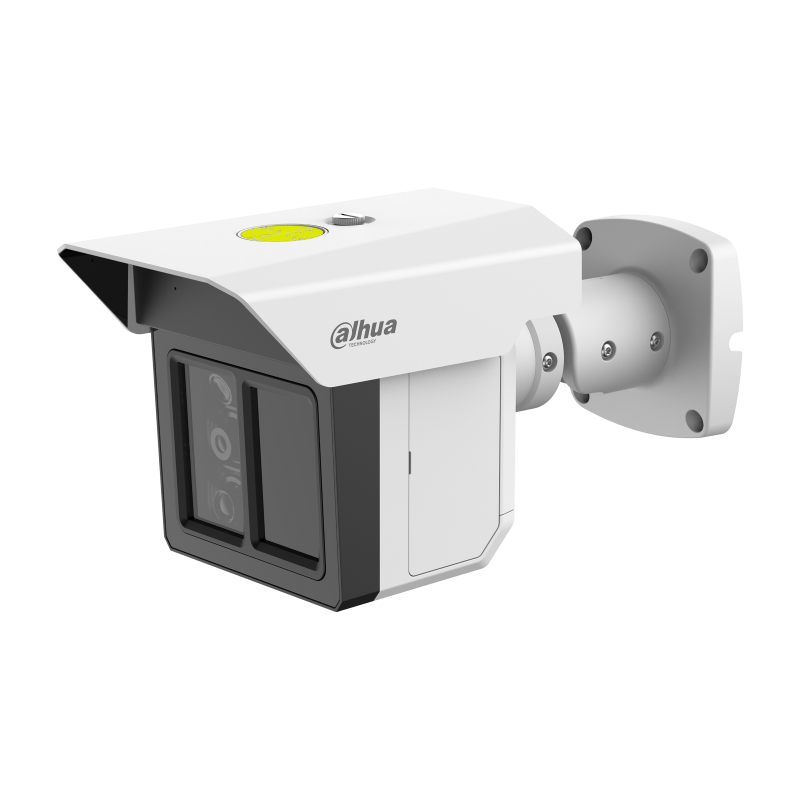

IP camera Dahua IPC-MFW5241T2-E3-ASE-0360/1200/2500B - square base

Name: IP camera Dahua IPC-MFW5241T2-E3-ASE-0360/1200/2500B - square base
Brand: Dahua
SKU: BIT-1720154_1
Price: 590.58 EUR
Availability: OutOfStock

€590.58

Tax included

Quantity

Out of stock

Secure payments

SSL-secured connection, cash on delivery payment.

Fast delivery

Delivery nationwide – arranged after the order.

Returns

14-day right of withdrawal under consumer protection law.

Description
Product Details

General

Type	Bullet
Series	WizMind
Color	White
Image sensor	3 x 1/2.8” 2 Megapixel Progressive CMOS
RAM/ROM	2 GB/4 GB
Resolution	1080p (1920 × 1080)
Effective pixels	2
Scanning system	Progressive
Electronic shutter speed	Auto/ Manual 1/3 s–1/100000 s
Minimum illumination	Channel 1: 0.0007 lux@F1.6 (Color, 30 IRE) 0.0004 lux@F1.6 (B/W,30 IRE) 0 lux (Illuminator on) Channel 2: 0.004 lux@F2.0 (Color, 30 IRE) 0.0005 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) Channel 3: 0.008 lux@F2.8 (Color, 30 IRE) 0.0008 lux@F2.8 (B/W, 3
Day/night modes	Auto (ICR) / Color / B&W
IR illumination up to	140
IR On/Off Control	Manual/Auto
IR LEDs	8
Storage	FTP; SFTP; Micro SD card (1 TB); NAS

Camera

IRE	30, 0Lux IR on
Signal-to-noise ratio	> 56dB
Housing movement	Three-axis adjustment: 0°–360° (Pan); 0°–70° (Tilt); 0°–360° (Rotation); Micro PTZ: -5°–10° (Tilt)

Lens

Lens	Fixed
Focal length	1: 3.6 mm; 2: 12 mm; 3: 25 mm
Mounting type	M16
Max. aperture	1: F1.6; 2: F2.0; 3: F2.8
Field of view	1: 100.4° (H); 2: 29.5° (H); 3: 14.9° (H)
Iris Type	Fixed aperture
Minimum focus distance	1: 1.1 m; 2: 8.6 m; 3: 19.6 m

Video

Frames per second	Main stream: 1920 × 1080@(1–25 fps) sub stream: 704 × 576@(1–25 fps)
Video compression	H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Streaming capability	2 streams
Bandwidth	80 Mbps incoming
Bitrate	H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps
Bitrate control	CBR/VBR
BLC	BLC / HLC / WDR / SSA
WDR	DWDR
White balance	Auto/natural/street light/outdoor/manual/custom
Gain Control	Auto / manual
Scene Self-adaptation	Yes
Noise reduction	3D NR
Smart illumination	Yes
Privacy masks	8 zones
Region of interest	yes
Software defog	yes

Perimeter protection

AI features

Defog (electronic fog removal), Illumination By Area, Intrusion, Perimeter protection, Privacy masking, ROI (Region of interest), SMD Plus (human/vehicle detection), Line crossing

Smart features

Motion detection	yes
Smart motion detection	yes
Alarm signal	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; security exception; scene change; audio detection

Certification

Certifications

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Additional ports

Audio input	1 (RCA port)
Audio output	1 (RCA port)
Alarm input	2 inputs: 5mA 3V–5V DC
Alarm output	2 outputs: 300mA 12V DC
RS485	1
Audio compression	G.711a; G.711Mu; PCM; G.726; G.723
Built-in microphone	yes
Built-in speaker	yes
SD card	yes
SD card capacity	Micro SD up to 1 TB

Network features

Ethernet	1 RJ-45 Ports (10/100 Mbps)
Mobile app	Android, iOS
Network protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour
Compatibility	ONVIF (Profle S & Profle G & Profle T & Profle M); CGI
Max. number of users	20
Web browser live view	Chrome; IE9 or later; Firefox
Management software	Smart PSS Lite; DSS; DMSS; DoLynk Care
Compatible accessories	PFA156, PFA121

Power supply

Power supply	12 VDC (±30%); PoE+(802.3at); ePoE
Power consumption	Max. 22.1 W (12 VDC); 23.6 W (PoE)

Operating conditions

Operating temperature	-40°C to +60°C
Operating humidity	< 95% RH (non-condensing)
Storage temperature	-40°C to +60°C
Protection rating	IP67
Vandal resistance rating	IK10
