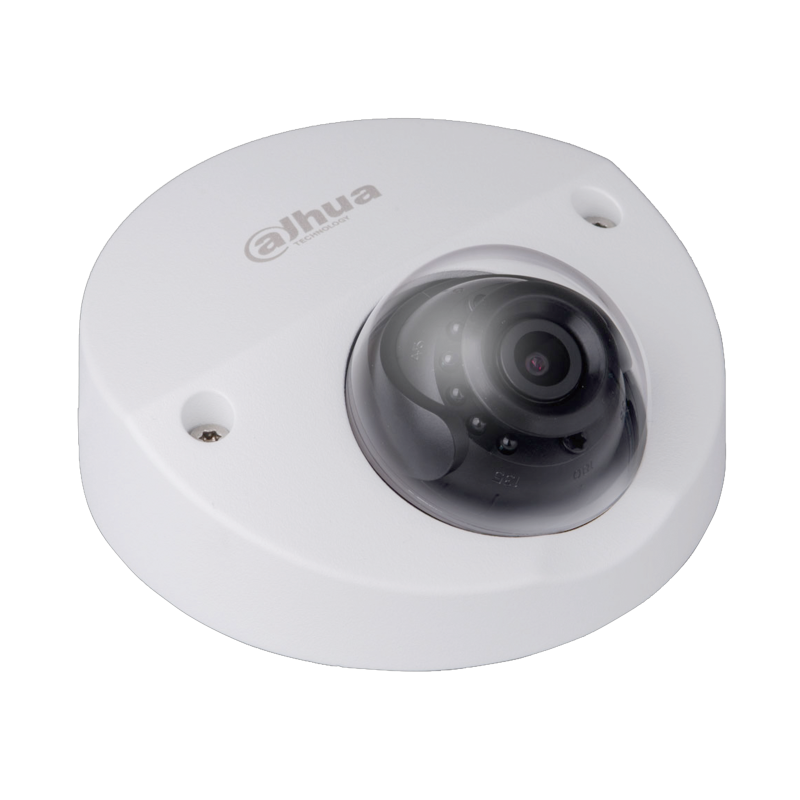

IP camera Dahua IPC-HDBW3231F-M-DAE-0280B
€188.70
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Dome |
| Series | Mobile |
| Color | White |
| Image sensor | 1/2.8” 2 Megapixel Progressive CMOS |
| RAM/ROM | 256 MB/32 MB |
| Resolution | 1080p (1920 × 1080) |
| Effective pixels | 2 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.001Lux/F2.1 ( Color,1/3s,30IRE) 0.03Lux/F2.1 ( Color,1/30s,30IRE) 0Lux/F2.1 (IR on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 23 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 10 |
| Storage | NAS; Local PC for instant recording; Micro SD card 128GB |
Camera
| Signal-to-noise ratio | > 50dB |
| Housing movement | Pan: -30°–30°; Tilt: 0°–80°; Rotation: 0° to 360° |
Lens
| Lens | Fixed |
| Focal length | 2.8 mm |
| Zoom | 16x digital |
| Mounting type | Built-in |
| Max. aperture | F2.1 |
| Field of view | 110° (H) |
| Focus control | Fixed |
| Minimum focus distance | 0.6 m |
Video
| Frames per second | Main Stream: 1080P(1~25/30fps) Sub Stream: D1 (1 ~ 25/30fps) |
| Video compression | H.265/H.264H/MJPEG(Sub Stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 2 streams |
| Bitrate | H.264:16Kbps ~ 10240Kbps H.265:16Kbps~ 7424Kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR |
| WDR | 120dB |
| White balance | Auto / manual |
| Gain Control | Auto / manual |
| Noise reduction | 3D DNR |
| Image rotation | 0°/90°/180°/270° |
| Mirror image | On/off |
| Privacy masks | On/off (4 zones, rectangle) |
| Region of interest | yes |
Perimeter protection
| AI features | Intrusion, Line crossing, Privacy masking, ROI (Region of interest) |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing; Intrusion |
| Alarm signal | Motion detection, video tampering, scene change, network disconnection, IP address conflict, illegal access, storage anomaly |
Certification
| Certifications | CE (EN 60950:2000), UL:UL60950-1, FCC: FCC Part 15 Subpart B, EN50155(Environment) |
Additional ports
| Audio compression | G.711a/G.711Mu/AAC |
| Built-in microphone | yes |
| SD card | yes |
| SD card capacity | Micro SD up to 128 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S NMP;TLS |
| Compatibility | ONVIF Profile S&G, API |
| Max. number of users | 10/20 |
| Streaming method | Unicast / Multicast |
| Web browser live view | IE, Chrome, Firefox, Safari |
| Management software | Smart PSS, DSS, DMSS |
| Compatible accessories | PFA139, PFB204W, PFA152-E |
Power supply
| Power supply | DC12V, PoE(IEEE 802.3af)(Class 0) |
| Power consumption | DC 12V: 3.7W, PoE: 5W |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH |
| Storage temperature | -30°C to +60°C |
| Protection rating | IP67 |
| Vandal resistance rating | IK10 |
Construction
| Material | Metal |
| Dimensions | Ø106 mm × 50.3 mm |
| Net weight | 0.33 kg |
| Gross weight | 0.46 kg |
