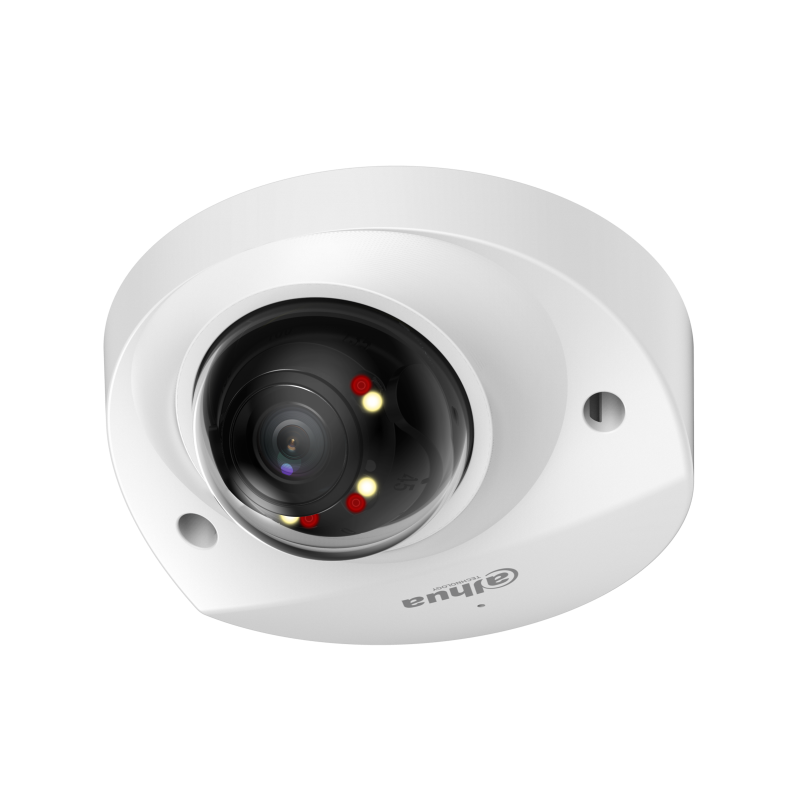

IP camera Dahua IPC-HDBW2249F-AS-IL-0280B

€148.92
Tax included
Quantity
Out of stock

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

TypeDome
SeriesWizSense
ColorWhite
Image sensor1/2.8” 2 Megapixel Progressive CMOS
RAM/ROM128 MB/128 MB
Resolution1080p (1920 × 1080)
Effective pixels2
Scanning systemProgressive
Electronic shutter speedAuto/ Manual 1/3 s–1/100000 s
Minimum illumination0.002 lux@F1.6 (Color, 30 IRE); 0.0002 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
Day/night modesAuto (ICR) / Color / B&W
IR illumination up to30
IR On/Off ControlManual/Auto
IR LEDs4
Fill light (white light) distance up to30 m
Fill light on/offAuto/manual
Number of fill LED lights4
StorageFTP; Micro SD card (up to 256 GB); SFTP

Camera

IRE30, 0Lux IR on
Signal-to-noise ratio> 56dB
Housing movementPan: -30°–30°; Tilt: 0°–80°; 180° auto flip

Lens

LensFixed
Focal length2.8 mm
Mounting typeM12
Max. apertureF1.6
Field of view105° (H)
Focus controlFixed
Minimum focus distance0.7 m

Video

Frames per secondMain stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Video compressionH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart CodecSmart H.265+/ Smart H.264+
Streaming capability2 streams
Bandwidth36 Mbps incoming
BitrateH.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
Bitrate controlCBR/VBR
BLCBLC / HLC / WDR
WDRWDR
White balanceAuto/natural/street light/outdoor/manual/custom
Gain ControlAuto / manual
Noise reduction3D NR
Smart illuminationYes
Image rotation0°/90°/180°/270° (90°/270° supported at 1080p resolution or lower)
Mirror imageYes
Privacy masks4 zones
Region of interestyes

Perimeter protection

AI featuresSmart Dual Illuminators, Privacy masking, ROI (Region of interest), Perimeter protection, Intrusion, Line crossing, SMD Plus (human/vehicle detection)

Smart features

Motion detectionyes
Intelligent video surveillanceLine crossing, Intrusion
Smart motion detectionyes
Alarm signalNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; audio detection; voltage detection; SMD; exception

Certification

CertificationsCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Additional ports

Audio input1 (RCA port)
Audio output1 (RCA port)
Alarm input1 input: 5mA 3V–5V DC
Alarm output1 output: 300mA 12V DC
Audio compressionG.711a; G.711Mu; G.726; PCM
Built-in microphoneyes
SD cardyes
SD card capacityMicro SD up to 256 GB

Network features

Ethernet1 RJ-45 Ports (10/100 Mbps)
Mobile appAndroid, iOS
Network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
CompatibilityONVIF (Profile S & Profile G & Profile T); CGI
Max. number of users6
Web browser live viewChrome; IE9 or later; Firefox
Management softwareSmart PSS Lite; DSS; DMSS; DoLynk Care
Compatible accessoriesPFB2204W, PFA139, PFB204W, PFB305W, PFA150, PFA152-E, PFA151, PFA106, PFB220C, PFA117

Power supply

Power supply12 VDC/PoE (802.3af)
Power consumptionMax. 6.4 W (12 VDC), 7.7 W (PoE)

Operating conditions

Operating temperature-40°C to +60°C
Operating humidity< 95% RH
Storage temperature-40°C to +60°C
Protection ratingIP67
Vandal resistance ratingIK10

Construction

MaterialMetal
DimensionsØ108.9 mm × 55 mm
Net weight0.41 kg
Gross weight0.55 kg
