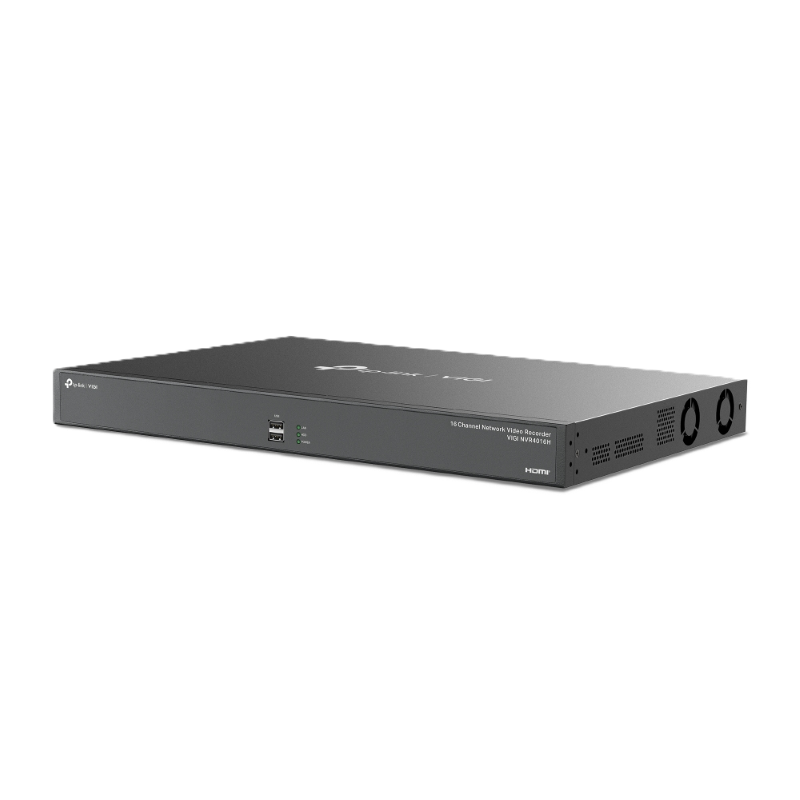

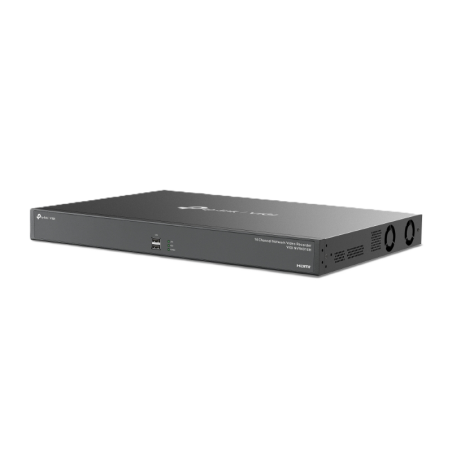

16-channel NVR recorder VIGI NVR4016H
€680.44
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Color | Black |
| IP camera input | 16 channels |
| Resolution | 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Max. camera resolution | 8 MP |
| Storage | 4 SATA III ports, up to 16 TB per HDD, 1 eSATA |
Video
| Video compression | H.265+/H.265/ H.264+/H.264 |
| Bandwidth | 320 Mbps incoming; 320 Mbps outgoing |
| Decoding Capacity | 25fps: 10-ch@3MP, 16-ch@1080P; 30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP |
| Recording mode | Manual/motion detection/scheduled recording |
| Recording playback | Up to 16 channels |
| Playback features | Instant playback, general playback, event playback, tag playback |
Perimeter protection
| AI features | Abandoned/missing object, Intrusion, Perimeter protection, Scene Changing, Smart Sound Detection, SMD Plus (human/vehicle detection), Line crossing |
Smart features
| Motion detection | yes |
| Alarm signal | Motion detection, video tampering, scene change detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, loitering detection, abandoned/missing object detection, det |
Certification
| Certifications | CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF |
Additional ports
| Audio input | 1 (RCA port) |
| Audio output | 1 (RCA port) |
| Alarm input/output | 16/4 |
| Video port | 2 x HDMI, 1 x VGA |
| USB | 2 front USB 2.0, 1 rear USB 3.0 |
| RS232 | 1 |
| Video port resolution | HDMI1: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz; HDMI2: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz; VGA: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1 |
| Multi-screen video output | 1/4/6/8/9/16 |
| Audio compression | G.711A/G.711U/G.726 |
Network features
| Ethernet | 2 RJ-45 Port (10/100/1000Mbps) |
| Mobile app | Android, iOS |
| Network protocols | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, FTP/SFTP, IPv6, SNMP |
| Compatibility | ONVIF Profile S/T, CGI |
| Web browser live view | Chrome (57+), Firefox (52+), Edge (91+) |
| Management software | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
Power supply
| Power supply | 100-240 VAC, 50/60Hz, 1.5A |
| Power consumption | < 5.5 W (without HDD) |
Operating conditions
| Operating temperature | -10°C to +55°C |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Storage temperature | -40°C to +70°C |
Construction
| Dimensions | 440 mm × 330 mm × 44 mm |
| Net weight | 4 kg |
| Gross weight | 5 kg |
