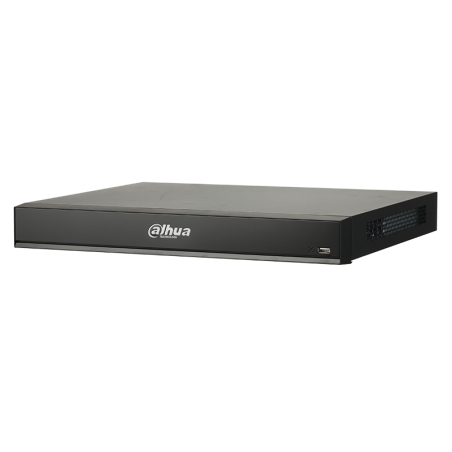

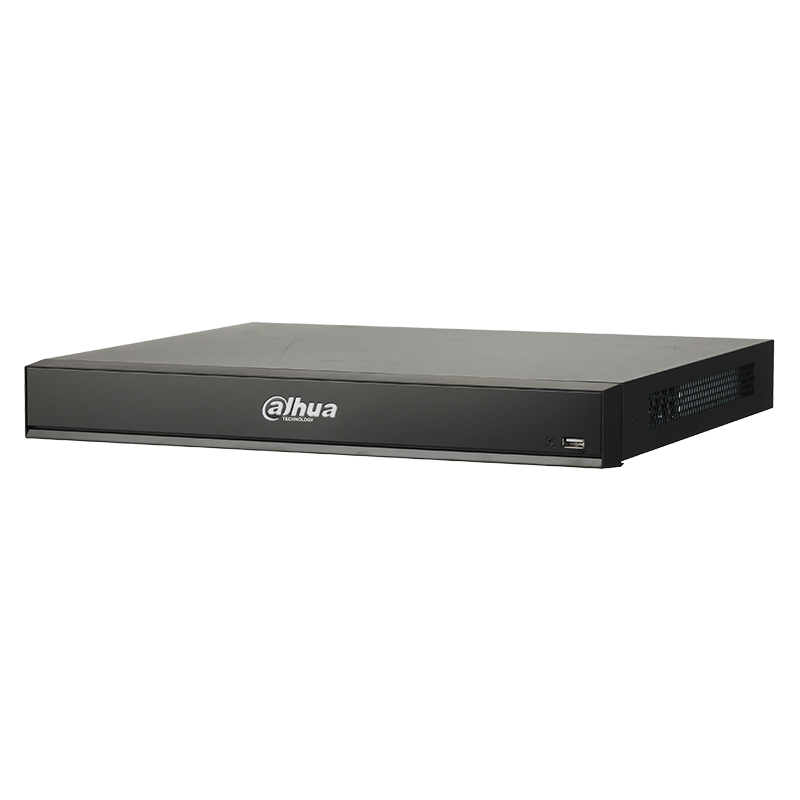

16-channel NVR recorder Dahua NVR5216-8P-I
€1,327.02
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizMind |
| Processor | Built-in |
| Operating system | Embedded LINUX |
| IP camera input | 16 channels |
| Resolution | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc. |
| Max. camera resolution | 16 MP |
| Storage | 2 x SATA III ports, up to 10 TB per HDD |
Video
| Video compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG |
| Bandwidth | 320Mbps (160Mbps with AI enabled for Dahua private protocol) |
| Decoding Capacity | 4-ch@8MP (30fps), 16-ch@1080P (30fps) |
| Recording mode | Manual, scheduled (continuous, MD, Alarm, IVS) |
| Recording interval | 1~120 minutes (default 60 minutes), pre-event 1~30 seconds, post-event 10~300 seconds |
| Recording playback | 1/4/9/16 |
| Archive record search by | Date and time, alarm, MD and exact search to the second |
| Backup | USB device / network |
Perimeter protection
| Performance | 16 channels, 10 IVS rules per channel |
| Object classification | Human/vehicle secondary recognition for line crossing and intrusion |
| AI (Artificial Intelligence) search | Search by classification (human, vehicle) |
| AI features | People counting, Face detection, SMD Plus (human/vehicle detection), License plate recognition, Metadata, Perimeter protection, Face recognition, Heat map |
| Perimeter protection by recorder | 16 channels, 10 IVS rules per channel (SMD Plus) |
| Face recognition by recorder | 4 channels of face recognition by video stream / 16 channels of face recognition by image (with FD camera) |
Face recognition
| Face recognition | yes |
| Performance | Recognition of up to 22 faces per second; 4 channels of face recognition in video stream / 16 channels of recognition by image with FD camera |
| Stranger mode | Detects strangers (faces not present in the database). The similarity threshold can be set manually. |
| AI (Artificial Intelligence) search | Search for up to 8 faces by photo simultaneously. The similarity threshold can be set manually for each searched face. |
| Database management | Up to 20 databases with a total of 100,000 face images. Name, gender, birthday, address etc. can be added to each face image. Countries and regions can be added for each. |
| Database application | Each database can be applied to video channels independently. |
Metadata
| Face | Gender, age, glasses, beard, mask, expression |
| Motor vehicle | License plate number, vehicle model, color, logo and type, plate color, decorations, seat belt, phone call, region. |
| Human body | Outerwear type, top color, bottom type, bottom color, hat, bag, gender, age, umbrella. |
| Non-motor vehicle | Type, color, number of passengers, helmet. |
| AI (Artificial Intelligence) search | Video search by metadata |
Smart features
| Motion detection | yes |
| Smart motion detection | yes |
| Enhanced smart motion detection | 16 channels, search by classification (human, vehicle) |
| Detection of | Motion, MD Zones: 396 (22 × 18), video loss, tampering and scene change |
| Trigger events | Sound, voice messages, email, Snapshot, recording, Alarm Out, PTZ activation |
Certification
| Certifications | CE (EN55032, EN55024, EN50130-4, EN60950-1) FCC (Part 15 Subpart B, ANSI C63.4-2014) UL (UL60950-1) |
| Third-party compatible | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif, Canon and more |
Additional ports
| Alarm input | 4 channels |
| Video port | 1 x HDMI, 1 x VGA |
| USB | 1 x USB 2.0 , 1 x USB 3.0 |
| RS232 | 1 port, for communication with PC and keyboard |
| RS485 | 1 port, for PTZ control |
| Video port resolution | HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen video output | 1/4/8/9/16 |
| Two-way audio | 1 channel in, 1 channel out, RCA |
| Relay output | 2 |
Network features
| Ethernet | 1 RJ-45 Port (10/100/1000Mbps) |
| PoE | 8 ports (IEEE802.3af / at), ports 1-8 support ePoE & EoC |
| Mobile app | Android, iOS |
| Network protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P |
| Compatibility | ONVIF 2.4, SDK, CGI |
| Max. number of users | 128 |
| Web browser live view | Chrome; IE9 or later; Firefox |
Power supply
| Power supply | AC100V-240V, 50/60Hz |
| Power consumption | NVR: < 15.6W (without HDD) PoE: Max. 25.5W per port, 130W total |
| Fan | Smart fan with automatic speed control |
Operating conditions
| Operating temperature | -10°C to +55°C |
| Storage temperature | 0°C to +40°C |
Construction
| Dimensions | 375.0 mm × 327.4 mm × 53.0 mm |
| Net weight | 2.7 kg |
| Gross weight | 4 kg |
