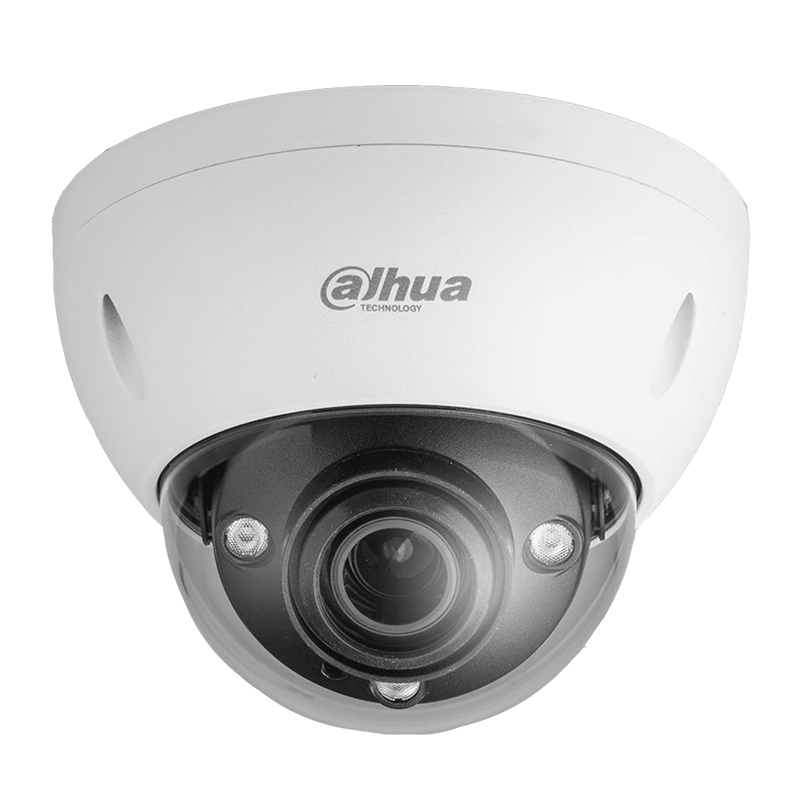

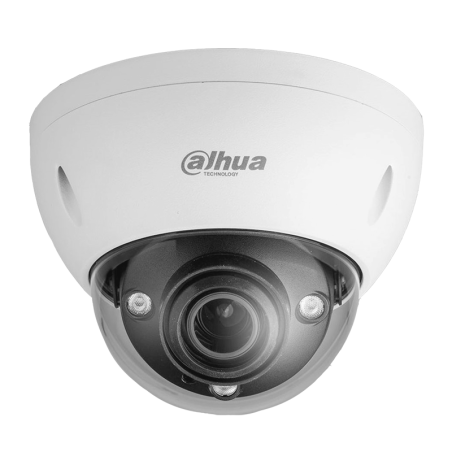

IP camera Dahua IPC-HDBW8231E-ZH(BLACK IR)
€587.48
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Dome |
| Series | Ultra |
| Color | White |
| Image sensor | 1/2.8” 2 Megapixel Progressive STARVIS™ CMOS |
| RAM/ROM | 512 MB/128 MB |
| Resolution | 1080p (1920 × 1080) |
| Effective pixels | 2 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.005Lux/F1.4 (Color,1/3s,30IRE) 0.03Lux/F1.4 (Color,1/30s,30IRE) 0Lux/F1.4(IR on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 20 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 3 |
| Storage | NAS; Local PC for instant recording; Micro SD card 128GB |
Camera
| IRE | 30, 0Lux IR on |
| Housing movement | 0° - 355° (pan); 0° - 65° (tilt); 0° - 355° (rotation) |
Lens
| Lens | Varifocal |
| Focal length | 2.4 mm to 6 mm |
| Zoom | 2.5x optical (manual); 16x digital |
| Mounting type | Built-in |
| Max. aperture | F1.4 |
| Field of view | 132°–54° (H) |
| Focus control | Manual |
| Minimum focus distance | 0.5 m |
Video
| Frames per second | Main Stream: 1080P(1~50/60fps); Sub Stream: D1 (1 ~ 50/60fps); Third Stream: 1080P(1~50/60fps) |
| Video compression | H.265+/H.265/H.264+/H.264 |
| Streaming capability | 3 streams |
| Bitrate | H.264: 24 ~ 10240Kbps; H.265: 14~ 6144Kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR / SSA |
| WDR | 140dB |
| White balance | Auto/natural/street light/outdoor/manual |
| Gain Control | Auto / manual |
| Scene Self-adaptation | Yes |
| Noise reduction | 3D DNR |
| Smart illumination | Supports |
| Image rotation | 0°/90°/180°/270° |
| Mirror image | On/off |
| Privacy masks | On/off (4 zones, rectangle) |
| Region of interest | yes |
| Electronic image stabilization | yes |
| Software defog | yes |
Perimeter protection
| AI features | Defog (electronic fog removal), EIS (Electronic image stabilization), ROI (Region of interest), Face detection, People counting, Heat map, Intrusion, Line crossing, Abandoned/missing object |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing; Intrusion; Abandoned/missing objects |
| Advanced smart features | Face detection, People counting, Heat map |
Additional ports
| Audio input | 2 |
| Audio output | 1 |
| Alarm input | 2 inputs: 5mA 5V DC |
| Alarm output | 1 output: 1000mA 30V DC/500mA 50V AC |
| RS485 | 1 |
| Audio compression | G.711a/ G.711Mu/ AAC/ G.726 |
| SD card | yes |
| SD card capacity | Micro SD up to 128 GB |
Network features
| Ethernet | RJ-45 (100/1000Base-T) |
| Mobile app | Android, iOS |
| Network protocols | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
| Compatibility | ONVIF, PSIA, CGI |
| Max. number of users | 10/20 |
| Streaming method | Unicast / Multicast |
| Web browser live view | IE, Chrome, Firefox, Safari |
| Management software | Smart PSS, DSS, Easy4ip |
| Compatible accessories | PFB302S, PFA138, PFB201C, PFB300C, PFA152, PFA101 |
Power supply
| Power supply | DC12V, AC24V, PoE (802.3af)(Class 0) |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH |
| Storage temperature | -30°C to +60°C |
| Protection rating | IP67 |
| Vandal resistance rating | IK10 |
Construction
| Material | Metal |
| Dimensions | Ø159 mm x 117.9 mm |
| Net weight | 0.96 kg |
| Gross weight | 1.75 kg |
