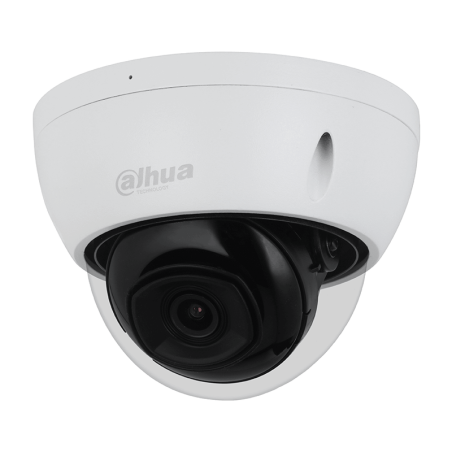

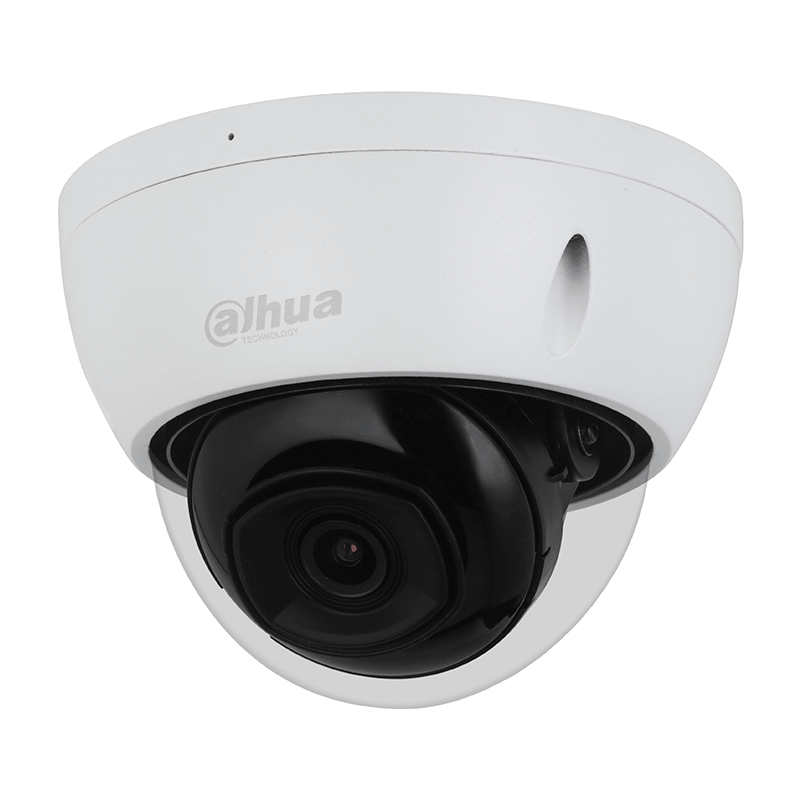

IP camera Dahua IPC-HDBW2241E-S-0280B

€136.68
Tax included
Quantity
Last items in stock

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

TypeDome
SeriesWizSense
ColorWhite
Image sensor1/2.8” 2 Megapixel Progressive CMOS
RAM/ROM128 MB/128 MB
Resolution1080p (1920 × 1080)
Effective pixels2
Scanning systemProgressive
Electronic shutter speedAuto/ Manual 1/3 s–1/100000 s
Minimum illumination0.002 Lux@F1.6 (Color, 30 IRE) 0.0002 Lux@F1.6 (B/W, 30 IRE) 0 Lux (Illuminator on)
Day/night modesAuto (ICR) / Color / B&W
IR illumination up to30
IR On/Off ControlManual/Auto
IR LEDs3
StorageFTP; Micro SD card (up to 256 GB); SFTP

Camera

IRE30, 0Lux IR on
Signal-to-noise ratio> 56dB
Housing movement0° - 355° (pan); 0° - 65° (tilt); 0° - 355° (rotation)

Lens

LensFixed
Focal length2.8 mm
Mounting typeM12
Max. apertureF1.6
Field of view106° (H)
Iris TypeFixed aperture
Minimum focus distance0.7 m

Video

Frames per secondMain stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Video compressionH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart CodecSmart H.265+/ Smart H.264+
Streaming capability2 streams
Bandwidth36 Mbps incoming
BitrateH.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Bitrate controlCBR/VBR
BLCBLC / HLC / WDR
WDR120dB
White balanceAuto/natural/street light/outdoor/manual/custom
Gain ControlAuto / manual
Noise reduction3D NR
Smart illuminationYes
Image rotation0°/90°/180°/270° (90°/270° supported at 1080p resolution or lower)
Mirror imageYes
Privacy masks4 zones
Region of interestyes

Perimeter protection

PerformanceLine crossing, intrusion (both functions support classification and accurate detection of vehicles and humans)
AI (Artificial Intelligence) searchSmart search – works together with Smart NVR for more specialized search
AI featuresPrivacy masking, ROI (Region of interest), SMD Plus (human/vehicle detection), Intrusion, Line crossing

Smart features

Motion detectionyes
Intelligent video surveillanceLine crossing, intrusion (supports classification and accurate detection of vehicles and humans)
Smart motion detectionyes
Alarm signalNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; scene change; audio detection; voltage detection

Certification

CertificationsCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Additional ports

Audio compressionG.711a; G.711Mu; G.726; PCM
Built-in microphoneyes
SD cardyes
SD card capacityMicro SD up to 256 GB

Network features

EthernetRJ-45 (10/100 Base-T)
Mobile appAndroid, iOS
Network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
CompatibilityONVIF (Profile S/Profile G); CGI; P2P
Max. number of users6
Web browser live viewChrome; IE9 or later; Firefox
Management softwareSmart PSS, DSS, DMSS
Compatible accessoriesPFA109, PFA136, PFA203W, PFB305W, PFA150, PFA152-E, PFA151, PFB220C

Power supply

Power supply12V DC/PoE
Power consumptionMax. 4.7 W (12 VDC); 5.6 W (PoE)

Operating conditions

Operating temperature-40°C to +60°C
Operating humidity< 95% RH
Protection ratingIP67
Vandal resistance ratingIK10

Construction

MaterialMetal
DimensionsØ109.9 mm x 81 mm
Net weight0.34 kg
Gross weight0.49 kg
Dahua
BIT-1720027_1
1 Item

Specific References

ean13
6923172546760
