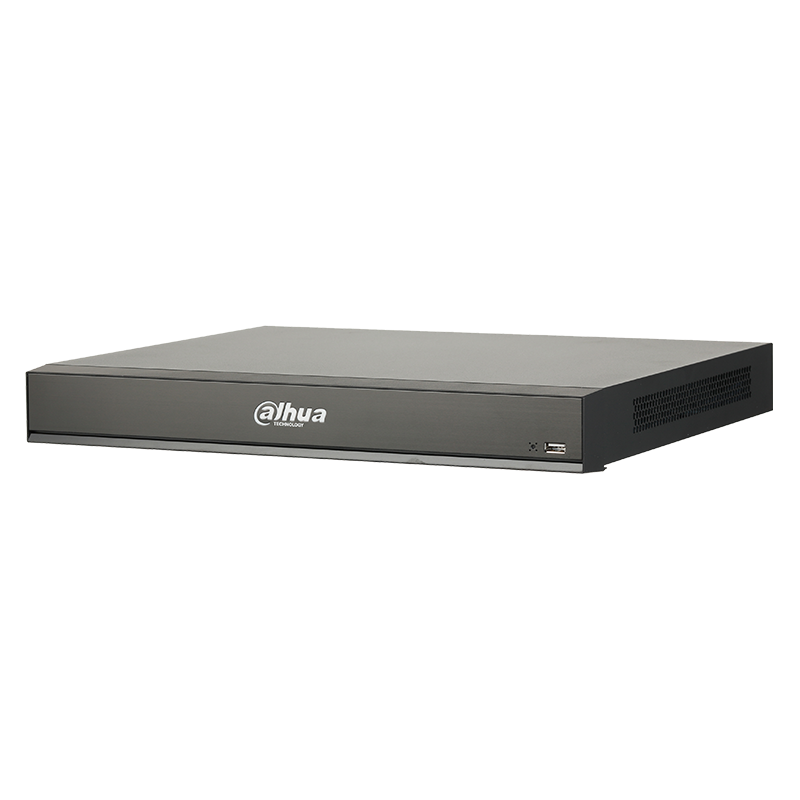

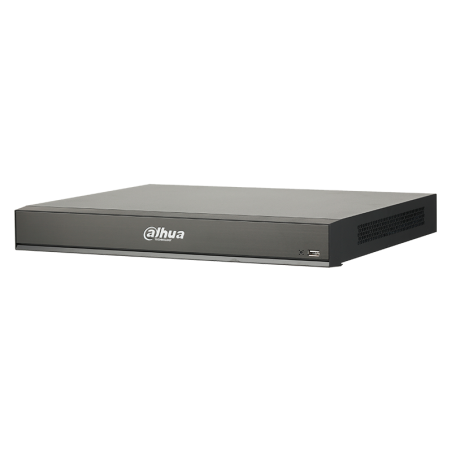

16-channel NVR recorder Dahua NVR5216-16P-I
€1,474.92
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizMind |
| Processor | Built-in |
| Operating system | Embedded LINUX |
| IP camera input | 16 channels |
| Resolution | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc. |
| Max. camera resolution | 16 MP |
| Storage | 2 x SATA III ports, up to 8TB per HDD |
Video
| Video compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG |
| Bandwidth | 320Mbps (160Mbps with AI enabled for Dahua private protocol) |
| Decoding Capacity | 4-ch@8MP(30fps), 16-ch@1080P(30fps) |
| Recording mode | Manual, scheduled (continuous, MD, Alarm, IVS) |
| Recording interval | 1~120 minutes (default 60 minutes), pre-event 1~30 seconds, post-event 10~300 seconds |
| Recording playback | 1/4/9/16 |
| Archive record search by | Date and time, alarm, MD and exact search to the second |
| Backup | USB device / network |
Perimeter protection
| Performance | 16 channels, 10 IVS rules per channel |
| Object classification | Human/vehicle secondary recognition for line crossing and intrusion |
| AI (Artificial Intelligence) search | Search by classification (human, vehicle) |
| AI features | SMD Plus (human/vehicle detection), Perimeter protection, Face detection, Face recognition, Heat map, License plate recognition, People counting, Fisheye dewarping |
| Perimeter protection by recorder | 12 channels, 10 IVS rules per channel (SMD Plus) |
| Face recognition by recorder | 4 channels of face recognition by video stream / 16 channels of face recognition by image (with FD camera) |
Face recognition
| Performance | Recognition of up to 24 faces per second; 4 channels of face recognition in video stream / 16 channels of recognition by image with FD camera |
| Stranger mode | Detects strangers (faces not present in the database). The similarity threshold can be set manually. |
| AI (Artificial Intelligence) search | Search for up to 8 faces by photo simultaneously. The similarity threshold can be set manually for each searched face. |
| Database management | Up to 20 databases with a total of 20,000 face images. Name, gender, birthday, address etc. can be added to each face image. Countries and regions can be added for each. |
| Database application | Each database can be applied to video channels independently. |
Metadata
| Face | Gender, age, glasses, beard, mask |
| Motor vehicle | Vehicle model, color, logo, plate color, decorations, seat belt, phone call |
| Human body | Outerwear type, top color, bottom type, bottom color, hat, bag |
| Non-motor vehicle | Type, color, number of people |
| AI (Artificial Intelligence) search | Video search by metadata |
Smart features
| Motion detection | yes |
| Detection of | Motion, MD Zones: 396 (22 × 18), video loss, tampering and scene change |
| Trigger events | Sound, voice messages, email, Snapshot, recording, Alarm Out, PTZ activation |
Certification
| Certifications | CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (Part 15 Subpart B, ANSI C63.4-2014) |
| Third-party compatible | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet |
Additional ports
| Video port | 1 x HDMI, 1 x VGA |
| Audio port | 1 in, 1 out, RCA |
| USB | 1 front USB 2.0 port, 1 rear USB 3.0 port |
| RS232 | 1 port, for communication with PC and keyboard |
| RS485 | 1 port, for PTZ control |
| Video port resolution | HDMI/VGA: 3840 x 2160, 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 |
| Alarm input | 4 |
| Relay output | 2 |
Network features
| Ethernet | 1 RJ-45 Port (10/100/1000Mbps) |
| PoE | 16 ports (IEEE802.3af / at), ports 1-8 support ePoE & EoC |
| Mobile app | Android, iOS |
| Network protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support IP camera, DVR, NVS, etc.), P2P |
| Compatibility | ONVIF 2.4, SDK, CGI |
| Max. number of users | 128 |
Power supply
| Power supply | AC100V ~ 240V, 50 ~ 60 Hz |
| Power consumption | 16.5W (without hard drive) PoE: Max. 25.5W per port, 130 W total rated power, 80% protection control |
| Fan | Smart fan with automatic speed control |
Operating conditions
| Operating temperature | -10°C to +55°C |
| Storage temperature | -20°C to +70°C |
Construction
| Dimensions | 375 mm x 327.3 mm x 53 mm |
| Net weight | 2.7 kg |
| Gross weight | 4 kg |
