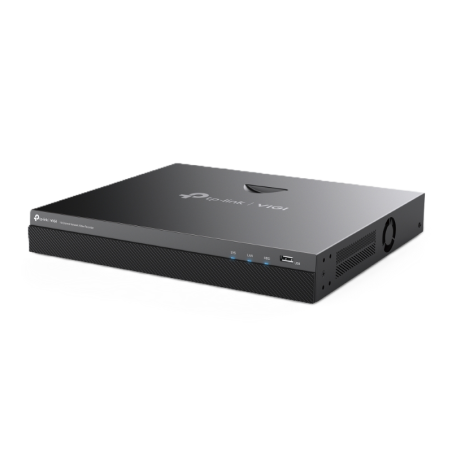

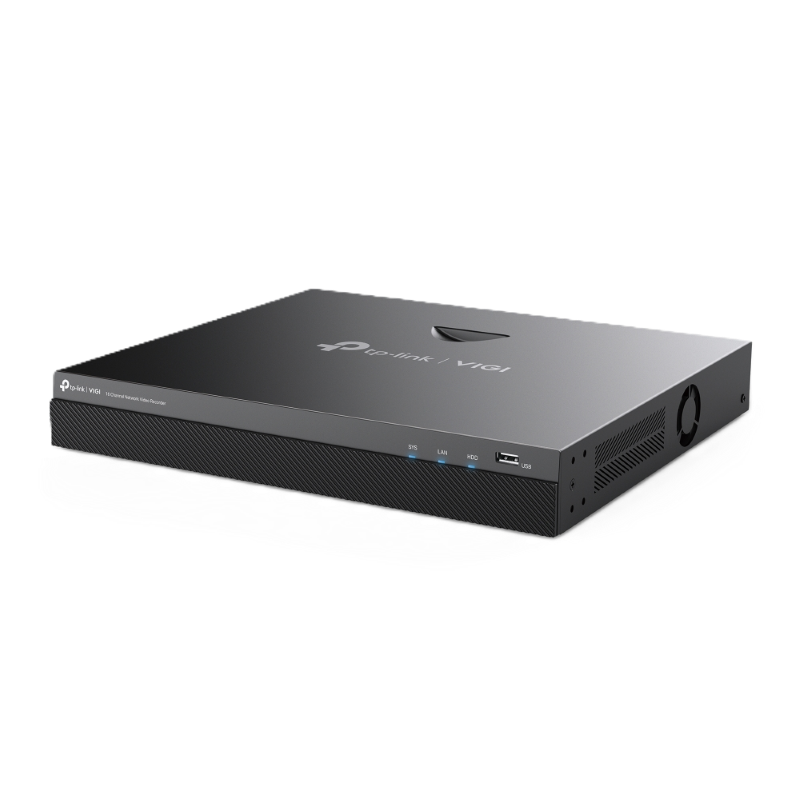

16-channel NVR recorder VIGI NVR2016H
€384.03
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Color | Black |
| IP camera input | 16 channels |
| Resolution | 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Max. camera resolution | 8 MP |
| Storage | 2 SATA III ports, up to 16 TB per HDD, 1 eSATA |
Video
| Video compression | H.265+/H.265/H.264+/H.264 |
| Bandwidth | 160 Mbps incoming; 160 Mbps outgoing |
| Decoding Capacity | 25fps: 10-ch@1080P; 30fps: 2-ch@8MP, 4-ch@5MP, 5-ch@4MP, 6-ch@3MP |
| Recording mode | Manual/motion detection/scheduled recording |
| Recording playback | Up to 16 channels |
| Playback features | Instant playback, general playback, event playback, tag playback |
Perimeter protection
| AI features | Abandoned/missing object, Intrusion, Perimeter protection, Scene Changing, Smart Sound Detection, SMD Plus (human/vehicle detection), Line crossing |
Smart features
| Motion detection | yes |
| Alarm signal | Motion detection, video tampering, scene change detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, loitering detection, abandoned/missing object detection, det |
Certification
| Certifications | CE, NTRA, Triman, BSMI, VCCI, FCC, HDMI, ONVIF |
Additional ports
| Audio input | 1 (RCA port) |
| Audio output | 1 (RCA port) |
| Alarm input/output | 6/4 |
| Video port | 1 x HDMI, 1 x VGA |
| USB | 1 front USB 2.0 port, 1 rear USB 3.0 port |
| Video port resolution | HDMI: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz; VGA: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Multi-screen video output | 1/4/6/8/9/16 |
| Audio compression | G.711A/G.711U/G.726 |
Network features
| Ethernet | 1 RJ-45 Port (10/100/1000Mbps) |
| Mobile app | Android, iOS |
| Network protocols | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, IPv6, SNMP, LLDP, FTP |
| Compatibility | ONVIF Profile S/T, CGI |
| Web browser live view | Chrome (57+), Firefox (52+), Edge (91+), Safari (11+) |
| Management software | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
Power supply
| Power supply | 12 VDC, 3.3 A |
| Power consumption | < 7.475 W (without HDD) |
Operating conditions
| Operating temperature | -10°C to +55°C |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Storage temperature | -40°C to +70°C |
Construction
| Dimensions | 330 mm × 285 mm × 45 mm |
| Net weight | 2 kg |
| Gross weight | 3.3 kg |
