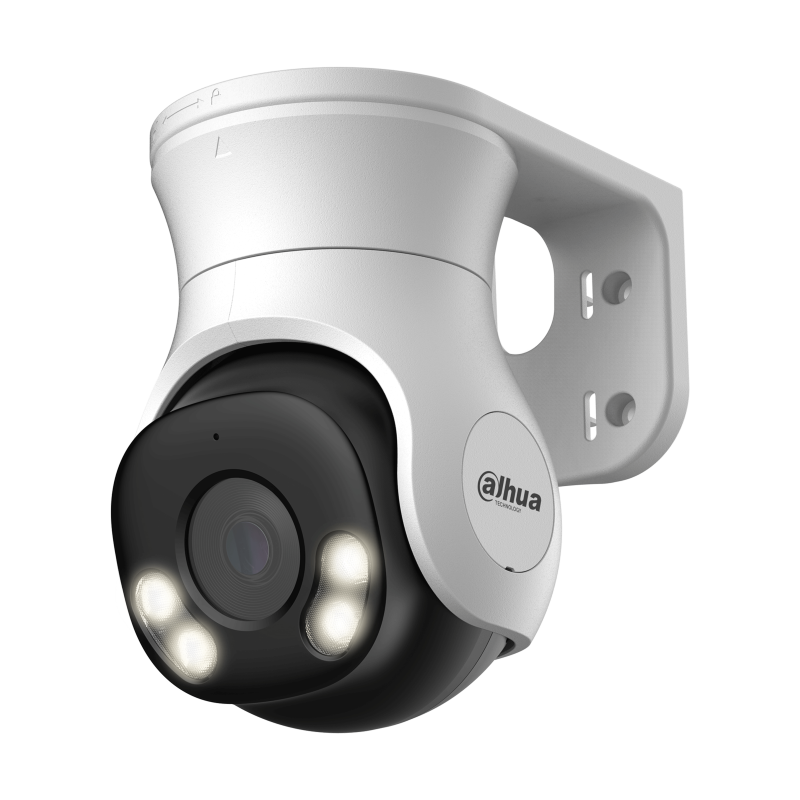

Analog camera Dahua HAC-PT1509A-A-LED-0280B-S2
€104.04
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | Lite |
| Color | White |
| Image sensor | 5 Megapixel Progressive CMOS |
| Resolution | 5M (2880 × 1620) |
| Effective pixels | 5 |
| Scanning system | Progressive |
| Electronic shutter speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum illumination | 0.001 lux@F1.0 (Color, 30IRE) 0 lux (Illuminator on) |
| Day/night modes | Color |
| Fill light (white light) distance up to | 40 m |
| Fill light on/off | Automatic |
| Number of fill LED lights | 4 |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 65dB |
| Housing movement | 0° - 355° (pan) and 0° - 90° (tilt) |
| PTZ / PT | yes |
Lens
| Lens | Fixed |
| Focal length | 2.8 mm |
| Zoom | 4x digital |
| Mounting type | M12 |
| Max. aperture | F1.0 |
| Field of view | 111° (H) |
| Focus control | Fixed |
| Minimum focus distance | 1.5 m |
Video
| Frames per second | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120dB |
| White balance | Auto / manual |
| Gain Control | Auto / manual |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Mirror image | Yes |
| Privacy masks | On/off (8 zones, rectangle) |
| Software defog | yes |
| Low-light visibility technology | Full-Color |
| Full-Color | Yes |
Perimeter protection
| AI features | Defog (electronic fog removal), Privacy masking |
Smart features
| Full Color technology | yes |
Certification
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 |
Additional ports
| Video port | CVI / TVI / AHD / CVBS video output selectable over one BNC port |
| Built-in microphone | yes |
Network features
| Compatible accessories | PFA12C |
Power supply
| Power supply | 12V DC ±30% |
| Power consumption | Max. 7.7W (12 VDC, LED on) |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP66 |
Construction
| Material | Plastic |
| Dimensions | 92.9 mm × 91.3 mm × 130 mm |
| Net weight | 0.4 kg |
| Gross weight | 0.64 kg |
