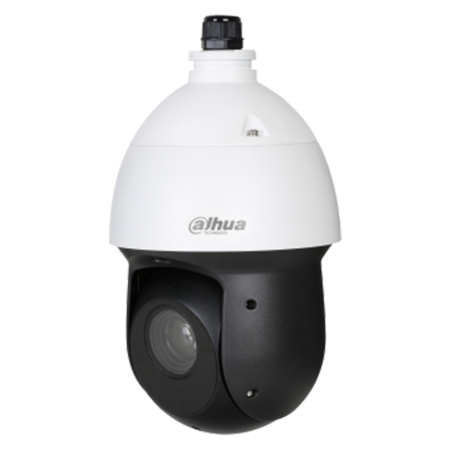

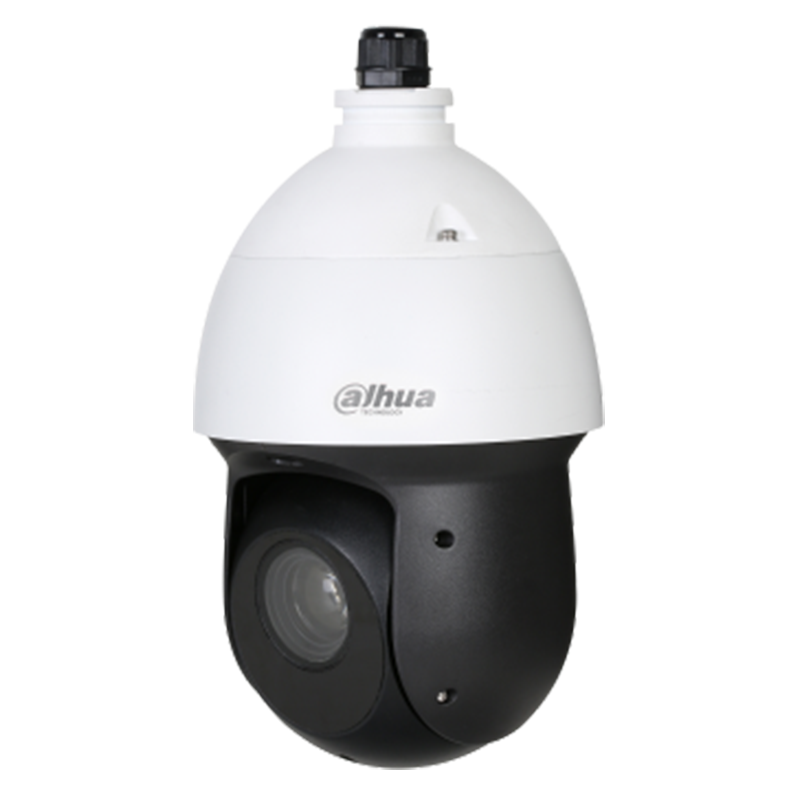

Analog camera Dahua SD49225DB-HC
€462.06
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Color | White |
| Image sensor | 1/2.8” 2 Megapixel Progressive CMOS |
| RAM/ROM | 256 MB/128 MB |
| Resolution | 1080p (1920 × 1080) |
| Effective pixels | 2 |
| Scanning system | Progressive |
| Electronic shutter speed | 1/3~1/30,000s |
| Minimum illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (IR light) |
| Day/night modes | Yes |
| IR illumination up to | 100 |
| IR On/Off Control | Priority to Zoom/Manual |
| IR LEDs | 6 |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 50dB |
| Housing movement | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°; 180° auto flip |
| Manual mode speed | 0.1° ~200° /s (pan); 0.1° ~120° /s (tilt) |
| Preset speed | 240° /s (pan); 200° /s (tilt) |
| Number of presets | 300 |
| PTZ / PT | yes |
| PTZ mode | 5 patterns, 8 tours, 5 scans |
| On power failure | Yes |
| Default motion detection | Preset/Tour/Pattern/Scan |
| Protocol | DH-SD, Pelco-P/D (auto detection) |
Lens
| Lens | Varifocal |
| Focal length | 4.8 mm to 120 mm |
| Zoom | 25x optical; 16x digital |
| Max. aperture | F1.6 ~ F3.5 |
| Field of view | 60.6° - 3.2°(H) |
| Iris Type | Auto/Manual |
| Focus control | Auto / Semi-auto / Manual |
| Minimum focus distance | 0.1 m – 2 m |
Video
| Frames per second | 1080p (25/30 fps); 720p (25/30/50/60 fps) |
| BLC | BLC / HLC / WDR |
| WDR | 120dB |
| White balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR/3D NR |
| Image rotation | 180° |
| Privacy masks | Yes |
| Software defog | yes |
| Low-light visibility technology | Starlight |
Perimeter protection
| AI features | Defog (electronic fog removal), Privacy masking |
Certification
| Certifications | CE: EN55032/EN55024/EN50130-4; FCC: Part15 subpart B, ANSI C63.4-2014; UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
Additional ports
| Audio input | 1 (LINE IN; bare wire) |
| Alarm input | 2 (0–5 VDC) |
| Alarm output | 1 |
| Video port | 1 channel (CVBS/CVI output, BNC) |
| RS485 | 1 |
Network features
| Compatible accessories | PFA120, PFB31C, PFB301S-E, PFB305W, PFA150, PFA151, PFA151, PFB300C, PFB303S, PFA111 |
Power supply
| Power supply | 12 VDC, 3 A ± 10% |
| Power consumption | Max. 22 W (illuminator + PTZ in motion) |
Operating conditions
| Operating temperature | -40°C to +70°C |
| Operating humidity | < 95% RH |
| Protection rating | IP66 |
Construction
| Dimensions | Ø160 mm x 269.9 mm |
| Net weight | 3 kg |
| Gross weight | 4.2 kg |
