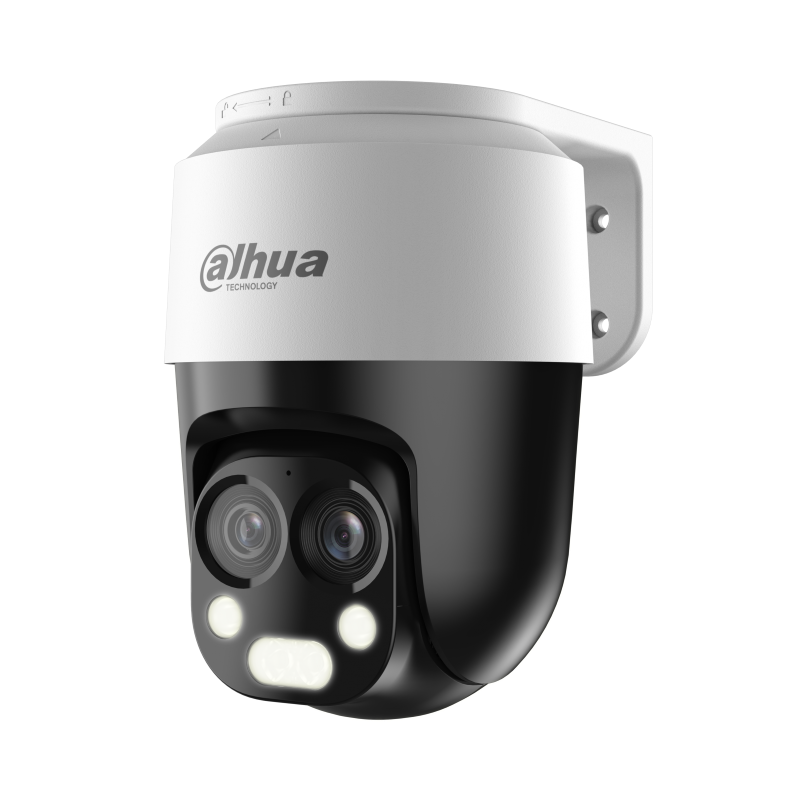

Analog camera Dahua HAC-PT1200B-IL-A-E2Z-2860
€102.00
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | PT |
| Color | White |
| Image sensor | 2 Megapixel Progressive CMOS |
| Resolution | 1080p (1920 × 1080) |
| Effective pixels | 2 |
| Scanning system | Progressive |
| Electronic shutter speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 50 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 4 |
| Fill light (white light) distance up to | 50 m |
| Fill light on/off | Auto/manual |
| Number of fill LED lights | 4 |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 65dB |
| Housing movement | 0° - 355° (pan) and 0° - 90° (tilt) |
| Number of presets | 80 |
| PTZ / PT | yes |
Lens
| Lens | Fixed |
| Focal length | 2.8 mm / 6 mm |
| Zoom | 6x digital |
| Mounting type | M12 |
| Max. aperture | F2.0 |
| Field of view | 2.8 mm: H: 109° / 6.0 mm: H: 47.2° |
| Iris Type | Fixed aperture |
| Minimum focus distance | 2.8 mm: 0.5 m / 6 mm: 2.3 m |
Video
| Frames per second | CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
| BLC | BLC / HLC / WDR |
| WDR | DWDR |
| White balance | Auto; Area WB |
| Gain Control | Auto / manual |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Mirror image | Yes |
| Privacy masks | On/off (8 zones, rectangle) |
| Software defog | yes |
Perimeter protection
| AI features | Defog (electronic fog removal), Privacy masking, Smart Dual Illuminators |
Certification
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 |
Additional ports
| Video port | CVI / TVI / AHD / CVBS video output selectable over one BNC port |
| Built-in microphone | yes |
Power supply
| Power supply | 12 VDC ± 30% |
| Power consumption | Max. 5.1 W (12 VDC, IR on) |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP66 |
Construction
| Material | Plastic |
| Dimensions | Ø110 mm × 150 mm |
| Net weight | 0.46 kg |
| Gross weight | 0.65 kg |
