- New

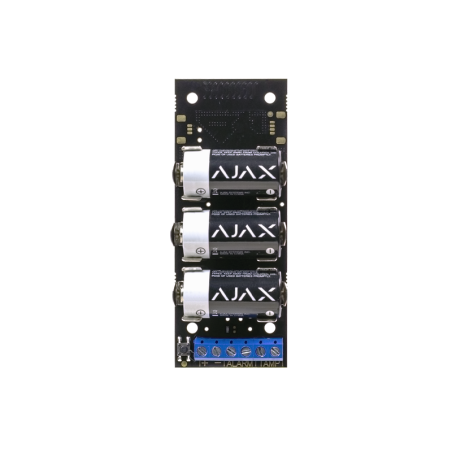

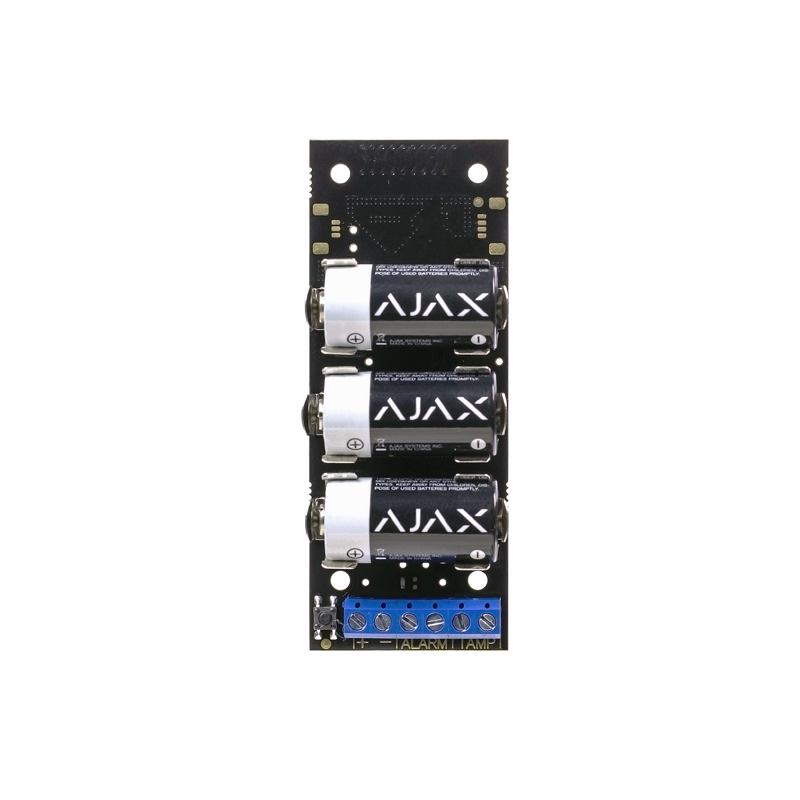

Transmitter for connecting third-party detectors to the Ajax alarm system
€47.94
Tax included
The Ajax transmitter receives alarm information over a wire and then transmits it to the hub via Jeweller. The hub then notifies the security company and system users. Full dimensions and specifications of the model are in the table in the "Technical information" tab/section.
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Integration modules |
Features
| Protections | Anti-fraud protection, jamming detection, accelerometer, tamper terminals |
Wireless network
| Carrier frequency | Depends on sales region |
| Max. communication distance | Up to 1600 m in open space |
| Communication method | Two-way |
| Encryption mode | AES |
Technical
| Battery | 3 × CR123A |
| Battery life | 5 years |
| Operating temperature | –25 °C to +50 °C |
| Operating humidity | < 75% |
| Dimensions | 100 mm × 39 mm × 22 mm |
| Mounting | Indoor, outdoor - in a sealed box or in the detector housing |
| Net weight | 0.074 kg |
Specification
| Sampling period | 12 ~ 300 sec |
| Event types | Intrusion, Fire, Medical, Panic button, Gas alarm, Fault, Leak, Custom |
| Alarm inputs | 1 |
| Supported alarm input normal state | NC, NO |
| Supported third-party device type | Pulse, Bistable |
| Tamper inputs | 1 |
| Supported tamper input normal state | NC, NO |
| Power output for a detector or device | 3.3V DC |
Temperature
| Temperature sensor | yes |
