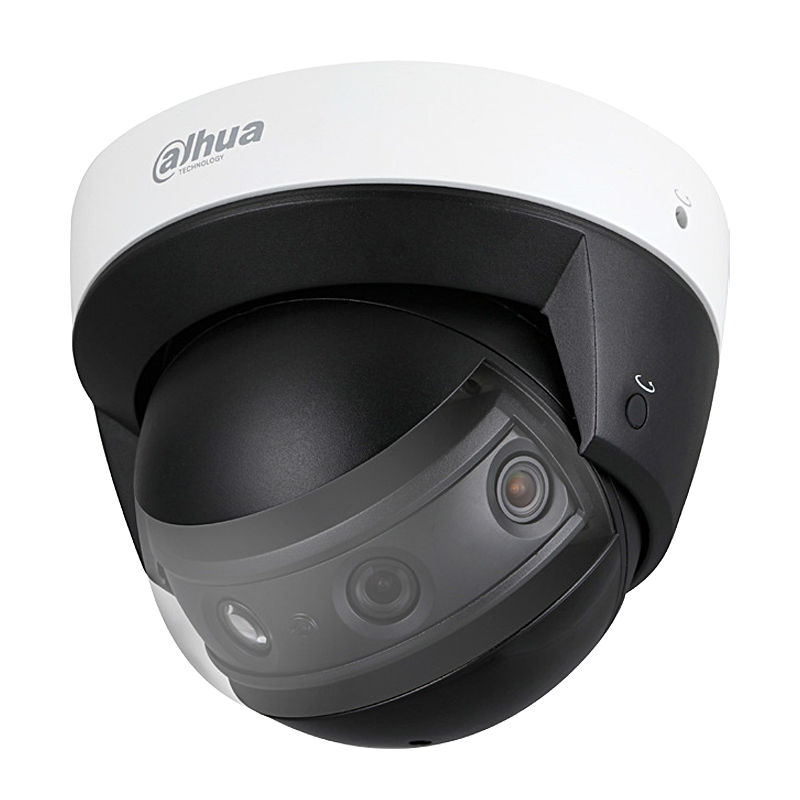

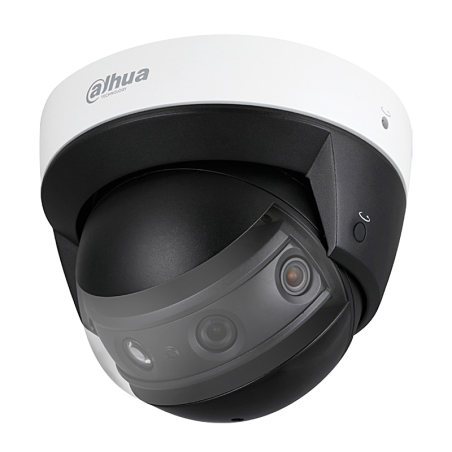

IP camera Dahua IPC-PDBW8800-A180-H-E4-AC24V
€1,199.49
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Dome |
| Series | Panoramic |
| Color | Black |
| Image sensor | 4 x 1/2.8” 2 Megapixel Progressive CMOS |
| RAM/ROM | 1 GB/128 MB |
| Resolution | 4K (4096 × 1800) |
| Effective pixels | 2 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.007Lux/F2.0( Color,1/3s,30IRE) 0.05Lux/F2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 30 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 6 |
| Storage | NAS; Local PC for instant recording; Micro SD card 128GB |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 50dB |
| Housing movement | 0° - 355° (pan); 0° - 75° (tilt); ±20° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 3.0 mm |
| Zoom | 16x digital |
| Mounting type | Built-in |
| Max. aperture | F2.0 |
| Field of view | 180° (H) |
| Iris Type | Fixed aperture |
Video
| Frames per second | Main Stream: 4096x1800 (1~25fps) Sub Stream: 1024X452 (1 ~ 25/30fps) Third Stream: 1920x832 (1 ~ 25/30fps) |
| Video compression | H.265+/H.265/H.264+/H.264 |
| Streaming capability | 3 streams |
| Bitrate | H.265: 9Kbps~ 9472Kbps H.264: 24Kbps~ 15616Kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White balance | Auto/natural/street light/outdoor/manual |
| Gain Control | Auto / manual |
| Noise reduction | 3D DNR |
| Privacy masks | On/off (4 zones, rectangle) |
| Region of interest | yes |
| Electronic image stabilization | no |
| Software defog | no |
| Low-light visibility technology | Starlight |
Perimeter protection
| AI features | Abandoned/missing object, E-PTZ, Face detection, Heat map, Intrusion, Line crossing, Privacy masking, ROI (Region of interest), People counting |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing; Intrusion; Abandoned/missing objects |
| Advanced smart features | Face detection, People counting, Heat map |
Certification
| Certifications | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
Additional ports
| Audio input | 1 |
| Audio output | 1 |
| Alarm input | 2 inputs: 5mA 5V DC |
| Alarm output | 2 outputs: 1000mA 30V DC/500mA 50V AC |
| Video port | 1 port (configuration only) |
| Audio compression | G.711a/G.711Mu/AAC/ G.726 |
| SD card | yes |
| SD card capacity | Micro SD up to 128 GB |
Network features
| Ethernet | 1 RJ-45 Ports (100/1000 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHC P;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour ;802.1x;Multicast;ICMP;IGMP;SNMP |
| Compatibility | ONVIF, PSIA, CGI |
| Max. number of users | 10/20 |
| Streaming method | Unicast / Multicast |
| Web browser live view | IE, Chrome, Firefox, Safari |
| Management software | Smart PSS, DSS, Easy4ip |
| Compatible accessories | PFA140, PFB300C, PFA120, PFA150, PFA151, PFB303S |
Power supply
| Power supply | AC24V, PoE+(802.3at)(Class 4) |
| Power consumption | < 25.5W |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
| Vandal resistance rating | IK10 |
Construction
| Material | Metal |
| Dimensions | Ø212 mm × 169.5 mm |
| Net weight | 3.6 kg |
| Gross weight | 4.6 kg |
