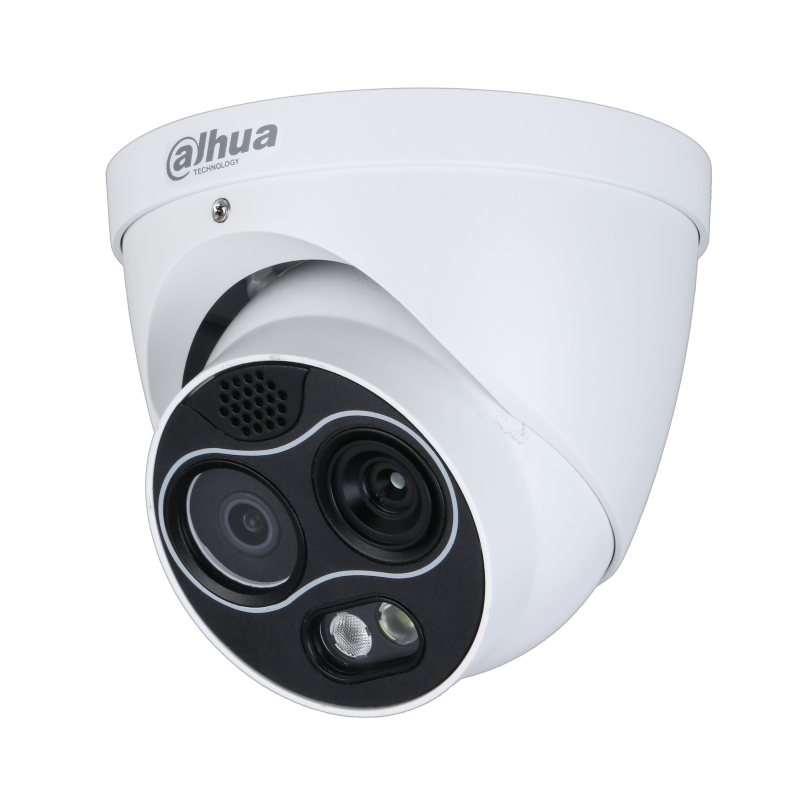

Thermal camera Dahua TPC-DF1241-B3F4-S2
€724.20
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Eyeball |
| Series | Eureka |
| Color | White |
| Image sensor | Thermal camera with Vanadium Oxide Uncooled FPA technology + 1/2.7" 4 Megapixel visible camera |
| Resolution | Thermal camera: 1.3MP (1280 × 960); Visible camera: 4MP (2336 × 1752) |
| Effective pixels | 4 |
| Scanning system | Progressive |
| Electronic shutter speed | Visible camera 1/30000s–1s |
| Minimum illumination | Visible camera Color: 0.05 lux B&W: 0.005 lux 0 lux (IR on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 30 |
| IR On/Off Control | Manual/Auto |
| Storage | Micro SD card (256G) |
Camera
| Signal-to-noise ratio | > 55dB |
| Thermal camera specific features | Pixel size 12 um, spectral range 8 um~14 um, thermal sensitivity (NETD) ≤40 mK@f/1.0, 18 color palettes (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald/spring/summer/ |
Lens
| Lens | Thermal camera: Fixed + Visible camera: Fixed |
| Focal length | Thermal camera: 3.5 mm + Visible camera: 4 mm |
| Zoom | Thermal camera: 16 levels |
| Max. aperture | Thermal camera: F1.0 + Visible camera: F1.6 |
| Field of view | Thermal camera H: 50.6° + Visible camera H: 71.2° |
| Focus control | Fixed |
| Minimum focus distance | Thermal camera: 0.5 m + Visible camera: 1 m |
Video
| Frames per second | Thermal 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default Vi |
| Video compression | H.265; H.264M; H.264H; H.264B; MJEPG |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White balance | Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural |
| Gain Control | Auto / manual |
| Noise reduction | 2D NR/3D NR |
| Image rotation | 90°; 180°; 270° |
| Region of interest | yes |
Perimeter protection
| AI features | ROI (Region of interest), Line crossing, Intrusion, Heat detection, Hot and cold spot tracking, SMD Plus (human/vehicle detection), Smoke detection, Mobile phone call detection |
Smart features
| Intelligent video surveillance | Line crossing; Intrusion |
| Smart motion detection | yes |
Additional ports
| Audio input | 1 |
| Audio output | 1 |
| Alarm input/output | 1/1 |
| RS485 | 1 |
| Audio compression | G.711a; G.711mu; PCM |
| SD card | yes |
| SD card capacity | Micro SD up to 256 GB |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Compatibility | ONVIF, CGI |
| Max. number of users | 10 |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Compatible accessories | PFA130-E, PFB203W, PFA106, PFB220C |
Power supply
| Power supply | 12 VDC, 1.2 A ± 20%; PoE |
| Power consumption | Max. <13 W (12 VDC); 12.3 W (PoE) |
Operating conditions
| Operating temperature | -30°C to +50°C |
| Operating humidity | < 95% RH |
| Storage temperature | -30°C to +70°C |
| Protection rating | IP67 |
Construction
| Dimensions | 122 mm × 122 mm × 112 mm |
| Net weight | 0.85 kg |
| Gross weight | 1 kg |
