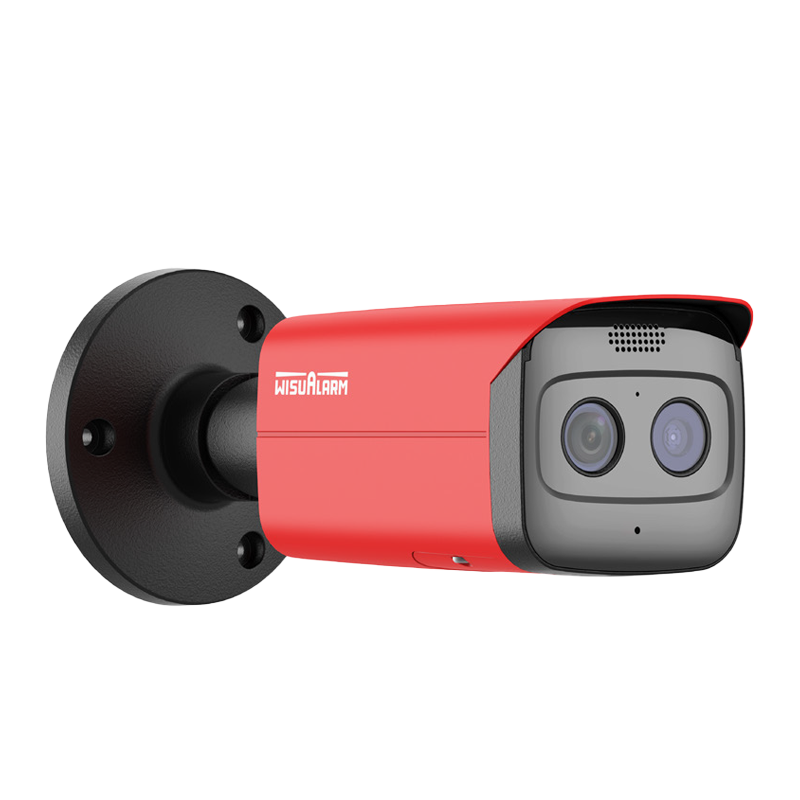

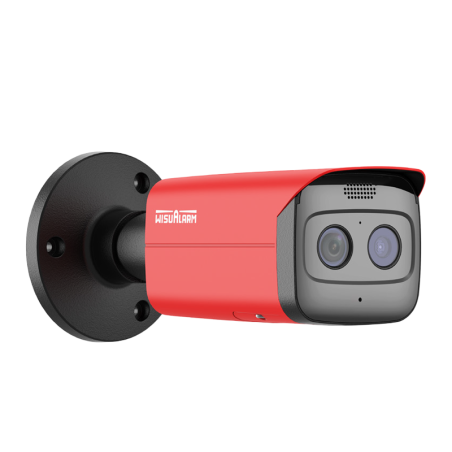

IP camera Dahua HY-FT431LFP-TD1F4
€287.64
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Bullet |
| Series | Thermal |
| Color | Red |
| Image sensor | Vanadium Oxide Uncooled FPA |
| Resolution | Thermal camera: 120 × 90 + Visible camera: 4MP |
| Effective pixels | 4 |
| Scanning system | Progressive |
| Electronic shutter speed | Visible camera: 1/3 s–1/100000 s (auto/manual) |
| Minimum illumination | Visible camera: Color: 0.0052 lux B/W: 0.0028 lux 0 lux (IR on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 25 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 2 |
| Storage | FTP; NAS; SFTP |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 55dB |
| Thermal camera specific features | Pixel size 17 um; Spectral range 8 um–14 um; Sensitivity (NETD) < 60mK (@f/1.0, 300K); Fire detection distance 10 m, flame size 10 cm x 10 cm; Temperature detection range -10°C to +200°C; Temperature detection accuracy |
Lens
| Lens | Thermal camera: Fixed + Visible camera: Fixed |
| Focal length | Thermal camera: 1.2 mm + Visible camera: 4 mm |
| Max. aperture | Thermal camera: F1.1 + Visible camera: F1.6 |
| Field of view | Thermal camera H: 90° + Visible camera H: 85° |
| Iris Type | Fixed aperture |
| Minimum focus distance | Thermal camera: 0.5 m + Visible camera: 1 m |
Video
| Frames per second | Visible camera: Main stream: 1 fps–25 fps adjustable; Sub stream: 1 fps–25 fps adjustable |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Bandwidth | 100 Mbps incoming |
| BLC | BLC / HLC / WDR |
| WDR | DWDR |
| White balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street light |
| Noise reduction | Thermal camera: 3D NR + Visible camera: 2D NR; 3D NR |
| Image rotation | Yes |
| Mirror image | Yes |
| Privacy masks | 4 zones |
Perimeter protection
| AI features | Heat detection, Privacy masking |
Certification
| Certifications | CE; UKCA |
Additional ports
| Alarm input | 1 input: 5mA 3V–5V DC |
| Alarm output | 1 output: 300mA 12V DC |
| Audio compression | MPEG2-Layer2; G.711a; G.711mu; AAC; PCM; G.722.1; G.726 |
| Built-in microphone | yes |
| Built-in speaker | yes |
| SD card | no |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Compatibility | ONVIF; CGI; Wisualarm |
| Max. number of users | 10 |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Compatible accessories | PFA130-E, PFA152-E |
Power supply
| Power supply | 12V DC/PoE |
| Power consumption | Max. 5.16W |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH |
| Protection rating | IP67 |
Construction
| Dimensions | 244.1 mm × 79 mm × 75.9 mm |
| Net weight | 0.8 kg |
| Gross weight | 1.1 kg |
