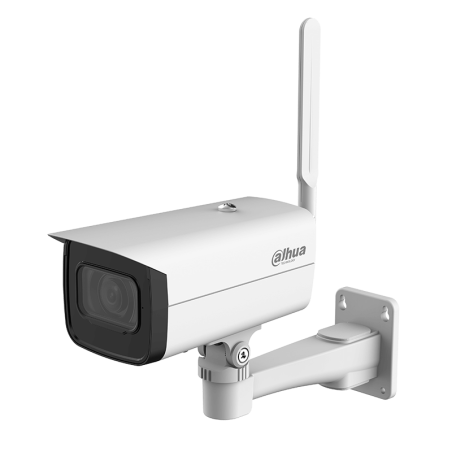

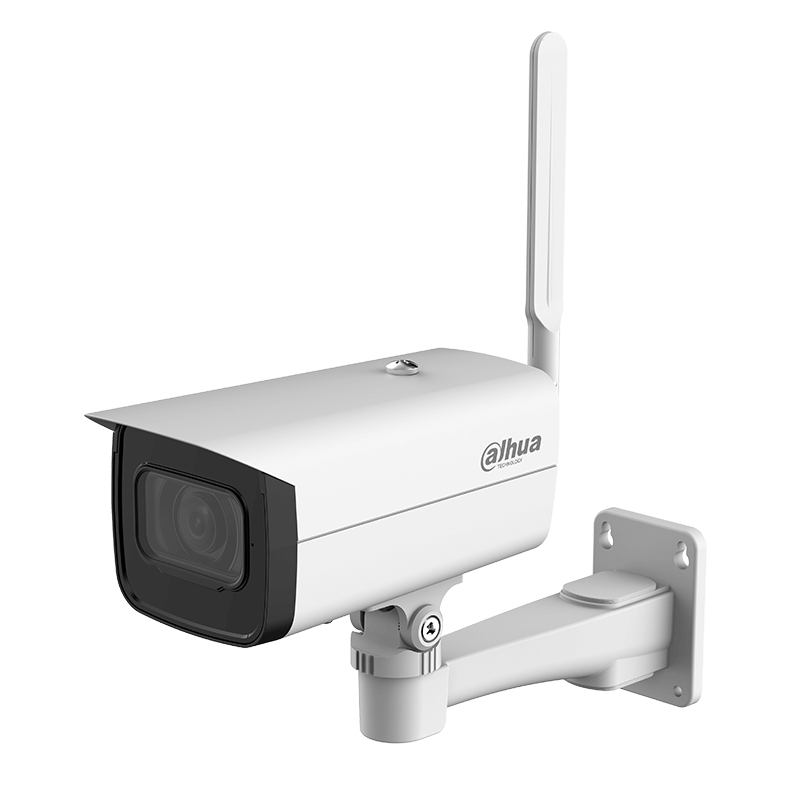

IP camera Dahua IPC-HFW3241DF-AS-4G-NL668-0280B

€592.62
Tax included
Quantity
Last items in stock

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

TypeBullet
SeriesWireless
ColorWhite
Image sensor1/2.8” 2 Megapixel Progressive CMOS
RAM/ROM512 MB/128 MB
Resolution1080p (1920 × 1080)
Effective pixels2
Scanning systemProgressive
Electronic shutter speedAuto/ Manual 1/3 s–1/100000 s
Minimum illumination0.002 Lux@F1.6(Color,30IRE) 0.0002 Lux@F1.6(B/W,30IRE) 0 lux (Illuminator on)
Day/night modesAuto (ICR) / Color / B&W
IR illumination up to50
IR On/Off ControlManual/Auto
IR LEDs2
StorageFTP; Micro SD card (up to 256 GB); NAS; SFTP

Camera

IRE30, 0Lux IR on
Signal-to-noise ratio> 56dB
Housing movement0° - 360° (pan), -60° - 0° (tilt) and 0° - 360° (rotation)

Lens

LensFixed
Focal length2.8 mm
Mounting typeM12
Max. apertureF1.6
Field of view107° (H)
Iris TypeFixed aperture
Minimum focus distance0.7 m

Video

Frames per secondMain stream: 1920 × 1080@(1 fps–30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream:1920 × 1080@(1 fps–30 fps)
Video compressionH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart CodecSmart H.265+/ Smart H.264+
Streaming capability3 streams
Bandwidth64 Mbps incoming
BitrateH.264:512kbps -8192kbps H.265:256kbps -7424kbps
Bitrate controlCBR/VBR
BLCBLC / HLC / WDR
WDR120dB
White balanceAuto/natural/street light/outdoor/manual/custom
Gain ControlAuto / manual
Noise reduction3D NR
Image rotation0°/90°/180°/270° (90°/270° supported at 1920 × 1080 resolution or lower)
Mirror imageYes
Privacy masks8 zones
Region of interestyes

Perimeter protection

PerformanceLine crossing, intrusion (both functions support classification and accurate detection of vehicles and humans)
AI (Artificial Intelligence) searchSmart search – works together with Smart NVR for more specialized search
AI featuresPrivacy masking, ROI (Region of interest), SMD Plus (human/vehicle detection), Intrusion, Line crossing

Smart features

Motion detectionyes
Intelligent video surveillanceLine crossing, Intrusion
Smart motion detectionyes
Alarm signalNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; scene change; audio detection; voltage detection

Certification

CertificationsCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Additional ports

Audio input1 (RCA port)
Audio output1 (RCA port)
Alarm input2 inputs: 5mA 3V–5V DC
Alarm output2 outputs: 300mA 12V DC
RS4851
Audio compressionPCM; G.711a; G.711Mu; G.726; G.723
Built-in microphoneyes
SD cardyes
SD card capacityMicro SD up to 256 GB

Network features

EthernetRJ-45 (10/100 Base-T)
Mobile appAndroid, iOS
Network protocolsIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
CompatibilityONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
Max. number of users20
Web browser live viewChrome; IE9 or later; Firefox
Management softwareSmart PSS, DSS, DMSS
Compatible accessoriesPFA121, PFB110W, PFB121W

Power supply

Power supply12V DC
Power consumption< 5.9W

Operating conditions

Operating temperature-30°C to +60°C
Operating humidity< 95% RH
Storage temperature-30°C to +60°C
Protection ratingIP67

Construction

MaterialMetal + plastic
Dimensions227.6 mm × 204.2 mm × 87.2 mm
Net weight0.945 kg
Gross weight1.440 kg
