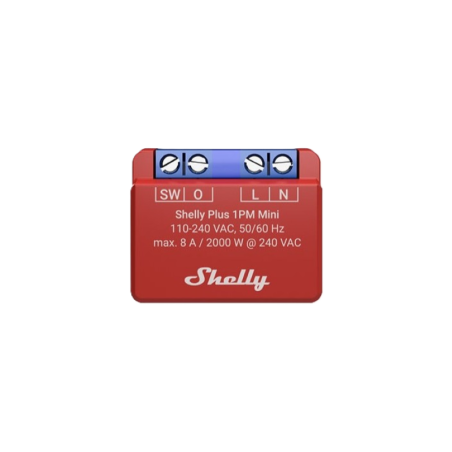

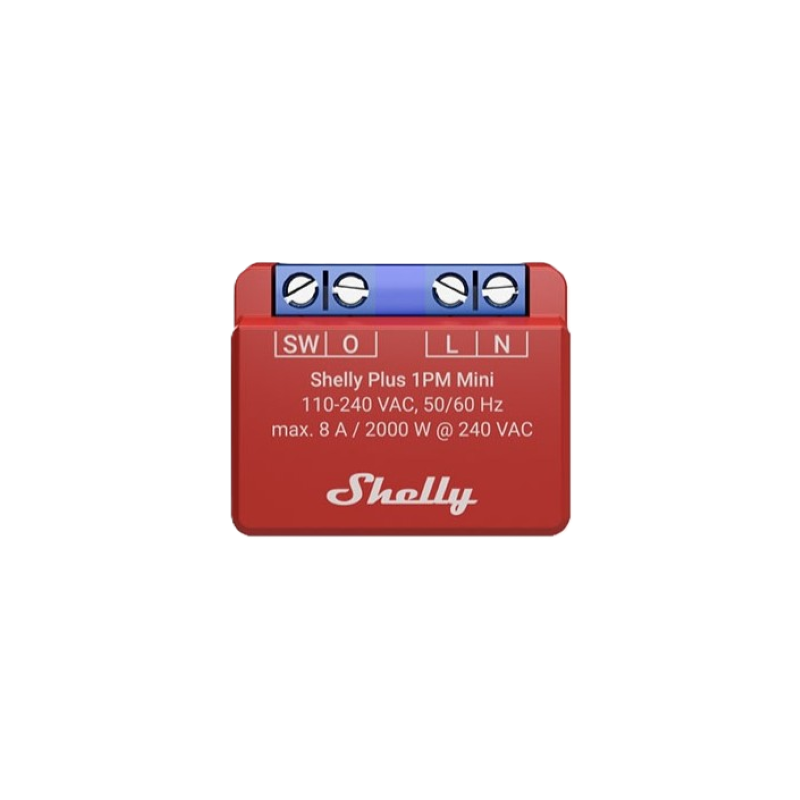

Single Wi-Fi relay Shelly PLUS 1PM Mini 1 x On/Off 8A
€15.44
Tax included
The Shelly Plus 1PM Mini is the smallest smart relay switch. With it you can automate your lighting, garage door, irrigation system or other small appliances in under 10 minutes and control them from anywhere in the world. The device fits into any wall box and no HUB is needed to use it. Compatible with Alexa and Home Assistant, it supports scripts, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates. It has one contact, up to 8A / 240 VAC. The Shelly Plus 1PM Mini can also act as a network range extender.
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
Features
| Remote configuration | yes |
| Mobile app | yes |
Wireless network
| Carrier frequency | 2400 - 2495 MHz |
| Max. communication distance | up to 50 m outdoors and up to 30 m indoors (depending on building materials) |
| Wi-Fi | Wi-Fi (802.11 b/g/n) |
| Bluetooth | yes |
Technical
| Processor | ESP32 |
| Power supply | AC 110 ~ 240 V |
| Consumption | < 1.2 W |
| Operating temperature | –20 °C to +40 °C |
| Operating humidity | 30%-70% (RH) |
| Dimensions | 29 mm x 35 mm x 16 mm |
| Net weight | 0.018 kg |
Specification
| Power measurement | yes |
| HTTP/HTTPS webhooks | yes |
| Custom scripts (mJs) | yes |
| Max. load | AC: 240V / 8A / 2KW |
Temperature
| Temperature sensor | yes |
