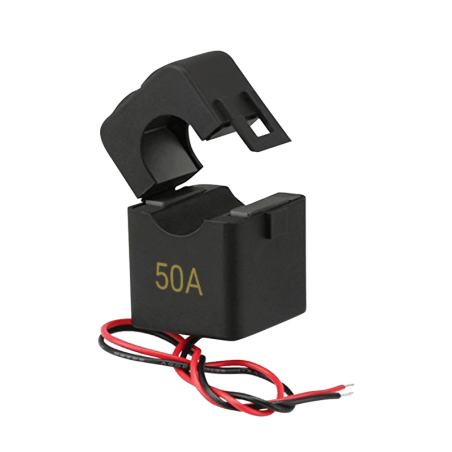

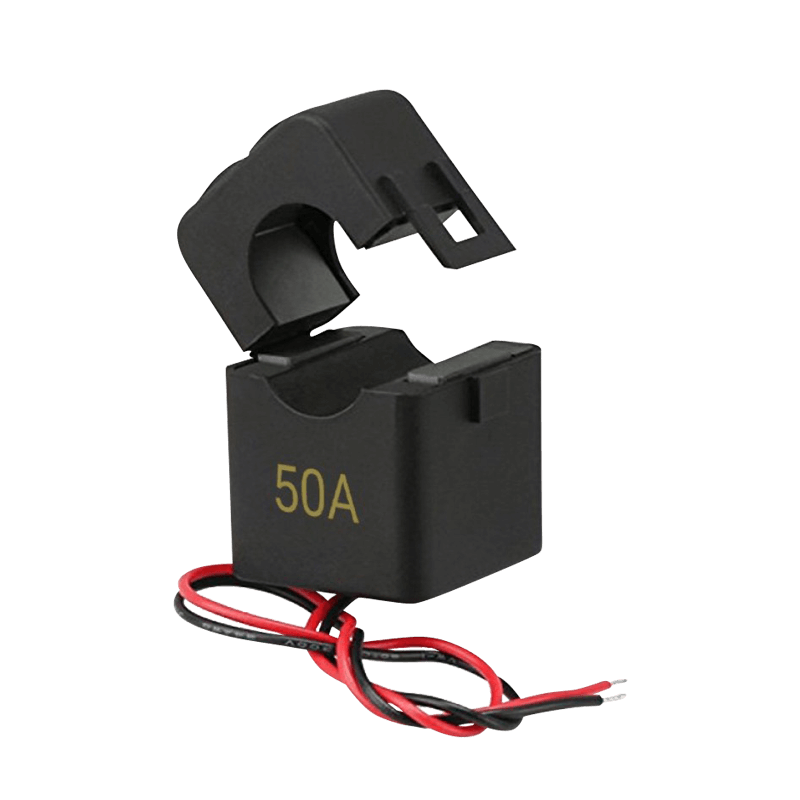

Split-core current transformer Shelly Split Core 50A
€14.08
Tax included
The Shelly Split Core 50A is a 50A current transformer with a ferrite core. Its inner diameter is 11 mm. Compatible with Shelly EM.
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
Specification
| Accuracy | 1 % |
| Core | Ferrite core |
| Dielectric strength | 3000VAC 1mA60s |
| Inner diameter | 11 mm |
| Load resistance | 20Ω |
| Rated primary current | 50A |
| Rated secondary current | 16.67mA |
| Saturation current | ≥85A |
