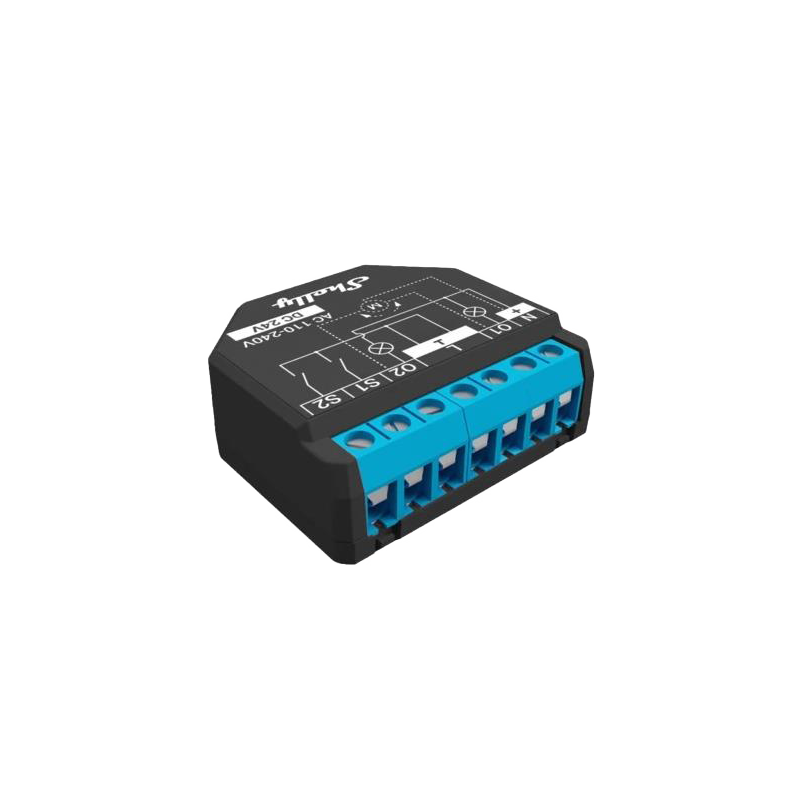

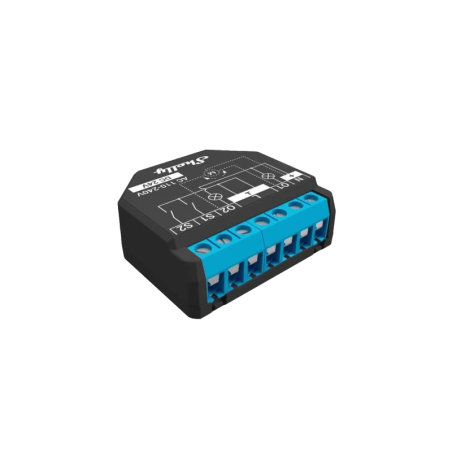

Micro module Shelly Plus 2PM
€33.59
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
Features
| Remote configuration | yes |
| Mobile app | yes |
Wireless network
| Carrier frequency | 2400 - 2495 MHz |
| Max. communication distance | up to 50 m outdoors and up to 30 m indoors (depending on building materials) |
| Bluetooth | yes |
Technical
| Processor | ESP32 |
| Power supply | 110 - 240 VAC / 24 VDC ±10% |
| Consumption | < 1.4 W |
| Operating temperature | –20 °C to +40 °C |
| Operating humidity | 30%-70% (RH) |
| Dimensions | 37 mm x 42 mm x 16 mm |
| Housing | Plastic |
Specification
| Sensor | Temperature sensor, voltmeter (AC), ammeter (AC) |
| Max. switching voltage | 240 Vac / 30 Vdc |
| Max. switching current | 10 Aac (per channel), 16 Aac (total), 18 Aac (total peak) / 10 Adc |
Temperature
| Temperature sensor | yes |
Manual
| Manufacturer's manual | View/download PDF |
