- New

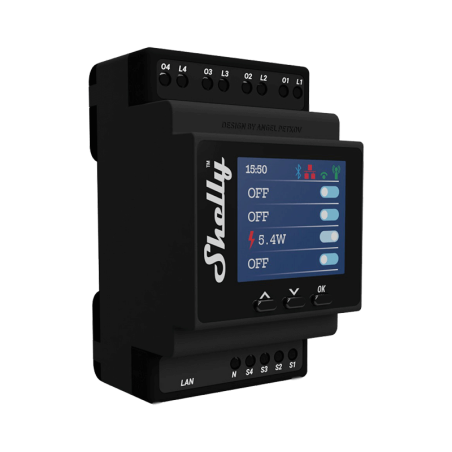

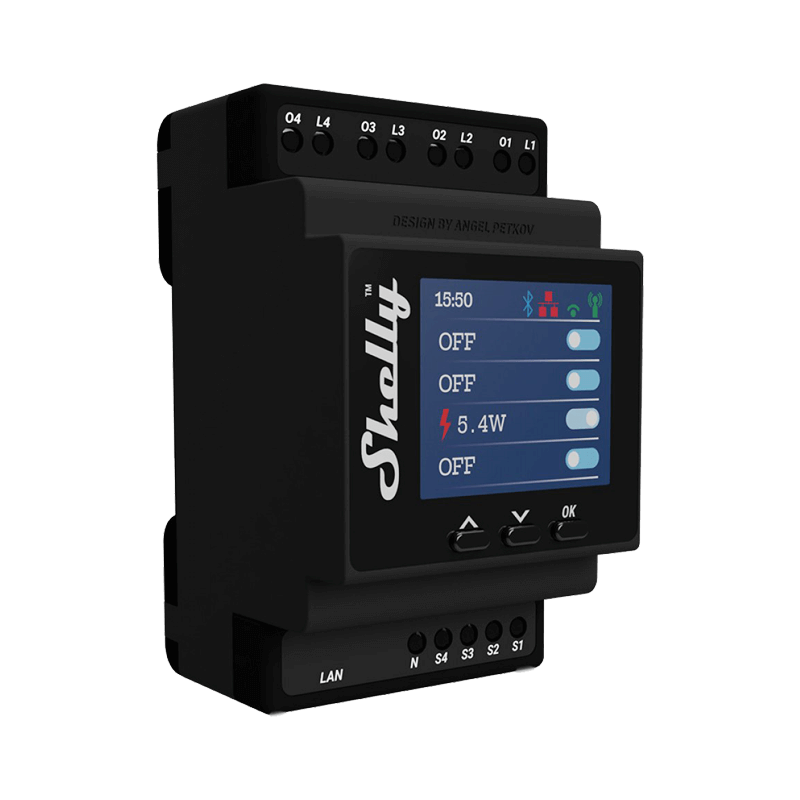

Quad Wi-Fi relay Shelly Pro 4PM
€110.02
Tax included
The Shelly Pro 4PM quad Wi-Fi relay has 4 outputs of up to 16A each and up to 40A in total. It is suitable for automating appliances at home and in the office and for monitoring, controlling and measuring energy consumption. It supports LAN and Bluetooth and mounts on a DIN rail. It has improved safety features compared to standard WiFi relays and is compatible with most home automation platforms. It has a 1.8-inch color screen with navigation buttons.
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
Ports
| Network ports | Yes |
Features
| Remote configuration | yes |
| Mobile app | yes |
Wireless network
| Carrier frequency | 2412 - 2484 MHz |
| Max. communication distance | up to 50 m outdoors and up to 30 m indoors (depending on building materials) |
| Wi-Fi | Wi-Fi (802.11 b/g/n) |
| Bluetooth | yes |
Technical
| Power supply | AC 110 - 230V ±10%, 50/60Hz |
| Consumption | < 4 W |
| Operating temperature | –20 °C to +40 °C |
| Dimensions | 90 mm x 52 mm x 57 mm |
Specification
| Roller shutter mode | no |
| Device temperature protection | yes |
| Overload protection | yes |
| Power measurement | yes |
| Smart on / off | yes |
| Sunrise / Sunset | yes |
| Weekly schedule | yes |
| UL Listed option | no |
| HTTP/HTTPS webhooks | yes |
| Custom scripts (mJs) | yes |
| Channels | 4 |
| Max. load | up to 16A per channel and up to 40A for the whole device |
Manual
| Manufacturer's manual | View/download PDF |
