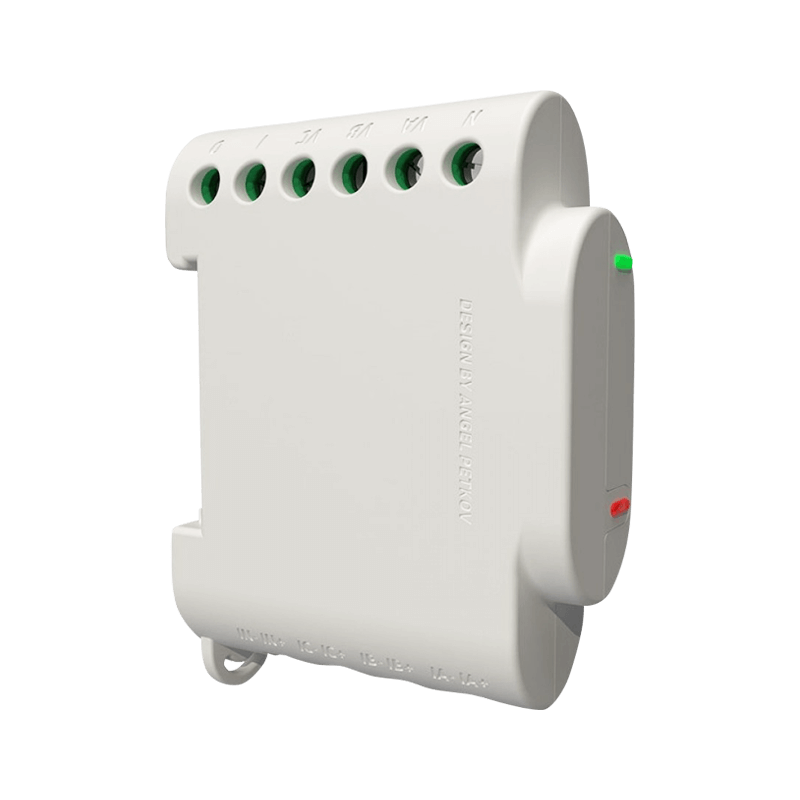

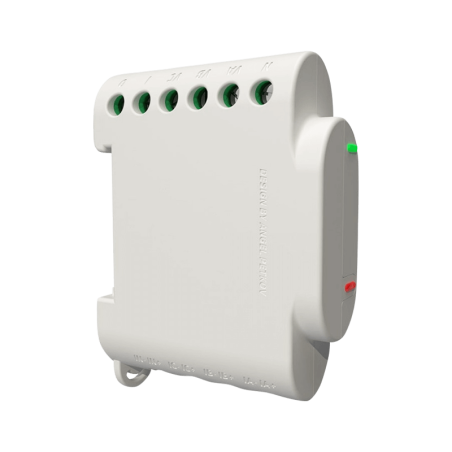

Wi-Fi three-phase energy meter Shelly 3EM
€135.68
Tax included
The Shelly 3EM Wi-Fi three-phase energy meter lets you monitor the consumption of any electrical circuits and appliances at home and in the office via your smartphone app. It has 3 independent measuring channels, up to 120A each. Shelly 3EM shows the consumption history separately for all 3 phases. The device can be configured to measure three separate points of a single-phase electrical system and measure each of them individually. It can also calculate bidirectional consumption. Three 120A current transformers are included. Compatible with all other Shelly products, Android, iOS, Amazon Alexa, Google Assistant and home automation servers. It does not need a hub to work.
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
Features
| Remote configuration | yes |
| Mobile app | yes |
Wireless network
| Carrier frequency | 2412 - 2484 MHz |
| Max. communication distance | up to 50 m outdoors and up to 30 m indoors (depending on building materials) |
| Wi-Fi | Wi-Fi (802.11 b/g/n) |
Technical
| Power supply | AC 110 - 230V ±10%, 50/60Hz |
| Consumption | < 1 W |
| Operating temperature | 0 °C to +40 °C |
| Dimensions | 73 mm x 57 mm x 22 mm |
Specification
| Contactor control | Yes - max. 10A |
| Roller shutter mode | no |
| Device temperature protection | no |
| Overload protection | no |
| Power measurement | yes |
| Smart on / off | yes |
| Sunrise / Sunset | yes |
| Weekly schedule | yes |
| UL Listed option | no |
| Channels | 3 |
Manual
| Manufacturer's manual | View/download PDF |
