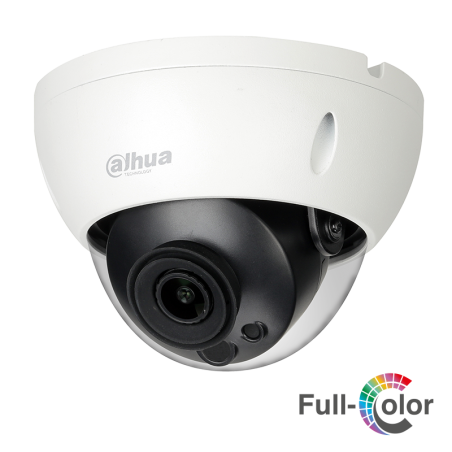

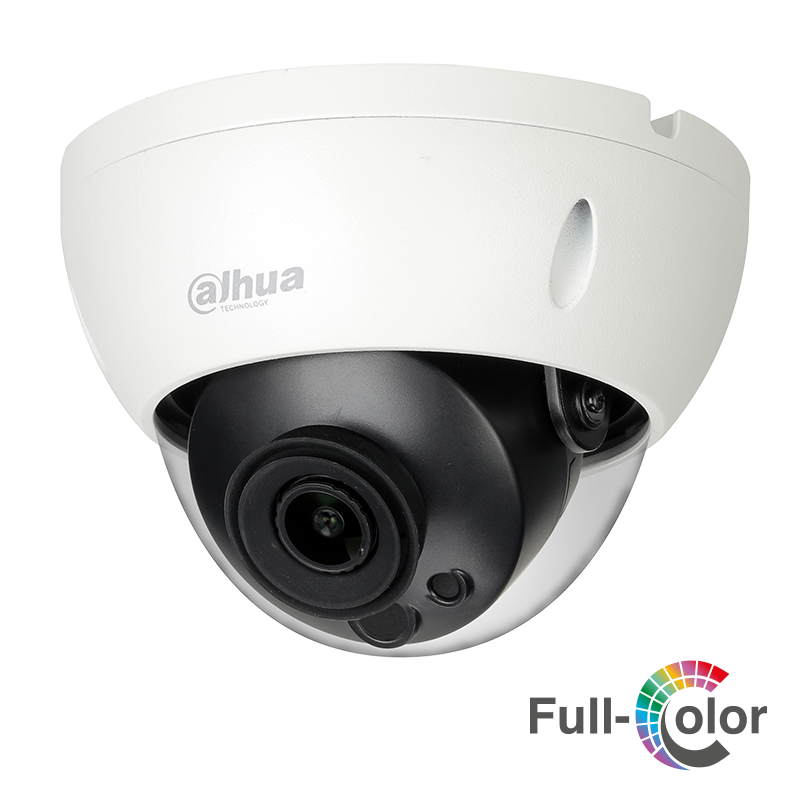

IP camera Dahua IPC-HDBW5449R-ASE-NI-0360B

€294.78
Tax included
Quantity
Last items in stock

  Secure payments

SSL-secured connection, cash on delivery payment.

  Fast delivery

Delivery nationwide – arranged after the order.

  Returns

14-day right of withdrawal under consumer protection law.

General

TypeDome
SeriesWizMind
ColorWhite
Image sensor1/1.8” 4 Megapixel Progressive CMOS
RAM/ROM1 GB/128 MB
Resolution4M (2688 × 1520)
Effective pixels4
Scanning systemProgressive
Electronic shutter speedAuto/ Manual 1/3 s–1/100000 s
Minimum illumination0.001 Lux @F1.0
Day/night modesColor / B&W
StorageFTP; Micro SD card (up to 256 GB); NAS; SFTP

Camera

Housing movement0°-355° (pan); 0°-75° (tilt); 0°-355° (rotation)

Lens

LensFixed
Focal length3.6 mm
Mounting typeBuilt-in
Max. apertureF1.0
Field of view93° (H)
Iris TypeFixed aperture
Minimum focus distance2 m

Video

Frames per secondMain Stream: 2688 × 1520 (1 fps–25/30 fps) 2560 × 1440 (1 fps–25/30 fps) 1920 × 1080 (1 fps–50/60 fps) Sub Stream: D1 (1 fps–25/30 fps) D1 (1 fps–50/60 fps) Third Stream: 1080P (1 fps–16 fps)
Video compressionH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart CodecYes
Streaming capability3 streams
BitrateH.264: 32 Kbps–8192 Kbps; H.265: 19 Kbps–8192 Kbps
Bitrate controlCBR/VBR
BLCBLC/HLC/WDR (140 dB)/SSA
WDR140dB
White balanceAuto/natural/street light/outdoor/manual
Gain ControlAuto / manual
Noise reduction3D DNR
Image rotation0°/90°/180°/270°
Mirror imageOn/off
Privacy masksOn/off (4 zones, rectangle)
Region of interestyes
Software defogyes
Low-light visibility technologyFull-Color
Full-ColorYes

Perimeter protection

PerformanceLine crossing; Intrusion (human and vehicle); parking detection in a defined perimeter; Loitering and crowd gathering detection;
AI featuresPrivacy masking, ROI (Region of interest), Intrusion, Line crossing

Smart features

Motion detectionyes
Advanced smart featuresAbandoned object; missing object; heat map
People countingSupports line crossing; Queue people counting; 4 independent access zones; 4 independently counted zones
Trigger eventsMotion detection, tampering, scene change, network disconnection, IP address conflict, illegal access, storage anomaly

Certification

CertificationsCE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Additional ports

Alarm input1 input: 5mA 3V–5V DC
Alarm output1 output: 300mA 12V DC
Audio port1 in, 1 out
Audio compressionG.711a, G.711Mu, G.726, AAC, G.723
SD cardyes
SD card capacityMicro SD up to 256 GB

Network features

EthernetRJ-45 (10/100 Base-T)
Mobile appAndroid, iOS
Network protocolsIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
CompatibilityONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
Max. number of users20
Streaming methodUnicast / Multicast
Web browser live viewIE, Chrome, Firefox, Safari
Management softwareSmart PSS, DSS, DMSS
Compatible accessoriesPFA123, PFA137, PFA200W, PFB203W, PFB200C, PFA152-E, PFA106, PFB220C

Power supply

Power supplyDC 12V (±30%), PoE (802.3af) (Class 0)
Power consumption< 4.4W

Operating conditions

Operating temperature-30°C to +50°C
Operating humidity< 95% RH
Storage temperature-30°C to +60°C
Protection ratingIP67
Vandal resistance ratingIK10

Construction

MaterialMetal
DimensionsØ122 mm x 89 mm
Net weight0.46 kg
Gross weight0.62 kg
