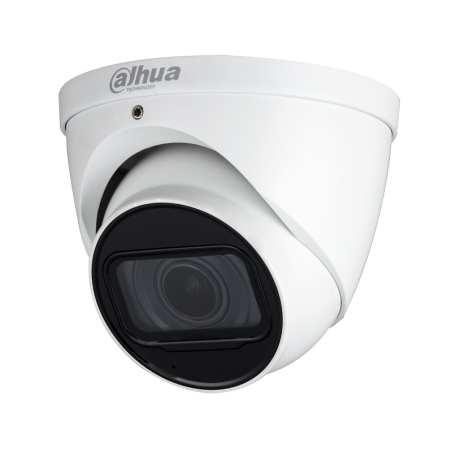

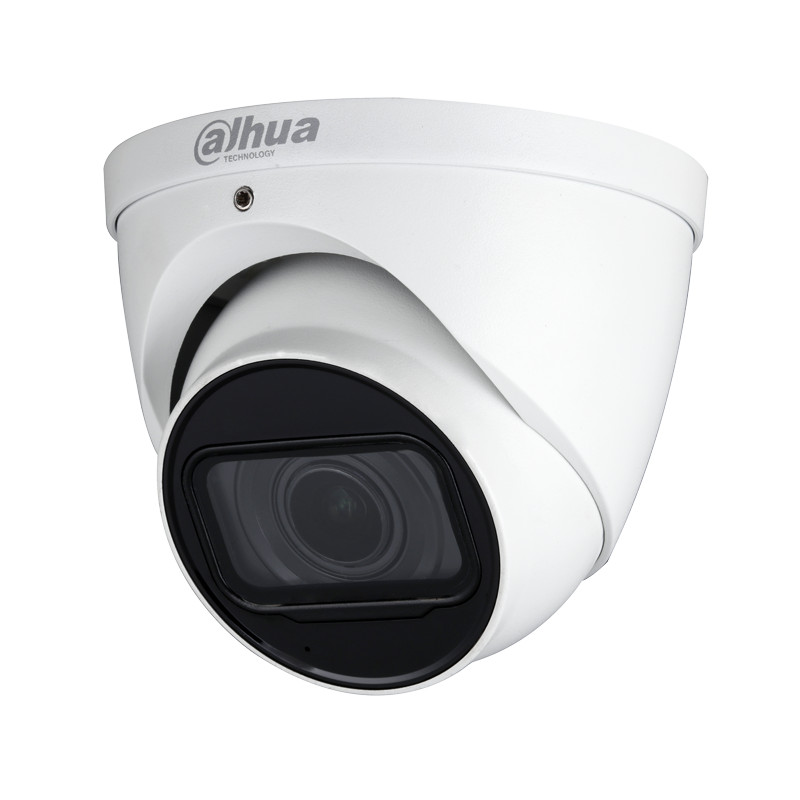

Analog camera Dahua HAC-HDW1231T-Z-A-2712
€85.68
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Eyeball |
| Series | Lite |
| Color | White |
| Image sensor | 1/2.8” 2 Megapixel Progressive CMOS |
| Resolution | 1080p (1920 × 1080) |
| Effective pixels | 2 |
| Scanning system | Progressive |
| Electronic shutter speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum illumination | 0.002lux/F1.5, 30IRE, 0Lux IR on |
| Day/night modes | Auto (ICR) |
| IR illumination up to | 60 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 2 |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 65dB |
| Housing movement | 0° - 360° (pan), 0° - 78° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Varifocal |
| Focal length | 2.7 mm to 12 mm |
| Mounting type | Ø14 |
| Max. aperture | F1.5 |
| Field of view | 33°–102° (H) |
| Iris Type | Fixed aperture |
| Focus control | Auto |
| Minimum focus distance | 0.5 m |
Video
| Frames per second | CVI: PAL: 1080P@25fps; NTSC: 1080P@30fps; AHD: PAL: 1080P@25fps; NTSC: 1080P@30fps; TVI: PAL: 1080P@25fps; NTSC: 1080P@30fps; CVBS: PAL: 960×576H; NTSC: 960×480H; |
| BLC | BLC / HLC / WDR |
| WDR | 130dB |
| White balance | Auto; Area WB |
| Gain Control | Auto / manual |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Mirror image | Yes |
| Privacy masks | On/off (8 zones, rectangle) |
Certification
| Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Additional ports
| Video port | CVI / TVI / AHD / CVBS video output selectable over one BNC port |
| Built-in microphone | yes |
Network features
| Compatible accessories | PFB205W, PFA130-E, PFA137, PFA152-E, PFA106, PFB220C |
Power supply
| Power supply | 12V ±30% DC |
| Power consumption | Max. 6.4 W (12V DC, IR on) |
Operating conditions
| Operating temperature | -30°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -30°C to +60°C |
| Protection rating | IP67 |
Construction
| Material | Metal |
| Dimensions | Ø122 mm x 104.8 mm |
| Net weight | 0.58 kg |
| Gross weight | 0.74 kg |
