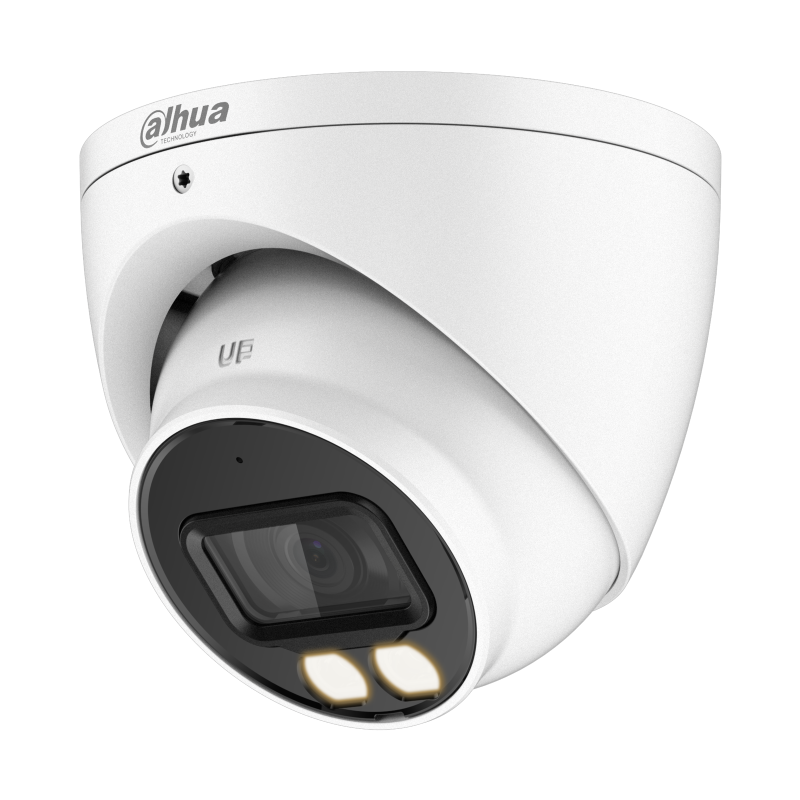

Analog camera Dahua HAC-HDW1200T-IL-A-0280B-S6
€45.90
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Eyeball |
| Series | Lite |
| Color | White |
| Image sensor | 2 Megapixel Progressive CMOS |
| Resolution | 1080p (1920 × 1080) |
| Effective pixels | 2 |
| Scanning system | Progressive |
| Electronic shutter speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 40 |
| IR On/Off Control | Auto |
| IR LEDs | 2 |
| Fill light (white light) distance up to | 40 m |
| Fill light on/off | Automatic |
| Number of fill LED lights | 2 |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 65dB |
| Housing movement | 0° - 360° (pan), 0° - 78° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 2.8 mm |
| Mounting type | M12 |
| Max. aperture | F2.0 |
| Field of view | 102° (H) |
| Iris Type | Fixed aperture |
| Minimum focus distance | 0.5 m |
Video
| Frames per second | CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White balance | Auto; Area WB |
| Gain Control | Auto |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Mirror image | Yes |
| Privacy masks | On/off (8 zones, rectangle) |
Perimeter protection
| AI features | Smart Dual Illuminators, Privacy masking |
Certification
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
Additional ports
| Audio input | 1 |
| Video port | CVI / TVI / AHD / CVBS video output selectable over one BNC port |
Network features
| Compatible accessories | PFA130-E, PFB204W, PFA152-E, PFA106, PFB220C |
Power supply
| Power supply | 12V DC ±30% |
| Power consumption | Max. 4.1W (12V DC, IR on) |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH (non-condensing) |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
Construction
| Material | Metal |
| Dimensions | Ø106 mm x 99.2 mm |
| Net weight | 0.45 kg |
| Gross weight | 0.58 kg |
