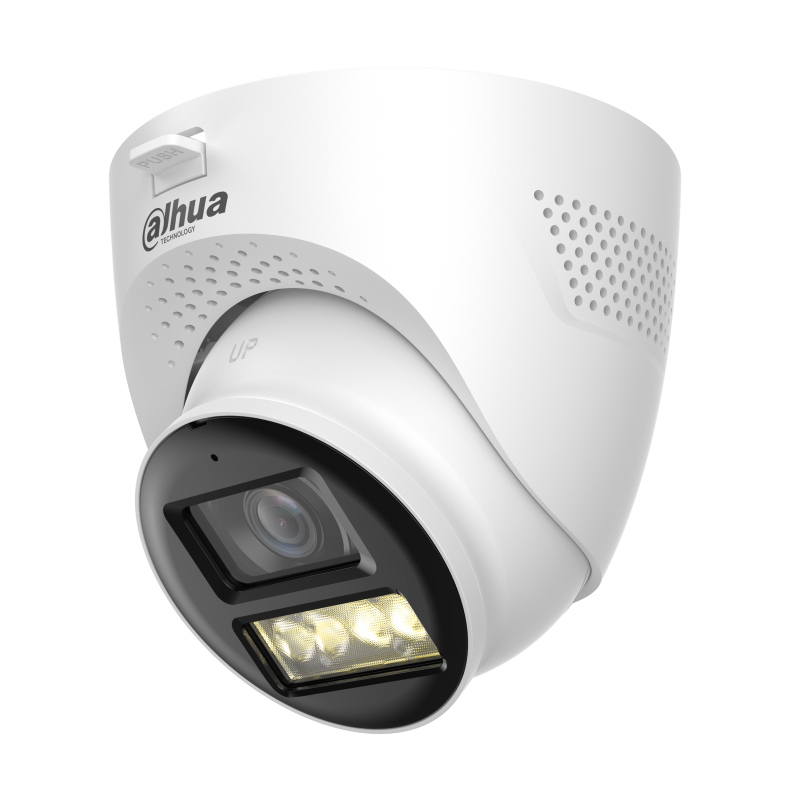

Analog camera Dahua HAC-HDW1200TQ-IL-T-0280B-DIP
€40.80
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Eyeball |
| Series | Lite |
| Color | White |
| Image sensor | 2 Megapixel Progressive CMOS |
| Resolution | 1080p (1920 × 1080) |
| Effective pixels | 2 |
| Scanning system | Progressive |
| Electronic shutter speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 40 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 4 |
| Fill light (white light) distance up to | 40 m |
| Fill light on/off | Auto/manual |
| Number of fill LED lights | 4 |
Camera
| Signal-to-noise ratio | > 65dB |
| Housing movement | 0° - 360° (pan), 0° - 78° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 2.8 mm |
| Mounting type | M12 |
| Max. aperture | F2.0 |
| Field of view | 111.3° (H) |
| Minimum focus distance | 0.5 m |
Video
| Frames per second | CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | DWDR |
| White balance | Auto |
| Gain Control | Auto / manual |
| Smart illumination | Yes |
| Mirror image | Yes |
Perimeter protection
| AI features | Smart Dual Illuminators |
Certification
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 |
Additional ports
| Video port | CVI/TVI/AHD/CVBS video output selectable over one BNC port (DIP switch) |
| Two-way audio | Yes |
| Built-in microphone | yes |
| Built-in speaker | yes |
Network features
| Compatible accessories | PFB2203W, PFA13G, PFA109, PFB305W, PFA150, PFA152-E, PFA151, PFB220C |
Power supply
| Power supply | 12 VDC (±30%) |
| Power consumption | Max. 9.37 W |
Operating conditions
| Operating temperature | -40°C to +60°C |
| Operating humidity | < 95% RH (non-condensation) |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
Construction
| Material | Metal + plastic |
| Dimensions | Ø109.9 mm × 105.9 mm |
| Net weight | 0.32 kg |
| Gross weight | 0.44 kg |
