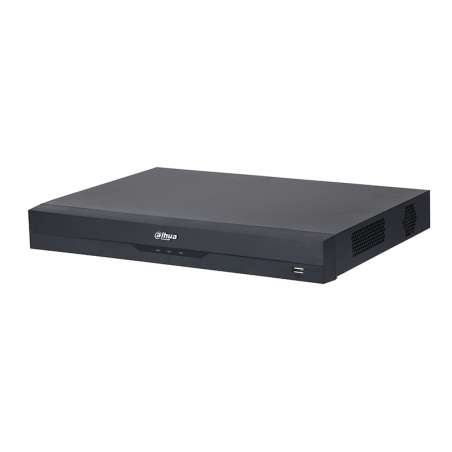

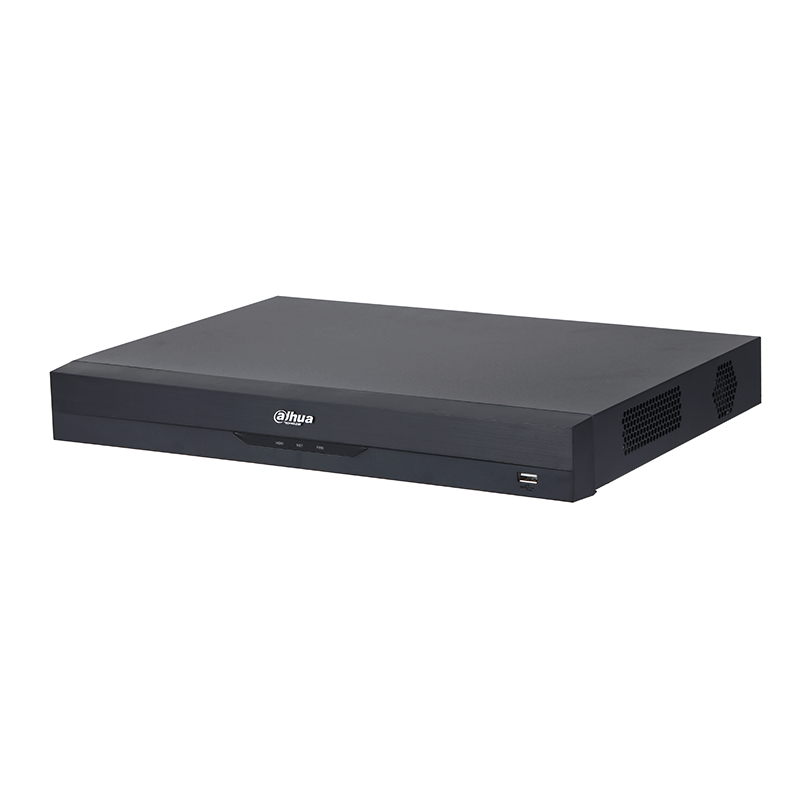

16-channel XVR recorder Dahua XVR5216A-4KL-I3
€535.50
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizSense |
| Processor | Built-in |
| Operating system | Embedded LINUX |
| Analog camera input | 16 channels, BNC |
| IP camera input | 16+16 channels |
| Supports HDCVI cameras | 4K@25/30 fps; 6 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps |
| AHD cameras | 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps |
| TVI cameras | 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps |
| Max. camera resolution | 8 MP |
| Storage | 2 SATA ports, up to 16TB |
Video
| Frames per second | Main stream: 4K@(1fps-7fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@(1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps); Sub stream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30fps) |
| Video compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Bandwidth | 128 Mbps incoming |
| Bitrate | 32 kbps–6144 kbps |
| Recording mode | Main, motion detection; smart; alarm; POS |
| Recording playback | 1/4/9/16 |
| Playback features | Instant playback, general playback, event playback, tag playback, smart playback (face and motion recognition) |
| Backup | USB device / network |
Perimeter protection
| Performance | Advanced mode: 2 channels, 10 IVS per channel; General mode: 8 channels, 10 IVS per channel |
| AI features | Perimeter protection, Face detection, Face recognition, SMD Plus (human/vehicle detection) |
| Perimeter protection by recorder | Advanced mode: 2 channels, 10 IVS per channel; General mode: 8 channels, 10 IVS per channel |
| Face recognition by recorder | 2 |
Face recognition
| Face recognition | yes |
| Performance | 2 channels |
| Database management | Up to 10 databases with a total of 20,000 face images. Name, gender, birthday, address etc. can be added to each face image. Countries and regions can be added for each. |
Smart features
| Motion detection | yes |
| Face recognition | yes |
| Smart motion detection | yes |
| Enhanced smart motion detection | 16 channels |
| Technology | Face recognition |
| Alarm signal | Motion detection, video loss, tampering and local alarm |
Certification
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
| Third-party compatible | ONVIF; Panasonic; Sony; Axis; Arecont; Samsung |
Additional ports
| Audio input | 4-channel RCA, 16-channel BNC (coaxial audio) |
| Audio output | 1 (RCA port) |
| Alarm input/output | 16/3 |
| Video port | 1 x HDMI, 1 x VGA |
| USB | 1 front USB 2.0 port, 1 rear USB 3.0 port |
| RS485 | 1 port, for PTZ control |
| Video port resolution | HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen video output | With IP extension mode off: 1/4/8/9/16; With IP extension mode on: 1/4/8/9/16/25/36 |
| Two-way audio | Yes |
| Audio compression | G.711A, G.711U, PCM |
| Audio sample rate | 8KHz, 16 bit per channel |
| Audio bitrate | 64 Kbps per channel |
Network features
| Ethernet | 1 RJ-45 Port (10/100/1000Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Compatibility | ONVIF 21.12; CGI |
| Web browser live view | Chrome; IE9 or later; Firefox |
Power supply
| Power supply | DC 12V/5A |
| Power consumption | < 15W (without HDD) |
Operating conditions
| Operating temperature | -10°C to +55°C |
| Operating humidity | 10% to 90% RH |
Construction
| Dimensions | 375.0 mm × 289.4 mm × 53.0 mm |
| Net weight | 1.9 kg |
| Gross weight | 3.2 kg |
