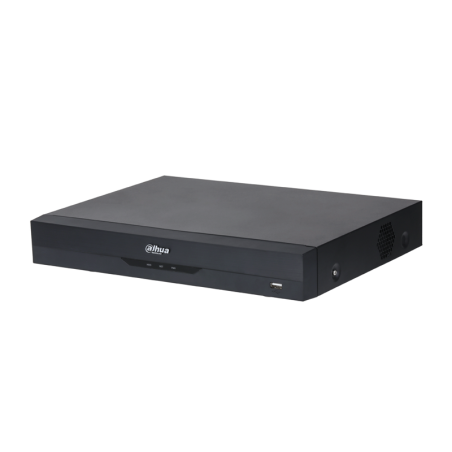

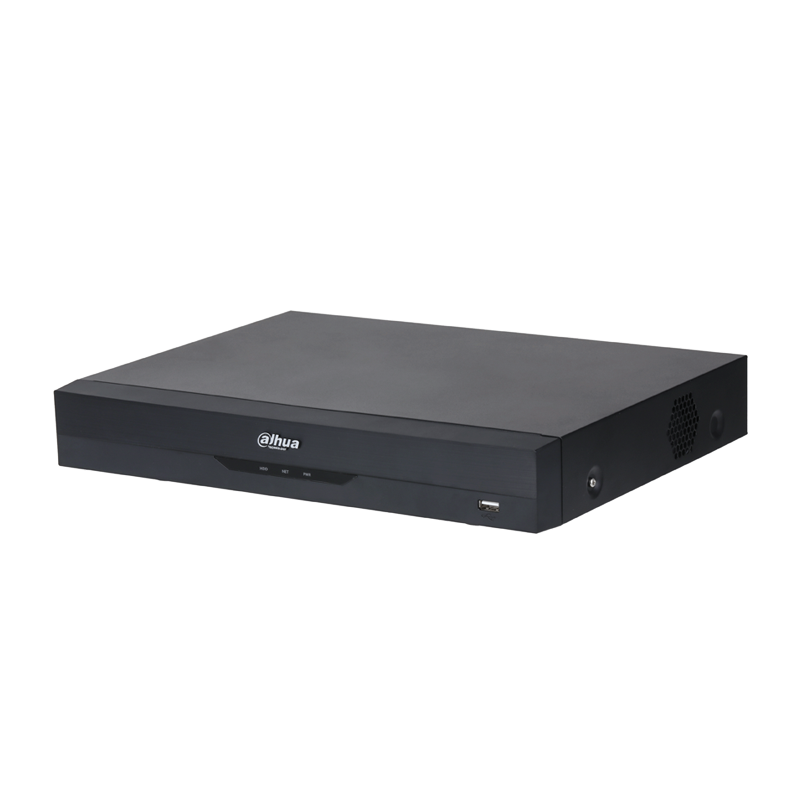

16-channel XVR recorder Dahua XVR5116H-4KL-I3
€443.70
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizSense |
| Processor | Built-in |
| Operating system | Embedded LINUX |
| Analog camera input | 16 channels, BNC |
| IP camera input | 16+16 channels |
| Supports HDCVI cameras | 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD cameras | 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps |
| TVI cameras | 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps |
| CVBS cameras | PAL/NTSC |
| Resolution | 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 720P |
| Max. camera resolution | 8 MP |
| Storage | 1 SATA port, up to 16TB |
Video
| Frames per second | PAL: 1 fps–25 fps. NTSC: 1 fps–30 fps. |
| Recording | All channel 4K@(1-7 fps); 6MP@ (1-10 fps); 5MP@ (1-12 fps); 4K-N/4 MP/3 MP@ (1-15 fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps); Sub stream: 960H@ (1 fps–15 fps); D1/CIF@ (1 fps–25/30 fps) |
| Video compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Streaming capability | 2 streams |
| Bandwidth | 128 Mbps incoming |
| Bitrate | 32 kbps–6144 kbps |
| Recording mode | Main, motion detection; smart; alarm; POS |
| Recording playback | With AI functions (IVS, FACE) disabled: 1/4/9/16; With AI functions (IVS, FACE) enabled: 1/4/9 |
| Playback features | Instant playback, general playback, event playback, tag playback, smart playback (face and motion recognition) |
| Backup | USB device |
Perimeter protection
| Performance | 2 channels, 10 IVS rules each |
| AI features | SMD Plus (human/vehicle detection), Perimeter protection, Face detection, Face recognition |
| Perimeter protection by recorder | 2 channels, 10 IVS rules per channel |
| Face recognition by recorder | 2 |
Face recognition
| Face recognition | yes |
| Performance | 2 channels |
| AI (Artificial Intelligence) search | Up to 10 face databases with 20,000 images |
Smart features
| Face recognition | yes |
| Smart motion detection | yes |
| Enhanced smart motion detection | 16 channels: SMD Plus secondary filtering for humans and motor vehicles, reducing false alarms caused by leaves, rain and changing light conditions, secondary filtering for humans and motor vehicles |
| Alarm signal | Motion detection, video loss, tampering and local alarm |
Certification
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
| Third-party compatible | Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung Compression Standard |
Additional ports
| Audio input | 1-channel RCA (external) 16-channel BNC (coaxial audio) |
| Audio output | 1 (RCA port) |
| Video port | 1 x HDMI, 1 x VGA |
| USB | 2 USB 2.0 |
| RS485 | 1 |
| Video port resolution | HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen video output | With IP extension mode off: 1/4/8/9/16; With IP extension mode on: 1/4/8/9/16/25/36 |
| Two-way audio | Yes |
| Audio compression | G.711A, G.711U, PCM |
| Audio sample rate | 8KHz, 16 bit per channel |
| Audio bitrate | 64 Kbps per channel |
Network features
| Ethernet | 1 RJ-45 Port (10/100/1000Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Compatibility | ONVIF 21.06, CGI |
| Web browser live view | Chrome; IE9 or later; Firefox |
Power supply
| Power supply | DC 12V/3A |
| Power consumption | < 15W |
Operating conditions
| Operating temperature | -10°C to +55°C |
| Operating humidity | 10% to 90% RH |
Construction
| Dimensions | 325.0 mm × 256.6 mm × 55.0 mm |
| Net weight | 1.23 kg |
| Gross weight | 2.11 kg |
