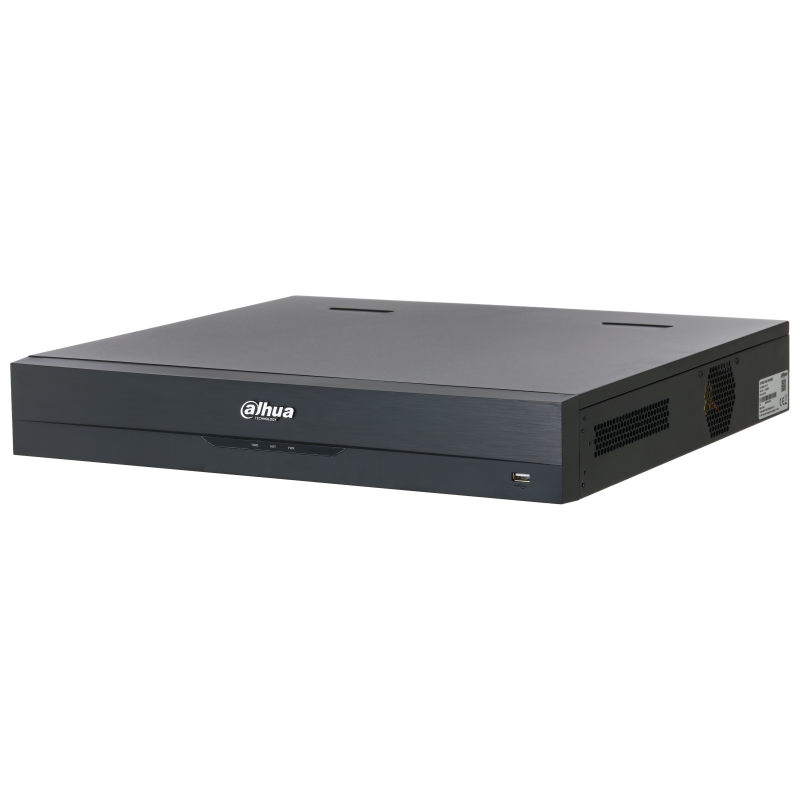

32-channel NVR recorder Dahua NVR5432-EI2
€905.76
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizSense |
| Color | Black |
| Processor | Built-in |
| Operating system | Embedded LINUX |
| IP camera input | 32 channels |
| Max. camera resolution | 32 MP |
| Storage | 4 SATA III ports, up to 20 TB per HDD, 1 eSATA |
Video
| Video compression | H.264, H.265, MJPEG |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Bandwidth | AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing; AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Decoding Capacity | AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 5-channel 16 MP@30 fps; 6-channel 12 MP@30 fps; 10-channel 8 MP@30 fps; 13-channel 6 MP@30 fps; 16-channel 5 MP@30 fps; 20-channel 4 MP@30 fps; 32-channel 1080p@30 fps AI enabled: 1-channel 32 M |
| Recording mode | Main, motion detection; smart; alarm; POS |
| Recording playback | Up to 16 channels |
| Playback features | Instant playback, general playback, event playback, target video, video clip, tag playback, smart playback (face and motion detection) |
| Backup | USB device / network |
Perimeter protection
| AI features | Face detection, Face recognition, Metadata, Intrusion, Perimeter protection, Line crossing, SMD Plus (human/vehicle detection), Stereo behavior analytics, People counting, ANPR, Heat map, PPE Detection, AcuPick, Smart Sound Detection |
| Perimeter protection by camera | 32 channels |
| Perimeter protection by recorder | 8 |
| SMD Plus by camera | 32 channels |
| SMD by recorder | 16 channels |
| Face recognition by camera | 32 channels |
| Face recognition by recorder | 24-channel FD (by camera) + FR (by recorder), image stream: 24 face images/sec., 4-channel FD (by recorder) + FR (by recorder), video stream: 24 face images/sec. |
| Face detection by camera | 32 channels |
| Face detection by recorder | 4 channels |
| License plate recognition by camera (ANPR) | 32 channels |
| Video metadata by camera | 32 channels |
| Video metadata by recorder | 4 channels |
Smart features
| Motion detection | yes |
| Intelligent video surveillance | Line crossing, Intrusion |
| Smart motion detection | yes |
| Alarm signal | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene change; PIR alarm; thermal alarm |
Certification
| Certifications | CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
| Third-party compatible | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
Additional ports
| Audio input | 1 (RCA port) |
| Audio output | 2 (RCA port) |
| Alarm input/output | 16/6 |
| Video port | 2 x HDMI, 2x VGA |
| USB | 1 front USB 2.0, 2 rear USB 3.0 |
| RS232 | 1 |
| RS485 | 1 |
| Video port resolution | VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 7680×4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen video output | Screen 1: 1/4/8/9/16/25/36; Screen 2: 1/4/8/9/16 |
| Audio compression | G.711a; G.711u; PCM; G726 |
Network features
| Ethernet | 2 RJ-45 Port (10/100/1000Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; FTP; SFTP; DHCP; DNS; SMTP; UPnP; DDNS; SNMP; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI |
| Compatibility | ONVIF 24.12(Profile T; Profile S; Profile G; Profile M); CGI; SDK |
| Web browser live view | Chrome; IE; Safari; Edge; Firefox |
Power supply
| Power supply | 100–240 VAC, 50/60 Hz |
| Power consumption | < 13W (without HDD) |
Operating conditions
| Operating temperature | -10°C to +55°C |
| Operating humidity | 10% to 93% RH (non-condensing) |
| Storage temperature | -20°C to +60°C |
Construction
| Dimensions | 440.0 mm × 415.6 mm × 76.0 mm |
| Net weight | 4.27 kg |
| Gross weight | 6.3 kg |
