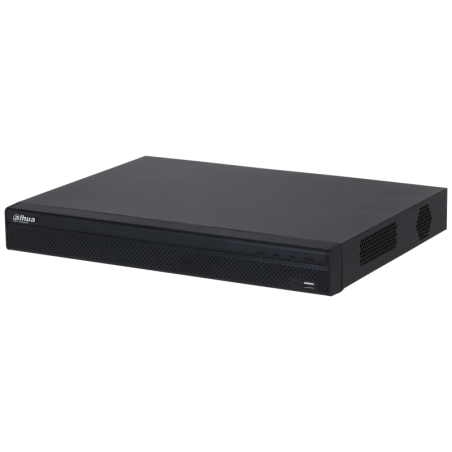

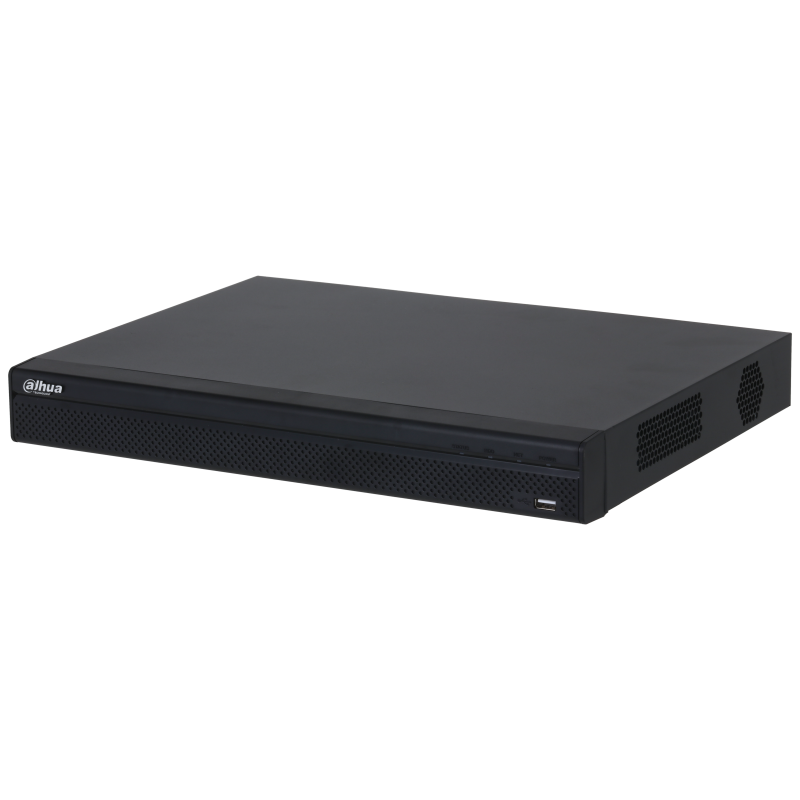

32-channel NVR recorder Dahua NVR4232-4KS3
€339.66
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | Lite |
| Processor | Built-in |
| Operating system | Embedded LINUX |
| IP camera input | 32 channels |
| Resolution | 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF |
| Max. camera resolution | 12 MP |
| Storage | 2 SATA ports, up to 20TB |
Video
| Video compression | H.265/H.264 |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Bandwidth | AI disabled: 160 Mbps incoming, 128 Mbps recording and 60 Mbps outgoing; AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing |
| Decoding Capacity | AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fp |
| Recording mode | Main, motion detection; smart; alarm |
| Recording playback | Up to 16 channels |
| Playback features | Instant playback, general playback, event playback, tag playback, smart playback |
| Backup | USB device / network |
Perimeter protection
| AI features | Face detection, Face recognition, Perimeter protection, SMD Plus (human/vehicle detection), People counting, Stereo behavior analytics, Heat map, E-PTZ |
| Perimeter protection by camera | 6 channels |
| SMD Plus by camera | 6 channels |
| SMD by recorder | 4 channels |
| Face recognition by camera | 6 channels |
| Face detection by camera | 6 channels |
Smart features
| Smart motion detection | yes |
| Alarm signal | Motion detection, masking, video loss, scene change, PIR alarm, IPC alarm |
Certification
| Certifications | CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
| Third-party compatible | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
Additional ports
| Audio input | 1 (RCA port) |
| Audio output | 1 (RCA port) |
| Alarm input/output | 4/2 |
| Video port | 1 x HDMI, 1 x VGA |
| USB | 1 x USB 2.0 rear, 1 x USB 2.0 front |
| Multi-screen video output | AI disabled: Main screen: 1/4/8/9/16/25/36, Second screen: 1/4/8/9/16; AI enabled: Main screen: 1/4/8/9/16, Second screen: 1/4/8/9/16 |
| Audio compression | G.711a; G.711u; PCM; G726 |
Network features
| Ethernet | 1 RJ-45 Port (10/100/1000Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Compatibility | ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK |
| Web browser live view | IE, Chrome, Firefox, Safari |
Power supply
| Power supply | DC 12V/4A |
| Power consumption | < 10W (without HDD) |
Operating conditions
| Operating temperature | -10°C to +55°C |
| Operating humidity | 10% to 93% RH (non-condensing) |
| Storage temperature | -20°C to +60°C |
Construction
| Dimensions | 375 mm × 282.4 mm × 53 mm |
| Net weight | 1.49 kg |
| Gross weight | 2.77 kg |
