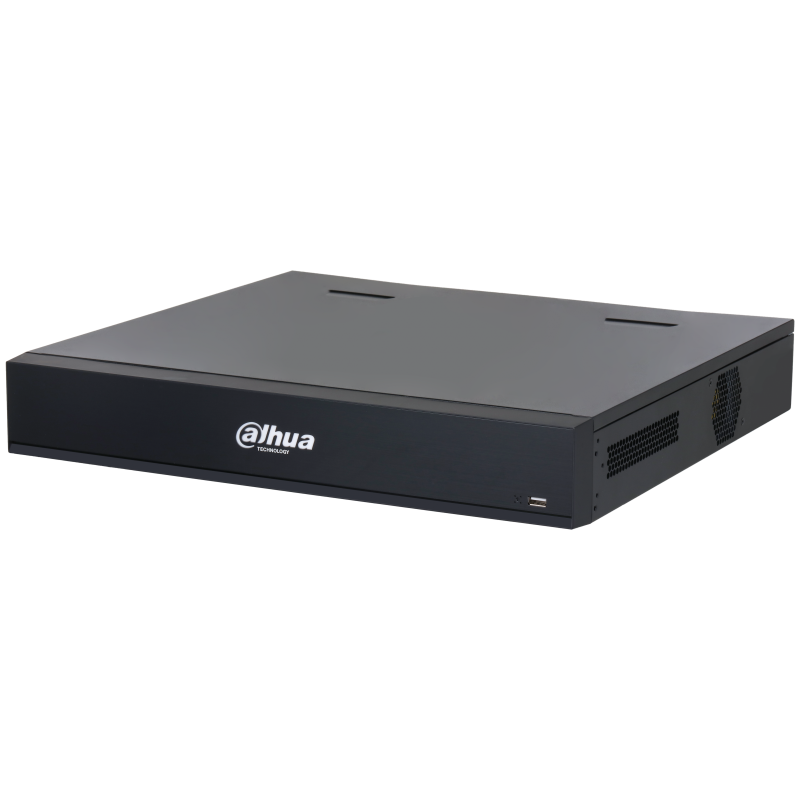

32-channel NVR recorder Dahua NVR5432-XI
€1,562.64
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Series | WizMind |
| Color | Black |
| Processor | Built-in |
| Operating system | Embedded LINUX |
| IP camera input | 32 channels |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF |
| Max. camera resolution | 32 MP |
| Storage | 4 SATA III ports, up to 20 TB per HDD, 1 eSATA |
Video
| Video compression | H.264, H.265, MJPEG |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Bandwidth | AI disabled: 512 Mbps incoming, 512 Mbps recording and 512 Mbps outgoing; AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Decoding Capacity | AI disabled: 2-channel 32 MP@30fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps AI enabled: 1-channel 32 MP |
| Recording playback | Up to 16 channels |
| Playback features | Instant playback, general playback, event playback, tag playback, smart playback |
| Backup | USB device / network |
Perimeter protection
| AI features | AcuPick, E-PTZ, Face detection, Face recognition, Heat map, License plate recognition, People counting, Perimeter protection, SMD Plus (human/vehicle detection), Stereo behavior analytics |
| Perimeter protection by camera | 32 channels |
| Perimeter protection by recorder | 24 |
| Face recognition by camera | 32 channels |
| Face recognition by recorder | 4K sub-screen enabled: 32-channel FD (by camera) + FR (by recorder), image stream: 32 face images/sec, 4-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/sec; 4K sub-screen disabled: 32-channel FD (by camer |
| Face detection by camera | 32 channels |
| Face detection by recorder | 4K sub-screen enabled: 4 channels (up to 12 face images/sec. per channel); 4K sub-screen disabled: 8 channels (up to 12 face images/sec. per channel) |
| License plate recognition by camera (ANPR) | 32 channels |
| Video metadata by camera | 32 channels |
Smart features
| Smart motion detection | yes |
| Alarm signal | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene change; PIR alarm; thermal alarm |
Certification
| Certifications | Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
| Third-party compatible | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
Additional ports
| Audio input | 1 (RCA port) |
| Audio output | 2 (RCA port) |
| Alarm input/output | 16/6 |
| Video port | 2 x HDMI, 2x VGA |
| USB | 1 front USB 2.0, 2 rear USB 3.0 |
| RS232 | 1 |
| RS485 | 1 |
| Video port resolution | VGA:1920 × 1080, 1280 × 1024, 1280 × 720 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen video output | Screen 1: 1/4/8/9/16/25/36; Screen 2: 1/4/8/9/16 |
| Audio compression | G.711a; G.711u; PCM; G726 |
Network features
| Ethernet | 2 RJ-45 Port (10/100/1000Mbps) |
| Mobile app | Android, iOS |
| Network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI |
| Compatibility | ONVIF 23.06(Profile T; Profile S; Profile G); CGI; SDK |
| Web browser live view | Chrome; IE9 or later; Firefox |
Power supply
| Power supply | 100–240 VAC, 50-60 Hz |
| Power consumption | < 13W (without HDD) |
Operating conditions
| Operating temperature | -10°C to +55°C |
| Operating humidity | 10% to 93% RH (non-condensing) |
| Storage temperature | -20°C to +60°C |
Construction
| Dimensions | 440.0 mm × 412.7 mm x 76.0 mm |
| Net weight | 4.52 kg |
| Gross weight | 6.59 kg |
