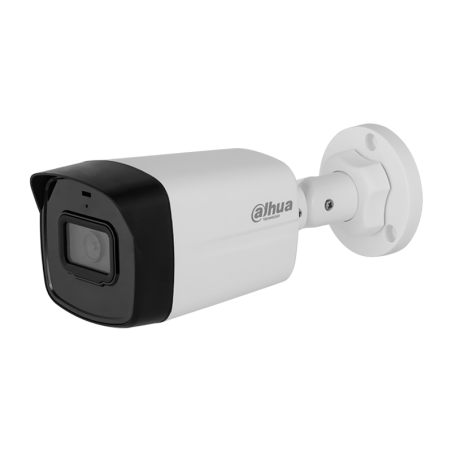

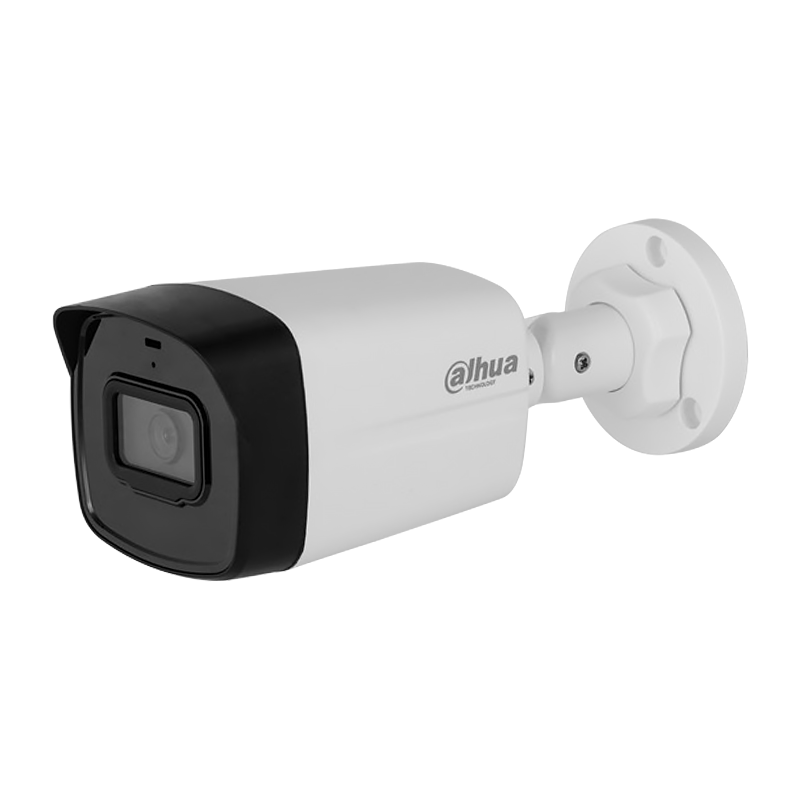

IP camera Dahua IPC-B1E20-A-0360B
€47.94
Tax included
2MP camera with 1/3.2" CMOS sensor and 3.6 mm fixed lens (79° angle). Supports 1080p resolution, built-in microphone and IR illumination up to 30 m. AI features: privacy masking and ROI. H.265/H.264/MJPEG compression, recording to FTP. IP67 protection, compatible with PFA130-E and PFA157.
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
2MP camera with 1/3.2" CMOS sensor and 3.6 mm fixed lens (79° angle). Supports 1080p resolution, built-in microphone and IR illumination up to 30 m. AI features: privacy masking and ROI. H.265/H.264/MJPEG compression, recording to FTP. IP67 protection, compatible with PFA130-E and PFA157.
General
| Type | Bullet |
| Series | ECO |
| Color | White |
| Image sensor | 1/3.2” 2 Megapixel progressive CMOS |
| RAM/ROM | 64 MB/16 MB |
| Resolution | 1080p (1920 × 1080) |
| Effective pixels | 2 |
| Scanning system | Progressive |
| Electronic shutter speed | Auto/ Manual 1/3 s–1/100000 s |
| Minimum illumination | 0.01 lux@F2.2 (Color, 30 IRE) 0.005 lux@F2.2 (B/W,30 IRE) 0 lux (Illuminator on) |
| Day/night modes | Auto (ICR) / Color / B&W |
| IR illumination up to | 30 |
| IR On/Off Control | Manual/Auto |
| IR LEDs | 2 |
| Storage | FTP |
Camera
| IRE | 30, 0Lux IR on |
| Signal-to-noise ratio | > 56dB |
| Housing movement | 0° - 360° (pan), 0° - 90° (tilt) and 0° - 360° (rotation) |
Lens
| Lens | Fixed |
| Focal length | 3.6 mm |
| Mounting type | M12 |
| Max. aperture | F2.2 |
| Field of view | 79° (H) |
| Iris Type | Fixed aperture |
| Minimum focus distance | 0.8 m |
Video
| Frames per second | Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Video compression | H.265; H.264; H.264B; MJPEG (sub stream only) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Streaming capability | 2 streams |
| Bandwidth | 24 Mbps incoming |
| Bitrate | H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps |
| Bitrate control | CBR/VBR |
| BLC | BLC / HLC / WDR |
| WDR | DWDR |
| White balance | Auto/natural/street light/outdoor/manual/custom |
| Gain Control | Auto |
| Noise reduction | 3D NR |
| Smart illumination | Yes |
| Image rotation | 0° / 180° |
| Mirror image | Yes |
| Privacy masks | 4 zones |
| Region of interest | yes |
Perimeter protection
| AI features | Privacy masking, ROI (Region of interest) |
Smart features
| Motion detection | yes |
| Alarm signal | Network disconnection; IP conflict; illegal access; motion detection; audio detection; video tampering; security exception |
Additional ports
| Audio compression | G.711a; G.711Mu; G.726; PCM |
| Built-in microphone | yes |
| SD card | no |
Network features
| Ethernet | 1 RJ-45 Ports (10/100 Mbps) |
| Mobile app | Android, iOS |
| Network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; P2P |
| Compatibility | ONVIF (Profile S; Profile T); CGI |
| Max. number of users | 6 |
| Web browser live view | Chrome; IE9 or later; Firefox |
| Management software | Smart PSS Lite; DSS; DMSS |
| Compatible accessories | PFA130-E, PFA157 |
Power supply
| Power supply | 12V DC/PoE |
| Power consumption | Max. 2.8 W (12 VDC); 4 W (PoE) |
Operating conditions
| Operating temperature | -40°C to +50°C |
| Operating humidity | < 95% RH |
| Storage temperature | -40°C to +60°C |
| Protection rating | IP67 |
Construction
| Material | Plastic |
| Dimensions | 198.9 mm x 80.2 mm x 76.2 mm |
| Net weight | 0.25 kg |
| Gross weight | 0.37 kg |
