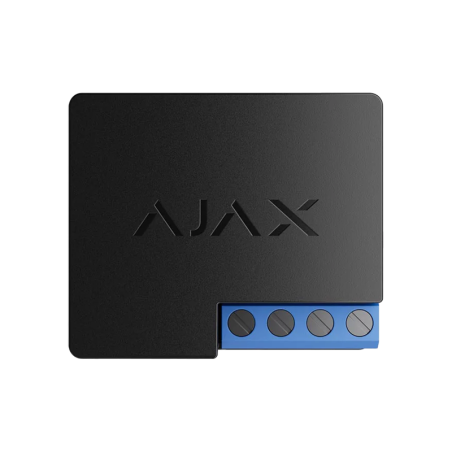

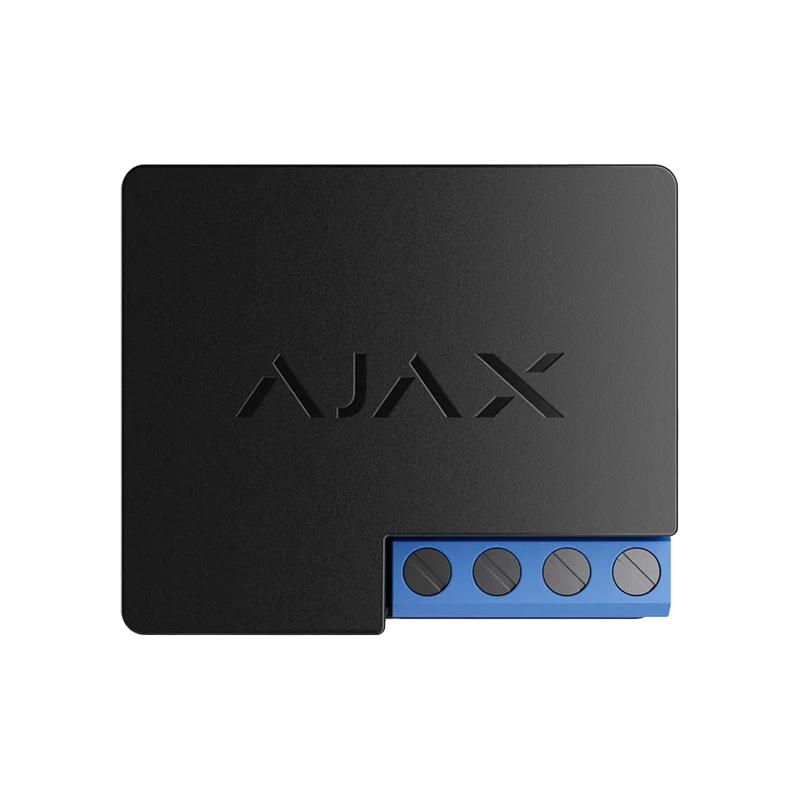

Electromagnetic relay Ajax Relay
€41.82
Tax included
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Relays |
Features
| Protections | Anti-fraud protection, jamming detection |
| Remote configuration | yes |
| Mobile app | yes |
Wireless network
| Carrier frequency | Depends on sales region |
| Max. communication distance | Up to 1000 m in open space |
| Communication method | Two-way |
| Encryption mode | AES |
Technical
| Power supply | 7 - 24V DC |
| Operating temperature | -20 °C to +64 °C |
| Operating humidity | < 85% |
| Protection rating | IP20 |
| Dimensions | 39 mm × 33 mm × 18 mm |
| Net weight | 0.025 kg |
Specification
| Sampling period | 12 ~ 300 sec |
| Contact state | NO, NC |
| Adjustable pulse duration | 1–255 sec |
| Service life | 200,000 switching cycles |
| Max. load | 5A, 24 V DC / 13A, 230V AC |
