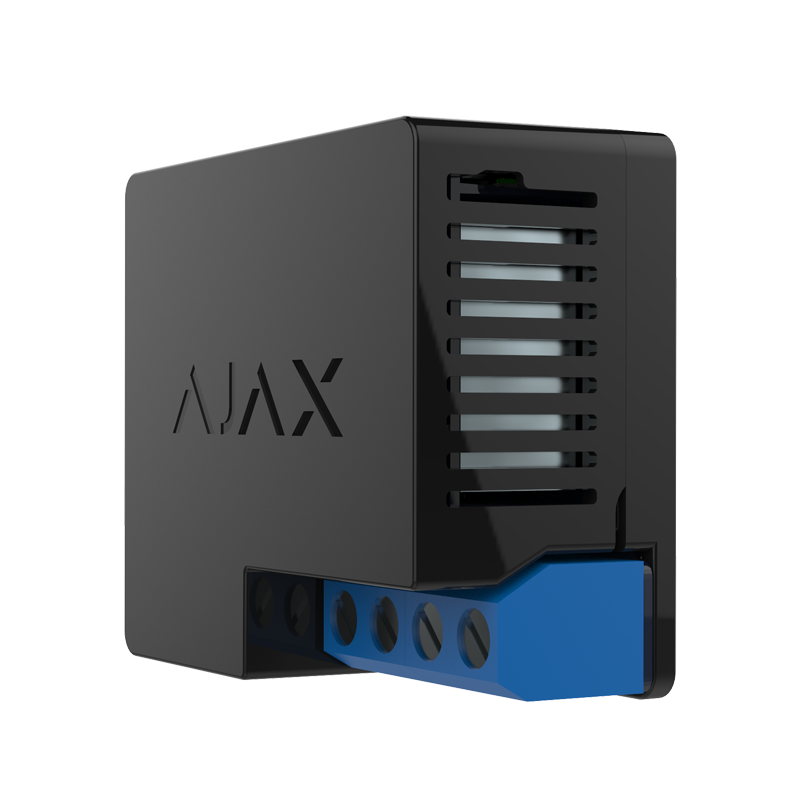

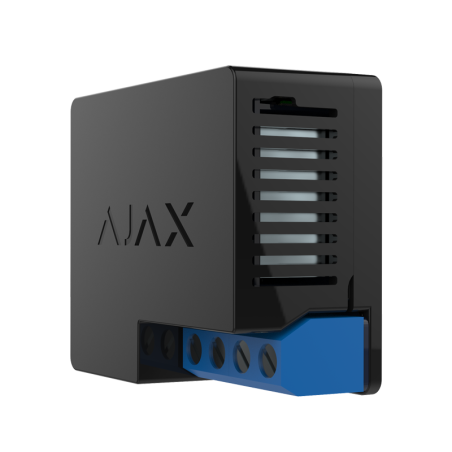

Wireless power relay 110+230 V Ajax Wall Switch - black
€41.82
Tax included
The Ajax Wall Switch is a dry-contact relay for remote control of appliances powered by DC 12-24V. The device connects directly to AC 110V/230V mains and closes/opens the circuit on command. The relay handles loads up to 3 kW, enough to connect very power-hungry devices. It shows energy consumption in the Ajax app. Full dimensions and specifications of the model are in the table in the "Technical information" tab/section.
Secure payments
SSL-secured connection, cash on delivery payment.
Fast delivery
Delivery nationwide – arranged after the order.
Returns
14-day right of withdrawal under consumer protection law.
General
| Type | Relays |
Features
| Protections | Anti-fraud protection, jamming detection |
| Remote configuration | yes |
| Mobile app | yes |
| Test mode | yes |
Wireless network
| Carrier frequency | Depends on sales region |
| Max. communication distance | Up to 1000 m in open space |
| Communication method | Two-way |
| Encryption mode | AES |
Technical
| Power supply | AC 110 - 230V ±10%, 50/60Hz |
| Operating temperature | 0 °C to +64 °C |
| Operating humidity | < 75% |
| Protection rating | IP20 |
| Dimensions | 39 mm × 33 mm × 18 mm |
| Mounting | In a wall box |
| Net weight | 0.030 kg |
Specification
| Sampling period | 12 ~ 300 sec |
| Contact state | NO, NC |
| Adjustable pulse duration | 1–255 sec |
| Device temperature protection | yes |
| Overload protection | yes |
| Power measurement | yes |
| Service life | 200,000 switching cycles |
| Max. load | 13A |
| Permissible power | For 230 V~ mains: max. — 264 V, min. — 161 V; For 110 V~ mains: max. — 126 V, min. — 77 V |
Alarm
| Alarm reception time | 0.15 sec |
