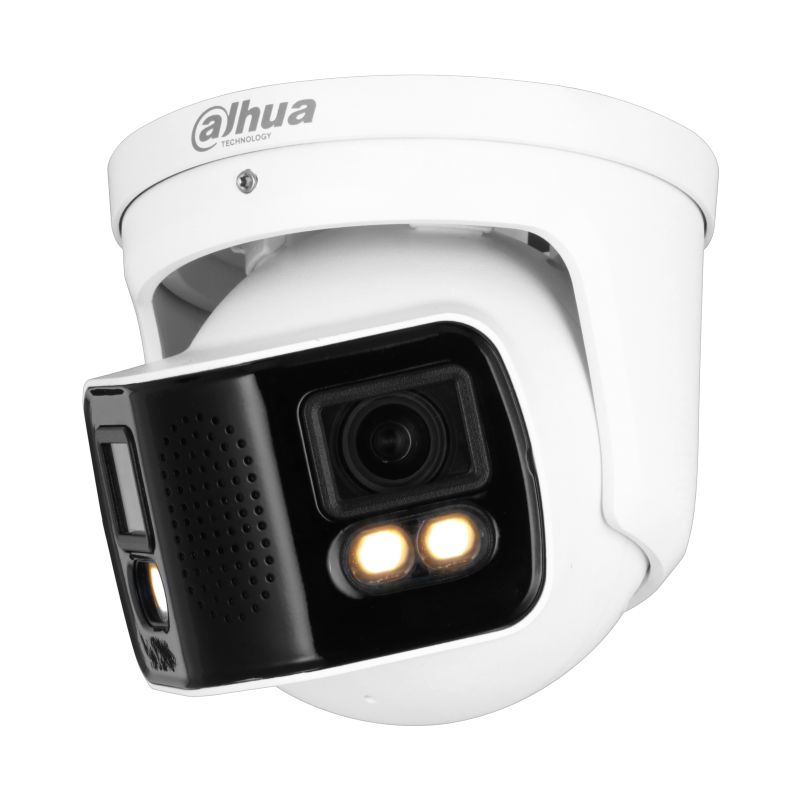

IP camera Dahua IPC-PDW5849-A180-E2-ASTE-0360B

Name: IP camera Dahua IPC-PDW5849-A180-E2-ASTE-0360B
Brand: Dahua
SKU: BIT-1720122_1
Price: 792.54 EUR
Availability: InStock

€792.54

Tax included

Quantity

Last items in stock

Secure payments

SSL-secured connection, cash on delivery payment.

Fast delivery

Delivery nationwide – arranged after the order.

Returns

14-day right of withdrawal under consumer protection law.

Description
Product Details

General

Type	Duo
Series	WizMind
Color	White
Image sensor	2 x 1/1.8" 4 Megapixels Progressive CMOS
RAM/ROM	1 GB/128 MB
Resolution	4K (4096 × 1800)
Effective pixels	4
Scanning system	Progressive
Electronic shutter speed	Auto/ Manual 1/3 s–1/100000 s
Minimum illumination	0.0005 lux@F1.0 (Color, 30 IRE) 0.0002 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on)
Day/night modes	Color / B&W
Fill light (white light) distance up to	40 m
Fill light on/off	Automatic
Number of fill LED lights	4
Storage	FTP; SFTP; Micro SD card (512 GB); NAS

Camera

IRE	30, 0Lux IR on
Signal-to-noise ratio	> 56dB
Housing movement	0° - 360° (pan), 4° - 90° (tilt) and 0° - 360° (rotation)

Lens

Lens	Fixed
Focal length	3.6 mm
Mounting type	M16
Max. aperture	F1.0
Field of view	180°±10° (H)
Iris Type	Fixed aperture
Minimum focus distance	3.6 m

Video

Frames per second	WDR Off: Main stream: 4096 × 1800 @ (1–25 fps) sub stream: 1024 × 452 @ (1–25 fps) third stream: 1920 × 832 @ (1–25 fps) WDR On: Main stream: 4096 × 1800 @ (1–20 fps) sub stream: 1024 × 452 @ (1–20 fps) third stream: 1920 × 832 @ (1–20 fps)
Video compression	H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart Codec	Smart H.265+/ Smart H.264+, AI H.265; AI H.264
Streaming capability	3 streams
Bandwidth	80 Mbps incoming
Bitrate	H.264: 9 kbps–8192 kbps H.265: 9 kbps–8192 kbps
Bitrate control	CBR/VBR
BLC	BLC / HLC / WDR / SSA
WDR	140dB
White balance	Auto/natural/street light/outdoor/manual/custom
Gain Control	Auto
Scene Self-adaptation	Yes
Noise reduction	3D NR
Privacy masks	4 zones
Region of interest	yes
Software defog	yes
Low-light visibility technology	Full-Color
Full-Color	Yes

Perimeter protection

Performance	Line crossing, intrusion, fast moving through zone (all three functions support classification and accurate detection of vehicles and humans); loitering detection, crowd gathering and parking detection in a defined perimeter.
AI features	Defog (electronic fog removal), Abandoned/missing object, E-PTZ, Intrusion, Heat map, People counting, Perimeter protection, Privacy masking, ROI (Region of interest), SMD Plus (human/vehicle detection), Line crossing

Smart features

Motion detection	yes
Full Color technology	yes
Intelligent video surveillance	Line crossing; Intrusion; Abandoned/missing objects
Smart motion detection	yes
Advanced smart features	People counting; Heat map
Alarm signal	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; line crossing; intrusion; fast moving; abandoned object; missing object; detection

Certification

Certifications

CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Additional ports

Audio input	1 (RCA port)
Audio output	1 (RCA port)
Alarm input	1 input: 5mA 3V–5V DC
Alarm output	1 output: 300mA 12V DC
Audio compression	G.711a; G.711Mu; PCM; G.726; G.723
Built-in microphone	yes
SD card	yes
SD card capacity	Micro SD up to 512 GB

Network features

Ethernet	1 RJ-45 Ports (10/100 Mbps)
Mobile app	Android, iOS
Network protocols	IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
Compatibility	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone
Max. number of users	20
Web browser live view	Chrome; IE9 or later; Firefox
Management software	Smart PSS, DSS, DMSS
Compatible accessories	PFA137, PFB203W, PFA152-E, PFA106, PFB220C
